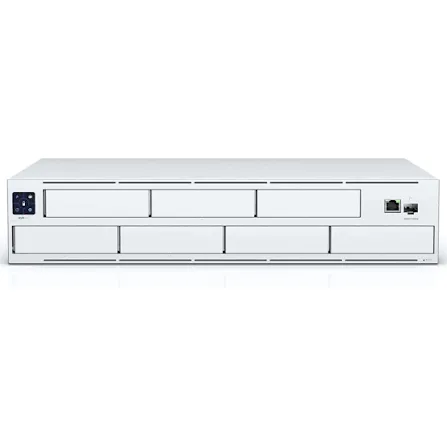

The Ubiquiti UniFi Protect Network Video Recorder Pro (Model: UNVR-Pro) specification description follows:
The Ubiquiti UniFi Protect Network Video Recorder Pro (Model: UNVR-Pro) is an enterprise-grade, high-density network video recorder designed for scalable, multi-camera surveillance deployments across enterprise, industrial, and campus environments. Built to deliver long-term video retention without subscription fees, the appliance supports up to 60 4K Ultra HD cameras or 180 HD cameras, making it an ideal core storage solution for UniFi Protect surveillance infrastructure.
Featuring seven 2.5"/3.5" HDD drive bays with automated RAID 1, RAID 5, or RAID 10 storage redundancy, the UNVR-Pro safeguards continuous video recordings against drive failures. Equipped with dual WAN/LAN uplinks—including a 10G SFP+ optical port and a Gigabit RJ45 Ethernet port—it ensures high-throughput video ingestion and remote streaming. Managed natively via UniFi Protect software, the unit features a 1.3" LCM color touchscreen display for real-time storage telemetry, local system health monitoring, and a UniFi SmartPower DC input connection for power supply redundancy.
Comprehensive Key Features:
- Seven 2.5"/3.5" Drive Bays: Accommodates up to 7 hard drives to provide massive video storage capacity for high-density surveillance setups.
- Automated RAID Data Protection: Supports RAID 1, RAID 5, and RAID 10 configurations to protect critical security footage against single- or multi-drive failures.
- Scalable Camera Density: Supports continuous recording for up to (60) 4K Ultra HD cameras or (180) 1080p HD cameras with zero recurring software licensing or subscription fees.
- High-Speed 10G SFP+ & Gigabit Network Ports: Equipped with (1) 10G SFP+ optical port and (1) 10/100/1000 Mbps RJ45 port for high-bandwidth video backhaul and network isolation.
- Integrated Touchscreen Display: 1.3" LCM color touchscreen display provides instant visual feedback on drive health, network status, and camera connection metrics.
- UniFi SmartPower DC Redundancy: Includes a USP-RPS DC input port to protect against internal AC power supply failure and guarantee continuous recording uptime.
- Seamless UniFi Protect Ecosystem: Configured and managed via UniFi Protect for local storage privacy, AI detection event filtering, and multi-user remote access.
Extended Technical Specifications:
- Hardware & Physical Parameters:
- Model / SKU: UNVR-Pro (UniFi Protect NVR Pro)
- Dimensions: 442.4 x 325 x 87.4 mm (17.42 x 12.80 x 3.44")
- Weight: 9.2 kg (20.28 lb) | With Rackmount Brackets: 9.3 kg (20.50 lb)
- Enclosure Material: SGCC Steel
- Mount Material: SGCC Steel Rack Mount (2U Rackmount Brackets Included)
- Drive Bays: (7) 2.5" / 3.5" SATA HDD / SSD Trays
- Display: 1.3" Color Touchscreen LCM
- System Status LEDs: System Status, Hard Drive Activity / Error LEDs
- Wireless, Networking & Performance Parameters:
- Network Interfaces: (1) 10G SFP+ Port, (1) 10/100/1000 Mbps Gigabit Ethernet RJ45 Port
- Storage Management: Automated RAID 1, RAID 5, RAID 10
- Maximum Camera Capacity: Up to 60 4K Cameras | Up to 180 HD (1080p) Cameras
- Management Interface: UniFi Protect Application (Ethernet / Bluetooth)
- Video Retention Security: On-Premises Encrypted Local Storage
- Electrical & Environmental Parameters:
- Power Method: (1) Universal AC Input 100–240V AC, 2A Max., 50/60 Hz; (1) USP-RPS DC Input 11.5V DC, 13.04A
- Power Supply: Internal AC/DC 160W Power Supply
- Max. Power Consumption: 160W (including HDD drive power draw)
- ESD/EMP Protection: Air: ±12 kV, Contact: ±8 kV
- Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
- Ambient Operating Humidity: 5 to 95% noncondensing
- Regulatory Certifications: CE, FCC, IC
