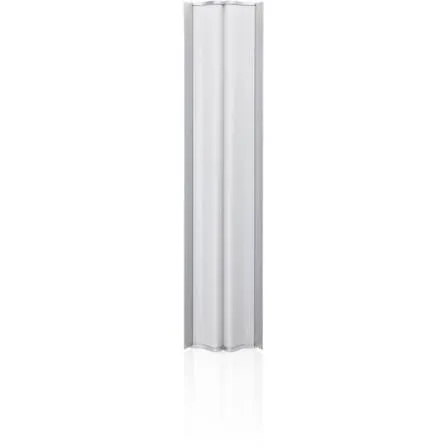

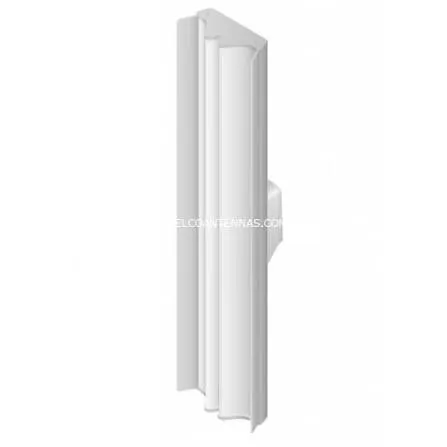

The Ubiquiti airMAX AM-5AC21-60 Sector Antenna is engineered for high-performance Point-to-MultiPoint (PtMP) deployments in demanding 5 GHz wireless networks. Featuring a focused 60-degree beamwidth pattern combined with a 21 dBi gain, this antenna offers optimal RF energy distribution, allowing network administrators to establish high-density base stations with minimal adjacent sector overlap.
Designed specifically to pair with Ubiquiti Rocket5ac radios, the AM-5AC21-60 features a built-in Rocket mount for effortless, tool-less integration. Its advanced radiation pattern provides exceptional front-to-back ratio and superior side-lobe suppression, significantly reducing RF interference in co-located tower environments. Built with durable, weather-resistant materials and heavy-duty pole-mounting hardware, it withstands harsh outdoor conditions while providing stable, high-throughput wireless links for ISPs and enterprise backhauls.
Comprehensive Key Features:
21 dBi High Gain & 60° Coverage: Delivers a tight, efficient sector beam pattern optimized for medium to long-range PtMP client connections.
airMAX ac Technology Integration: Engineered to work seamlessly with Rocket5ac radios for maximum spectral efficiency and data rates.
Advanced Co-Location Noise Isolation: Superior front-to-back ratio and reduced side lobes mitigate RF noise in crowded tower environments.

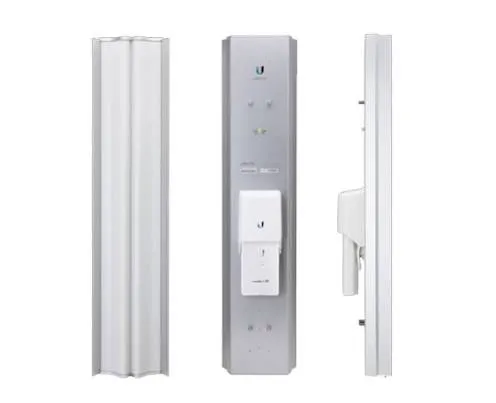

Integrated Rocket Radio Mount: Features a built-in mounting bracket for quick, snap-in installation of RocketM5 or Rocket5ac radios without extra tools.
Weatherproof Construction: Includes protective RF connectors cover and UV-stabilized housing for long-term outdoor durability.
Precision Elevation Alignment: Heavy-duty pole mount kit provides fine elevation adjustment for accurate signal targeting.
Extended Technical Specifications:
Manufacturer / Brand: Ubiquiti Inc.
Model / SKU: AM-5AC21-60 (airMAX sector 5G21-60)
Operating Frequency Range: 5.10 to 5.85 GHz
Antenna Gain: 21 dBi
Horizontal Beamwidth (HPBW): 60° (6 dB)
Vertical Beamwidth (HPBW): 5.5° (3 dB)
Electrical Downtilt: 2°
Polarization: Dual Linear / Slant 45°
Cross-Pol Isolation: 25 dB Min.
Front-to-Back Ratio: 30 dB Min.
VSWR: 1.5 : 1 Max.
RF Connectors: (2) RP-SMA Female (Weatherproof)
Wind Loading: $391\text{ N}$ @ $200\text{ km/h}$ ($88\text{ lbf}$ @ $125\text{ mph}$)
Wind Survivability: $200\text{ km/h}$ ($125\text{ mph}$)
Mounting: Universal Pole Mount Kit Included (Fits poles $38.1\text{ mm}$ to $76.2\text{ mm}$)
The Apple MacBook Pro (Retina, 15-inch, Mid 2017 - A1707) delivers exceptional computing power and ultra-fast storage in a sleek, precision-milled aluminum unibody enclosure. Engineered for creative professionals, developers, and power users, it features a stunning 15.4-inch Retina display with LED backlighting, IPS technology, and P3 wide color gamut support, offering remarkable detail and color accuracy for photos and high-resolution video content.
At its core, this configuration is driven by a high-tier Quad-Core 3.1 GHz Intel Core i7 processor (Kaby Lake) with Turbo Boost speeds reaching up to 4.1 GHz. Equipped with dual graphics processing—Radeon Pro discrete graphics alongside integrated Intel HD Graphics 630—it automatically switches between processors to balance performance and battery efficiency. Packed with 16 GB of 2133 MHz LPDDR3 memory and an ultra-fast 1 TB PCIe-based onboard flash storage module, it delivers fluid multitasking and instant file access. The innovative Touch Bar with integrated Touch ID replaces the traditional function keys with dynamic, context-aware controls for maximum productivity.
Comprehensive Key Features:
Pro-Grade Quad-Core Performance: Powered by a 3.1 GHz Quad-Core Intel Core i7 processor (Turbo Boost up to 4.1 GHz) with 8 MB shared L3 cache.
Brilliant Retina Display with P3 Color: 15.4-inch IPS display featuring 500 nits brightness and P3 wide color gamut for true-to-life visual fidelity.
Interactive Touch Bar & Touch ID: Multi-Touch glass strip providing context-sensitive shortcuts alongside quick, secure Touch ID biometric authentication.
Dual Graphics Architecture: Combines discrete Radeon Pro graphics with integrated Intel HD Graphics 630 for efficient graphic rendering and power optimization.
Massive High-Speed Storage: Includes a large 1 TB PCIe-based onboard SSD delivering read/write speeds up to 3.2 GB/s.
Versatile Thunderbolt 3 Connectivity: Four high-speed USB-C / Thunderbolt 3 ports supporting power charging, DisplayPort output, and data transfers up to 40 Gbps.
Expansive Trackpad & Audio: Oversized Force Touch trackpad paired with high-fidelity stereo speakers featuring wide dynamic range and deep bass.
Extended Technical Specifications:
Model / SKU: MacBook Pro (15-inch, Mid 2017) / Model Identifier: MacBookPro14,3 / Model Number: A1707
Processor: 3.1 GHz Quad-Core Intel Core i7 (7700HQ "Kaby Lake", Turbo Boost up to 4.1 GHz) with 8 MB L3 cache
Graphics:
Discrete Graphics: AMD Radeon Pro 560 with 4 GB of GDDR5 memory (or Radeon Pro 555)
Integrated Graphics: Intel HD Graphics 630
Display: 15.4-inch (diagonal) LED-backlit IPS Retina display (2880 x 1800 native resolution at 220 ppi, 500 nits, P3 color)
Memory: 16 GB of 2133 MHz LPDDR3 onboard memory
Storage: 1 TB PCIe-based onboard flash storage
Wireless & Connectivity:
Wi-Fi: 802.11ac Wi-Fi wireless networking; IEEE 802.11a/b/g/n compatible
Bluetooth: Bluetooth 4.2 wireless technology
I/O Ports:
(4) Thunderbolt 3 (USB-C) ports (Supports Charging, DisplayPort, Thunderbolt 40 Gbps, USB 3.1 Gen 2 up to 10 Gbps)
(1) 3.5 mm headphone jack
Audio & Camera:
Stereo speakers with high dynamic range and 3 microphones
720p FaceTime HD camera
Keyboard & Input: Full-size backlit keyboard with Touch Bar and integrated Touch ID sensor; Force Touch trackpad
Battery & Power: Built-in 76.0-watt-hour lithium-polymer battery; 85W USB-C Power Adapter
