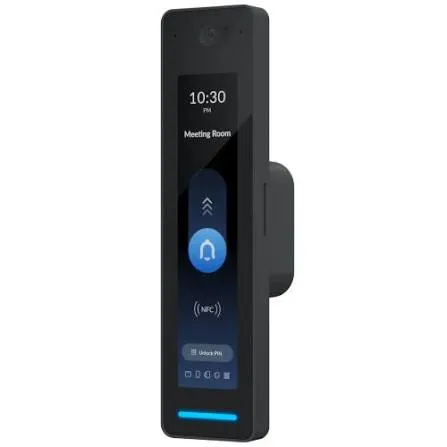

The Ubiquiti UniFi Access Reader G3 Pro Black (Model: UA-G3-PRO-B) is an advanced access control terminal designed to secure entryways across corporate headquarters, healthcare facilities, educational campuses, and multi-tenant residential complexes. Serving as a physical security endpoint within the UniFi Access ecosystem, the G3 Pro Black combines physical credential validation, video intercom capability, and AI surveillance into a single sleek wall-mounted terminal.
Equipped with a high-brightness multi-touch screen, the terminal displays clear access feedback, animated entry prompts, and a touch-dial keypad for PIN entry or visitor directory selection. Its built-in 4K-class video camera integrates with UniFi Protect, providing wide-angle video feeds, two-way intercom audio, and AI recognition features. Supporting diverse credential standards—including encrypted UniFi Access cards, high-frequency 13.56 MHz NFC, low-frequency 125 kHz RFID, Mobile Tap, and Bluetooth low-energy proximity unlock—it ensures flexible access options for employees, guests, and maintenance staff. Housed in an IP55 weatherproof casing with IK04 impact protection, the UA-G3-PRO-B runs on standard PoE via an RJ45 connection to a UniFi Access Hub.
Comprehensive Key Features:
Multi-Factor Authentication Terminal: Supports NFC cards, 125 kHz RFID, mobile device touchless unlock (Apple Wallet / UniFi Identity), and PIN entry.
Integrated HD Video Intercom: Enables 2-way audio and high-resolution video calls between visitors at the door and operators running UniFi Access or mobile applications.
UniFi Protect Camera Integration: Serves as a full-time surveillance security camera within the UniFi Protect ecosystem with wide-angle video capture.
High-Brightness Touchscreen Display: Dynamic multi-touch color screen for on-screen PIN entry, directory browsing, and visual access status notifications.
Weatherproof & Impact Resistant: IP55 outdoor rating paired with IK04 tamper resistance for interior or exterior wall deployments.
Single Cable PoE Connection: Powered via 802.3af Power over Ethernet connected directly to a UniFi Access Hub (UA-Hub / EAH-8).
UniFi Access Centralized Controller: Complete administrative control over access schedules, credential revocation, audit logs, and door automation rule sets.
Extended Technical Specifications:
1. Hardware & Physical Security:
Model / SKU: UA-G3-PRO-B (UniFi Access Reader G3 Pro - Black)
Display: High-Brightness Multi-Touch Screen Display
Camera Sensor: High-Resolution Video Sensor with Wide Angle Field of View
Audio Capabilities: Built-in Microphone and Speaker with Echo Cancellation for 2-Way Intercom
Sensor Suite: Ambient Light Sensor, Proximity Sensor
Enclosure Material: Aluminum Alloy Base, Polycarbonate Casing (Black Finish)
Weather & Vandal Resistance: IP55 Rated / IK04 Impact Resistance
2. Credentials & Frequency Support:
NFC / High Frequency (13.56 MHz): ISO 14443 Type A/B, MIFARE (Classic, DESFire, Plus), UniFi Access Card, Mobile NFC
Low Frequency (125 kHz): Supported LF RFID Standards
Wireless Connectivity: Bluetooth 5.0 (for Mobile Proximity / Identity Unlock)
Mobile Authentication: UniFi Identity App (iOS / Android), Apple Wallet Integration
3. Networking & Power Parameters:
Networking Interface: (1) 10/100/1000 Mbps RJ45 Port
Power Method: 802.3af PoE (48V DC via UniFi Access Hub)
Max. Power Consumption: 12 W
Operating Temperature: -30°C to 50°C (-22°F to 122°F)
Operating Humidity: 5% to 90% Non-Condensing
Certifications: CE, FCC, IC
