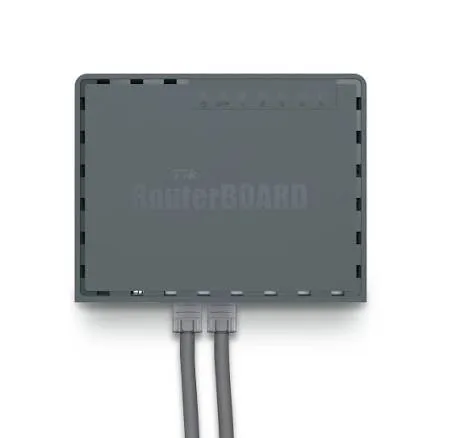

The MikroTik hEX S (Model: RB760iGS) is an advanced, ultra-compact desktop router designed for small office, home office (SOHO), and managed wired network setups that require fiber connectivity and PoE passthrough flexibility. Driven by a dual-core MediaTek MT7621A processor running at 880 MHz with 4 CPU threads and 256 MB RAM, this router easily manages multi-WAN routing, dynamic firewall rules, user access control, and bandwidth shaping queues.
Equipped with 5x Gigabit Ethernet ports and 1x 1.25G SFP cage, the hEX S enables direct fiber backhaul integration alongside copper connections. It includes dedicated IPsec hardware acceleration capable of reaching hardware-encrypted throughputs of up to ~470 Mbps. Functional features include Passive PoE input on Port 1, Passive PoE output on Port 5 (capable of powering secondary PoE devices up to 500 mA), an onboard microSD card slot for enhanced database storage or utility packages like The Dude server, and a full-size USB 2.0 port for cellular modem attachments. Housed in a durable white plastic desktop enclosure, it operates on MikroTik RouterOS Level 4.
Comprehensive Key Features
Dual-Core Processing with Hardware IPsec: Powered by an MT7621A 880 MHz dual-core CPU with IPsec hardware encryption support for secure, high-speed VPN tunnels.
5x Gigabit RJ45 Ports & 1.25G SFP Cage: Provides 5 Gigabit copper ports combined with a dedicated SFP slot for direct fiber uplink integration.
PoE-In & PoE-Out Versatility: Accepts Passive PoE input (12–57 V) on Port 1 and offers Passive PoE output on Port 5 to power connected downstream equipment.
MicroSD & USB Expansion: Features a microSD card slot for read/write database storage expansion and a USB 2.0 port for 3G/4G cellular modems or storage.
Silent Desktop Form Factor: Fanless, low-profile white enclosure designed for silent and energy-efficient 0 dB operation.
RouterOS L4 Enterprise Suite: Pre-installed with RouterOS Level 4, unlocking full control over network management, policy routing, Hotspot gateways, and VPN protocols.
Extended Technical Specifications
1. Hardware & Physical Parameters
Model / SKU: RB760iGS (hEX S)
Dimensions: 0.113 m × 0.089 m × 0.028 m (113 × 89 × 28 mm)
Weight: 0.280 kg (280 g)
CPU: Dual-Core MT7621A @ 880 MHz (4 Threads)
RAM: 256 MB DDR3
Storage: 16 MB Flash + MicroSD Slot
SFP Cage: 1× 1.25 Gbps SFP Port
USB Interface: 1× USB 2.0 Type-A
Memory Card Slot: 1× MicroSD Slot
Enclosure Material: Durable Desktop Plastic Casing
Status LEDs: Power, User LED, Port Link/Activity Status Indicators
2. Wireless, Networking & Performance Parameters
Ethernet Ports: 5× 10/100/1000 Mbps RJ45 Ports
PoE-In: Passive PoE on Port 1 (12 – 57 V DC)
PoE-Out: Passive PoE on Port 5 (Max output matches input voltage, up to 500 mA)
IPsec Hardware Acceleration: Supported (~470 Mbps throughput)
Operating System: MikroTik RouterOS (License Level 4)
Architecture: MMIPS
3. Electrical & Environmental Parameters
Power Method: Direct DC Power Jack (12 – 57 V DC) or Passive PoE-in on Port 1
Included Power Supply: 24 V DC / 1.2 A Power Adapter
Max Power Consumption: 24 W (11 W without attachments/PoE-out)
Cooling Type: Passive / Fanless
Operating Temperature: -40°C to 70°C (-40°F to 158°F)
