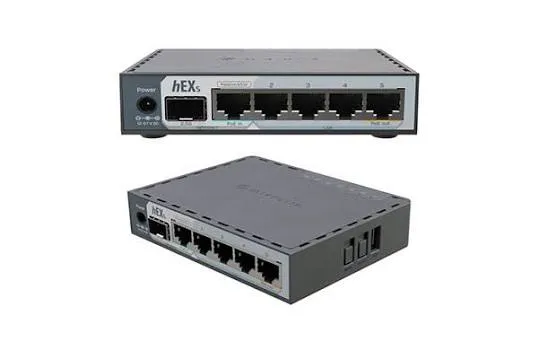

The MikroTik hEX S (Model: E60iUGS) represents the modernized, refreshed iteration of the popular hEX series, offering an affordable yet powerful wired routing solution for locations where wireless connectivity is not required. Designed to act as a robust core router, VPN gateway, or firewall appliance, it combines modern ARM 64-bit architecture with high port density and versatile fiber connectivity.
At its core, the E60iUGS is driven by a dual-core EN7581 ARM 64-bit processor operating at 950 MHz, paired with 512 MB RAM and 128 MB NAND storage. This upgraded hardware engine delivers substantial performance improvements over older MIPSBE architectures, allowing the device to handle complex WireGuard and IPsec VPN tunnels, BGP/OSPF dynamic routing, and heavy traffic shaping queues with ease.

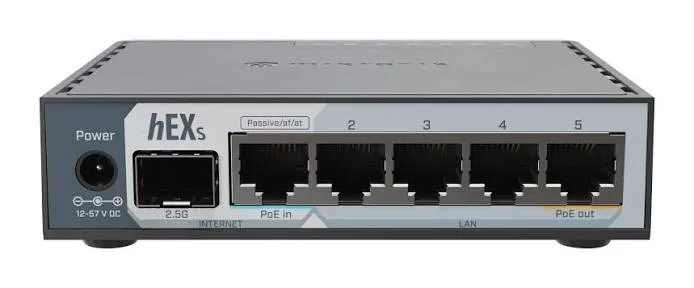

For local connectivity, the router provides 5x 10/100/1000 Mbps Gigabit Ethernet RJ45 ports alongside a dedicated 1.25G SFP cage for direct optical fiber links over 100 meters. Powering options are highly flexible: Port 1 accepts Passive PoE input (12–57 V DC), while Port 5 provides Passive PoE output to power downstream hardware such as wireless access points or IP cameras. It also incorporates a full-size USB 2.0 Type-A port and a microSD card slot for expanded logging, container storage, or secondary cellular modem failover. Housed in a durable white desktop enclosure and powered by RouterOS Level 4, it provides complete administrative control over enterprise networking protocols.
Comprehensive Key Features
Upgraded Dual-Core ARM 64-bit CPU: Powered by a 950 MHz ARM processor with 512 MB RAM for superior packet forwarding and VPN performance.
5x Gigabit Ports & 1.25G SFP Cage: High-density port layout featuring 5 Gigabit RJ45 copper ports plus an SFP cage for optical fiber backhaul links.
PoE-In & PoE-Out Versatility: Accepts Passive PoE input on Port 1 and offers Passive PoE output on Port 5 (up to match input voltage) to power secondary devices.
Hardware IPsec Acceleration: Built-in hardware encryption engine ensures fast, secure site-to-site and remote client VPN throughput.
Expanded Storage Expansion: Includes both a microSD card slot and a USB 2.0 Type-A port for local file storage, logs, containerized applications, or cellular 4G/5G modems.
RouterOS L4 Enterprise Suite: Powered by MikroTik RouterOS Level 4, supporting advanced firewall rules, dynamic routing, bandwidth shaping queues, and VLAN isolation.
Extended Technical Specifications
1. Hardware & Physical Parameters
Model / SKU: E60iUGS (hEX S)
Dimensions: 0.113 m × 0.089 m × 0.028 m (113 × 89 × 28 mm)
Weight: 0.180 kg (180 g)
CPU: EN7581 Dual-Core ARM 64-bit @ 950 MHz
RAM: 512 MB
Storage: 128 MB NAND
SFP Cages: 1× 1.25 Gbps SFP Port
Expansion Slots: 1× microSD Slot + 1× USB 2.0 Type-A Port
Enclosure Material: Durable White Desktop Plastic Casing
Status LEDs: Power, User LED, Port Link/Activity Status Indicators
2. Wireless, Networking & Performance Parameters
Ethernet Ports: 5× 10/100/1000 Mbps RJ45 Ports
PoE-In: Passive PoE on Port 1 (12 – 57 V DC)
PoE-Out: Passive PoE on Port 5 (Max output matches input voltage, up to 500 mA)
IPsec Hardware Acceleration: Supported
Operating System: MikroTik RouterOS (License Level 4)
Architecture: ARM 64-bit
3. Electrical & Environmental Parameters
Power Method: Direct DC Power Jack (12 – 57 V DC) or Passive PoE-in
Included Power Supply: 24 V DC / 1.2 A Power Adapter
Max Power Consumption: 24 W (11 W without attached PoE devices)
Cooling Type: Passive (Fanless)
Operating Temperature: -40°C to 70°C (-40°F to 158°F)
