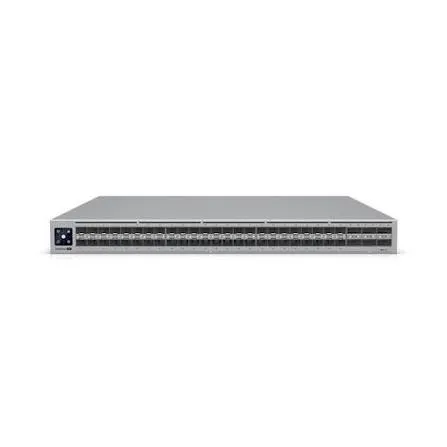

The Ubiquiti UniFi Enterprise Campus Aggregation Switch (Model: ECS-Aggregation / USW-Enterprise-Campus-Aggregation) is a premier rackmount Layer 3 switching solution built to handle extreme traffic volumes across corporate campuses, educational institutions, data centers, and enterprise core networks. Engineered to sit at the center of complex network topologies, it consolidates traffic from high-density edge access switches, wireless access point clusters, and high-performance server arrays.
Featuring an ultra-high switching capacity, the ECS-Aggregation provides high-speed 25G SFP28 optical ports alongside ultra-high-bandwidth 100G QSFP28 uplink ports for seamless spine-leaf architecture deployments. Operating with low latency and hardware-accelerated Layer 3 routing capabilities (including static routing, DHCP server functionality, and inter-VLAN routing), it reduces the processing load on core gateway routers. Equipped with a 1.3-inch LCM color touchscreen for instant port diagnostics and live system metrics, the switch incorporates dual hot-swappable AC power supply bays to ensure continuous high-availability operation during power feed maintenance.
Comprehensive Key Features:
High-Bandwidth 25G & 100G Connectivity: Features high-density 25G SFP28 ports (backward compatible with 10G SFP+) and ultra-fast 100G QSFP28 uplink ports.
Hardware-Accelerated Layer 3 Switching: Supports inter-VLAN routing, static routes, DHCP server configuration, and advanced traffic isolation directly on the switch hardware.
Carrier-Grade Power Redundancy: Includes dual hot-swappable modular AC/DC power supply units (PSUs) for seamless failover protection.
1.3-Inch Touchscreen Display: Integrated LCM color display provides AR switch port management, real-time status telemetry, and rapid diagnostics.
Massive Non-Blocking Throughput: Multi-terabit switching fabric engineered for zero-packet-loss performance under heavy data center workloads.
Unified UniFi Management: Configured and monitored centrally through UniFi Network software for port aggregation, VLAN tagging, dynamic topology mapping, and firmware updates.
Extended Technical Specifications:
1. Networking & Hardware Performance:
Model / SKU: ECS-Aggregation (Enterprise Campus Switch Aggregation)
Interface Ports:
(28) 1/10/25 Gbps SFP28 Fiber Ports
(4) 40/100 Gbps QSFP28 Fiber Uplink Ports
Switching Capacity: 1.8 Tbps
Non-Blocking Throughput: 900 Gbps
Forwarding Rate: 1.33 Bpps (Billion Packets Per Second)
Layer Capabilities: Layer 2 / Layer 3
Display: 1.3" Color Touchscreen LCM
2. Electrical, Power & Environmental:
Power Method: Dual Hot-Swappable AC Power Supplies (100–240V AC Inputs)
Power Supply Configuration: 1+1 Redundant Hot-Swappable PSUs
Max. Power Consumption: 150 W (Excluding optical transceivers)
ESD/EMP Protection: Air: ±16 kV, Contact: ±12 kV
Operating Temperature: -5°C to 40°C (23°F to 104°F)
Operating Humidity: 10% to 90% Non-Condensing
Certifications: CE, FCC, IC, RoHS Compliant
