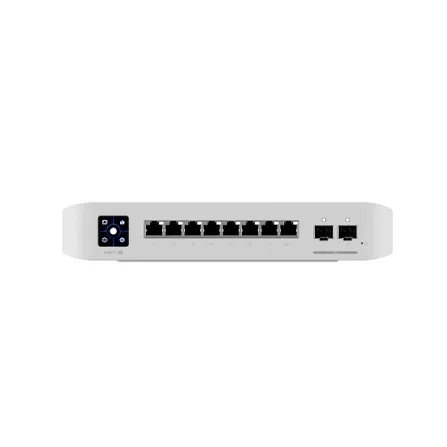

The Ubiquiti UniFi Switch Pro 8 PoE (Model: USW-Pro-8-PoE) specification description follows:
The Ubiquiti UniFi Switch Pro 8 PoE (Model: USW-Pro-8-PoE) is a compact, fully managed Layer 3 enterprise switch designed to deliver high-capacity power and multi-gigabit connectivity in high-density corporate environments, remote offices, and desktop deployments. Engineered for high-demand edge devices, the switch combines multi-rate Ethernet interfaces with high-wattage Power over Ethernet (PoE+ and PoE++) capabilities alongside high-speed 10G SFP+ optical uplinks.
Equipped with 8 total Gigabit RJ45 ports—comprising (6) 802.3at PoE+ ports and (2) 802.3bt PoE++ ports—the USW-Pro-8-PoE supplies up to 120W of total available PoE power. Managed centrally via the UniFi Network Application, it provides advanced Layer 3 routing features, silent fanless thermal operation, a 1.3" LCM color touchscreen display for instant visual telemetry, and flexible desktop or wall-mounting installation options.
Comprehensive Key Features:
- High-Power PoE+ / PoE++ Delivery: Features (6) 802.3at PoE+ ports (up to 30W per port) and (2) 802.3bt PoE++ ports (up to 60W per port) to power high-draw hardware like WiFi 6/6E/7 access points and PTZ cameras.
- 120W Total Available PoE Budget: Supplies up to 120W of total dynamic PoE power across all 8 Ethernet ports.
- 10G SFP+ Optical Uplinks: Equipped with (2) 10G SFP+ ports for high-bandwidth fiber backhaul to core enterprise switches or network storage infrastructure.
- Enterprise Layer 3 Switching: Supports Inter-VLAN routing, static routing, DHCP server management, and advanced traffic isolation policy enforcement.
- Silent Fanless Operation: Thermal engineering design operates completely silently without internal cooling fans, making it ideal for noise-sensitive office spaces.
- Integrated Touchscreen Display: 1.3" LCM color touchscreen display provides instant visual status, real-time bandwidth usage, and hardware diagnostic reporting.
- Flexible Mounting Options: Compact physical form factor supports clean desktop placement as well as secure wall mounting with included hardware.
Extended Technical Specifications:
- Hardware & Physical Parameters:
- Model / SKU: USW-Pro-8-PoE (UniFi Switch Pro 8 PoE)
- Dimensions: 200 x 248 x 44 mm (7.87 x 9.76 x 1.73")
- Weight: 2.1 kg (4.63 lb)
- Enclosure Material: Polycarbonate, Metal
- Mounting Options: Desktop, Wall-Mount (Kit Included)
- Display: 1.3" Color Touchscreen LCM
- Acoustic Noise Level: 0 dB(A) (Fanless Cooling)
- Wireless, Networking & Performance Parameters:
- Total RJ45 Ports: (8) 10/100/1000 Mbps Gigabit RJ45 Ports
- Uplink Interfaces: (2) 10G SFP+ Ports
- PoE Interfaces: (6) 802.3af/at PoE/PoE+ Ports, (2) 802.3bt PoE++ Ports (Pairs A 1, 2+; 3, 6- / Pairs B 4, 5+; 7, 8-)
- Max. PoE Wattage per Port: 802.3at (PoE+): 30W | 802.3bt (PoE++): 60W
- Total Available PoE Budget: 120W
- Non-Blocking Throughput: 18 Gbps
- Switching Capacity: 36 Gbps
- Forwarding Rate: 26.784 Mpps
- Management Interfaces: Ethernet, Bluetooth
- Electrical & Environmental Parameters:
- Power Method: Universal AC Input 100–240V AC, 2A Max., 50/60 Hz
- Power Supply: Internal AC/DC 150W Power Supply
- Max. Power Consumption: 30W (excluding PoE output)
- ESD/EMP Protection: Air: ±16 kV, Contact: ±12 kV
- Ambient Operating Temperature: -5 to 45° C (23 to 113° F)
- Ambient Operating Humidity: 10 to 90% noncondensing
- Regulatory Certifications: CE, FCC, IC
