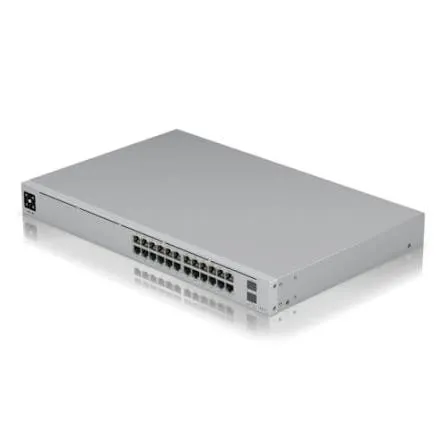

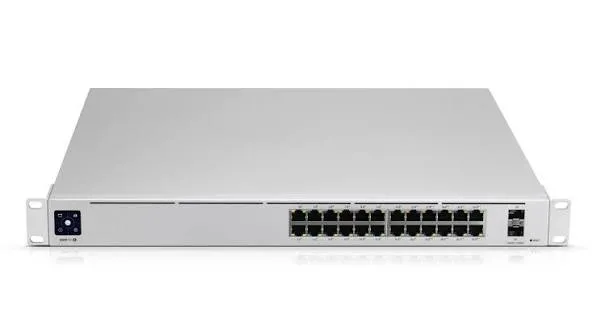

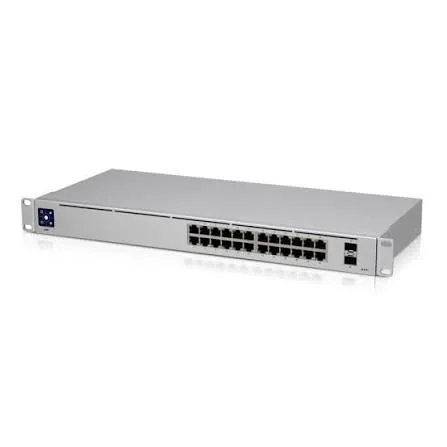

The Ubiquiti UniFi Switch 24 PoE (Model: USW-24-POE-EU) is a high-density Gen2 managed Layer 2 switch engineered to deliver quiet, high-efficiency power distribution and Gigabit connectivity across modern business environments. Equipped with 24 Gigabit RJ45 ports and 2 1G SFP optical ports for high-capacity backhaul, it provides non-blocking switching performance to handle heavy network traffic without bottlenecking.
Designed for operational comfort and silent integration, the USW-24-POE-EU features a fanless cooling architecture that makes it ideal for desktop or rackmount installation in office environments. 16 of its Gigabit ports support 802.3af/at PoE+ auto-sensing power output with a maximum budget of 95W to power UniFi access points, IP cameras, and VoIP phones. The front panel incorporates a 1.3" LCM touchscreen for at-a-glance status diagnostics, while the entire switch is centrally configured, monitored, and optimized via the UniFi Network software.
Comprehensive Key Features:
16 Auto-Sensing PoE+ Ports: Features 16 Gigabit RJ45 ports supporting 802.3af/at PoE+ with up to 32W output per port and a total 95W PoE budget.
1G SFP Fiber Uplinks: Equipped with (2) 1G SFP optical ports for long-distance network backhaul and high-speed core interconnects.
Silent Fanless Cooling: Thermal design provides near-silent operation, making it suitable for deployment in noise-sensitive workspaces.
1.3" LCM Color Touchscreen: Front-panel display provides instant visual status monitoring, port link statistics, and device diagnostics.
Layer 2 Management Features: Supports switching protocols including STP/RSTP, VLAN tagging, port isolation, rate limiting, and jumbo frames.
Centralized UniFi Integration: Complete setup, monitoring, and firmware updates managed remotely through the UniFi Network software.
Extended Technical Specifications:
1. Hardware & Physical Security:
Model / SKU: USW-24-POE-EU (UniFi Switch 24 PoE Gen2)
Dimensions: 442.4 x 200 x 43.7 mm (17.4 x 7.9 x 1.7")
Weight: Without Brackets: 3.00 kg (6.61 lbs) | With Brackets: 3.09 kg (6.81 lbs)
Enclosure Material: SGCC Steel
Form Factor: 1U Rackmount (Rackmount Brackets Included)
Display: 1.3" LCM Color Touchscreen
Cooling: Passive (Fanless)
2. Networking & Operational Parameters:
Total Network Interfaces: (24) GbE RJ45 Ports, (2) 1G SFP Ports
PoE Interfaces: (16) Ports 1–16 802.3af/at PoE+
Total Non-Blocking Throughput: 26 Gbps
Switching Capacity: 52 Gbps
Forwarding Rate: 38.69 Mpps
ESD/EMP Protection: Air: ±16 kV, Contact: ±12 kV
3. Electrical & Environmental Parameters:
Power Method: 100–240V AC, 50/60 Hz Universal Input (EU Power Cord Included)
Power Supply: Internal 120W AC/DC Power Supply
Max. Power Consumption: 25W (Excluding PoE Output)
Total Available PoE Budget: 95W
Max. PoE Wattage per Port: 32W (PoE+)
Ambient Operating Temperature: -5°C to 40°C (23°F to 104°F)
Ambient Operating Humidity: 10% to 90% Non-condensing
Certifications: CE, FCC, IC
