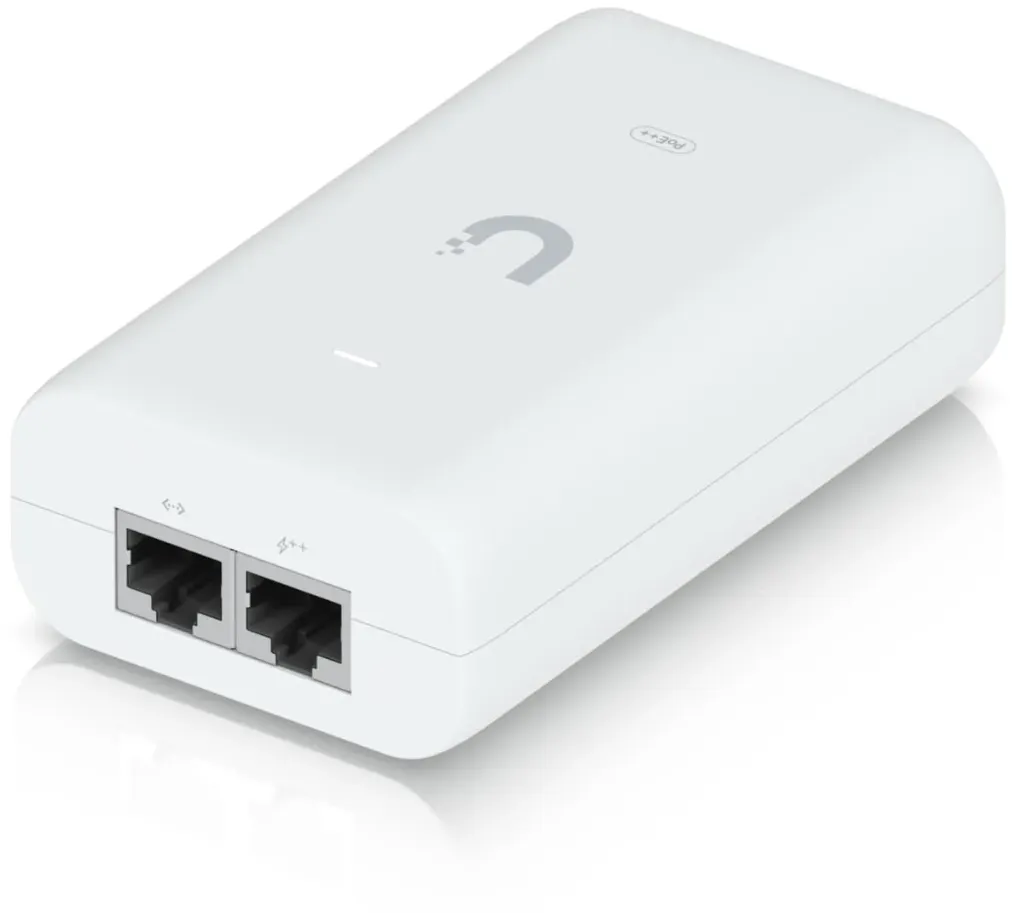

The Ubiquiti UniFi U-POE Adapter series provides dedicated midspan Power over Ethernet injection for Ubiquiti UniFi deployments and third-party 802.3 compliant networking hardware. These injectors allow high-bandwidth edge devices—such as Wi-Fi 6/6E/7 access points, PTZ security cameras, and door access hubs—to receive both power and gigabit data across a single RJ45 network cable run without offloading power from central network switches.
Each U-POE model features two Gigabit Ethernet ports (Data In / PoE Data Out) supporting passthrough speeds up to 1,000 Mbps. Built with active protection circuitry, the adapters guard connected devices against electrical surges, peak pulses, and overcurrent conditions. An included grounded AC power cord ensures optimal earth-grounding when used alongside shielded Ethernet cabling (such as Ubiquiti TOUGHCable).
Comprehensive Key Features:
Gigabit Ethernet Passthrough: Dual 10/100/1000 Mbps RJ45 ports (Data Input / PoE Output) maintain unthrottled network performance.
Active Electrical Protection: Integrated surge, peak pulse, and overcurrent shielding protect connected endpoints against electrical faults.
Earth Grounding Support: Includes a 3-prong AC cable with earth ground wire for electrostatic discharge (ESD) protection.
Status Monitoring: Dynamic LED indicator provides visual confirmation of AC power and PoE output activity.
Plug-and-Play Deployment: Works transparently without requiring UniFi Controller software adoption or configuration.
Extended Technical Specifications (Model Variants):
1. Ubiquiti U-POE-af (15W Variant):
PoE Standard: IEEE 802.3af
Max. PoE Output: 15 W
Output Voltage: 48V DC @ 0.32A
Data Ports: (2) 1 GbE RJ45 Ports (Data In / PoE Out)
Primary Use Case: Powering U6-Lite, G4 Bullet, G5 Bullet, and standard 802.3af endpoints
Input Power: 100–240V AC, 50/60 Hz
Operating Temperature: 0°C to 40°C (32°F to 104°F)
2. Ubiquiti U-POE-at / PoE+ (30W Variant):
PoE Standard: IEEE 802.3at (PoE+)
Max. PoE Output: 30 W
Output Voltage: 48V DC @ 0.65A
Data Ports: (2) 1 GbE RJ45 Ports (Data In / PoE Out)
Primary Use Case: Powering U6-Pro, U6-LR, G4 Pro Cameras, and high-capacity wireless access points
Input Power: 100–240V AC, 50/60 Hz
Operating Temperature: 0°C to 40°C (32°F to 104°F)
3. Ubiquiti U-POE-bt / PoE++ (60W Variant):
PoE Standard: IEEE 802.3bt (PoE++)
Max. PoE Output: 60 W
Output Voltage: 48V DC @ 1.25A
Data Ports: (2) 1 GbE RJ45 Ports (Data In / PoE Out)
Primary Use Case: Powering U6-Enterprise, UA-Hub, G4 PTZ, and heavy-duty PoE++ hardware
Input Power: 100–240V AC, 50/60 Hz
Operating Temperature: 0°C to 40°C (32°F to 104°F)
