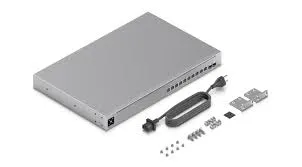

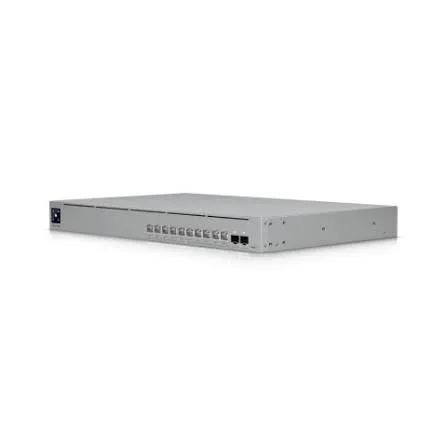

The Ubiquiti UniFi Switch Pro XG 10 PoE (Model: USW-Pro-XG-10-PoE) is an enterprise-grade 1U rack-mountable Layer 3 managed switch engineered to deliver line-rate 10Gbps performance and extreme Power over Ethernet capabilities across high-throughput networks. Positioned as an aggregation and edge power-house within the UniFi system, it is designed for environments requiring immense bandwidth and high wattage per port—such as powering Wi-Fi 7 access points, broadcast cameras, video-over-IP encoders, and high-performance server clusters.
Equipped with 10 x 10 GbE RJ45 auto-sensing multi-gigabit ports (10G/5G/2.5G/1G/100M) and 2 x 10G SFP+ optical uplink ports, the switch provides an expansive 240 Gbps total switching capacity. Every RJ45 port supports up to 802.3bt PoE+++ output, supplying up to 90W per port to accommodate demanding enterprise endpoints, backed by an internal 400W PoE power availability budget. Integrated Etherlighting™ technology offers dynamic visual port identification by illuminating each port with customizable multi-color LEDs indicating speed, native VLAN, or Pro AV profile configurations. Featuring full Layer 3 switching capabilities, redundant USP-RPS DC input support, and an intuitive 1.3" color LCM touchscreen, the USW-Pro-XG-10-PoE delivers high operational stability for mission-critical architectures.
Comprehensive Key Features:
Full 10G Multi-Gigabit Architecture: Features (10) 10 GbE RJ45 multi-speed ports and (2) 10G SFP+ optical fiber uplink ports.
Ultra High-Power 802.3bt PoE+++ Delivery: All 10 RJ45 ports supply up to 90W PoE+++ power per port (PSE Class 15.4W/30W/60W/90W support) with a total internal PoE budget of 400W.
Etherlighting™ Visual Port Management: Built-in multi-color port housing LEDs illuminate to provide visual feedback for link speeds, active VLANs, and custom Pro AV profiles.
Advanced Layer 3 Routing: Supports inter-VLAN routing, static routing, local DHCP server hosting, DHCP relay, and advanced IGMP multicast routing.
Pro AV Hardware Optimizations: Integrated profiles for Dante, Q-SYS, NDI, SDVoE, Shure, AES67, and Crestron deployment models.
Massive 240 Gbps Switching Capacity: Non-blocking 120 Gbps throughput architecture forwarding up to 179 million packets per second (179 Mpps).
USP-RPS DC Power Failover: Dedicated SmartPower DC backup port provides seamless power redundancy if primary AC power fails.
1.3" Color Touchscreen LCM: Displays real-time bandwidth performance graphs, total PoE wattage usage, link states, and AR network diagnostics.
Extended Technical Specifications:
Model / SKU: USW-Pro-XG-10-PoE (UniFi Switch Pro XG 10 PoE)
Rack Form Factor: 1U Standard 19" Rack Mount
Networking Interfaces:
(10) 10 GbE RJ45 Ports (10G/5G/2.5G/1G/100M)
(2) 10G SFP+ Optical Uplink Ports (10G/1G)
PoE Interfaces & Output:
(10) 802.3af/at/bt PoE+++ Ports
Total Available PoE Budget: 400 W
Max. PoE Wattage per Port: 90 W (802.3bt PoE+++)
Performance Metrics:
Switching Capacity: 240 Gbps
Total Non-Blocking Throughput: 120 Gbps
Forwarding Rate: 179 Mpps
MAC Address Table Size: 32,000 entries
Layer 3 Routing Tables: 12,000 IPv4 Routes / 12,000 ARP Entries
Packet Buffer Size: 2 MB
Power Method:
(1) Universal AC Input 100–240V AC, 50/60 Hz
(1) USP-RPS DC Backup Input
Power Supply: Internal AC/DC 550W Power Supply
Max. Power Consumption: 65 W (Excluding PoE Output) / 520 W (Full Load with PoE Output)
Display: 1.3" Color Touchscreen LCM
ESD/EMP Protection: Air: ± 30 kV, Contact: ± 30 kV
Enclosure Material: SGCC Industrial Steel
Operating Temperature: -5°C to 40°C (23°F to 104°F)
Operating Humidity: 10% to 90% non-condensing
