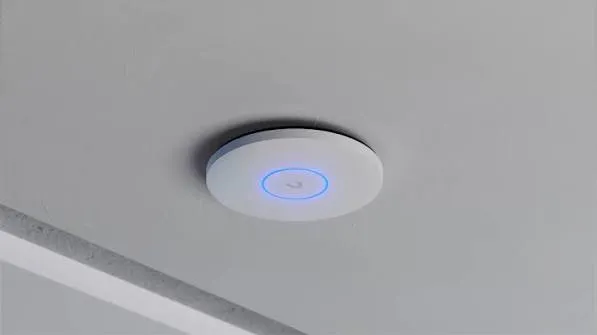

The Ubiquiti UniFi U7 Pro XG (Model: U7-Pro-XG) is a high-performance Wi-Fi 7 Access Point engineered to deliver low-latency, multi-gigabit wireless capacity across corporate headquarters, high-density auditoriums, and next-generation tech environments. Built to harness the clean 6 GHz spectrum band alongside standard 2.4 GHz and 5 GHz frequencies, it ensures optimal over-the-air efficiency for high-bandwidth endpoints.
Featuring a total of 10 spatial streams (2x2 on 2.4 GHz, 4x4 on 5 GHz, and 4x4 on 6 GHz), the U7 Pro XG supports maximum 320 MHz channel widths and 4096-QAM. To ensure high-speed wireless traffic flows without wired network throttling, the access point features a 10GbE RJ45 Multi-Gigabit Ethernet uplink. Housed in a clean, white UV-stabilized polycarbonate and aluminum alloy enclosure, it integrates into the UniFi Network Controller platform for centralized management, spectral scanning, and automated channel optimization.
Comprehensive Key Features:
Wi-Fi 7 Tri-Band Architecture: Operates concurrently across 2.4 GHz, 5 GHz, and 6 GHz radio bands utilizing 320 MHz channel bandwidths and 4096-QAM modulation.
Massive Aggregate Wireless Throughput: Delivers over-the-air data rates up to 688 Mbps on 2.4 GHz, 8.6 Gbps on 5 GHz, and 9.3 Gbps on 6 GHz.
10 Gbps Ethernet Uplink Interface: Equipped with a 10GbE RJ45 port to support multi-gigabit switch connections and high-capacity backhauls.
10 Spatial Streams: Features 10 total spatial streams (2x2 on 2.4 GHz, 4x4 on 5 GHz, 4x4 on 6 GHz) for optimal high-density client capacity.
High-Density Client Handling: Built to sustain 500+ active concurrent client connections with advanced MU-MIMO and OFDMA scheduling.
PoE+ Powered: Operates on standard 802.3at PoE+ for simplified single-cable power and data installation.
Extended Technical Specifications:
1. Hardware & Physical Security:
Model / SKU: U7-Pro-XG (UniFi U7 Pro XG Access Point)
Dimensions: Ø206.0 x 46.0 mm (Ø8.11 x 1.81")
Weight: Without Mount: 680 g (1.50 lbs) | With Mount: 800 g (1.76 lbs)
Enclosure Material: Polycarbonate, Aluminum Alloy
Mounting: Ceiling and Wall Mount Plate (Included)
Color: White
2. Wireless, Networking & Performance Parameters:
Wi-Fi Standards: 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)
Radio Streams (MIMO): 2.4 GHz: 2x2 | 5 GHz: 4x4 | 6 GHz: 4x4
Max. Data Rates: 2.4 GHz: 688 Mbps | 5 GHz: 8648 Mbps | 6 GHz: 9336 Mbps
Uplink Interface: (1) 10GbE RJ45 Port
Concurrent Clients: 500+ Active Devices
Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
3. Electrical & Environmental Parameters:
Power Method: 802.3at PoE+
Supported Voltage Range: 44 to 57V DC
Max. Power Consumption: 24W
Ambient Operating Temperature: -30°C to 50°C (-22°F to 122°F)
Ambient Operating Humidity: 5% to 95% Non-condensing
Certifications: CE, FCC, IC, Wi-Fi Certified 7
