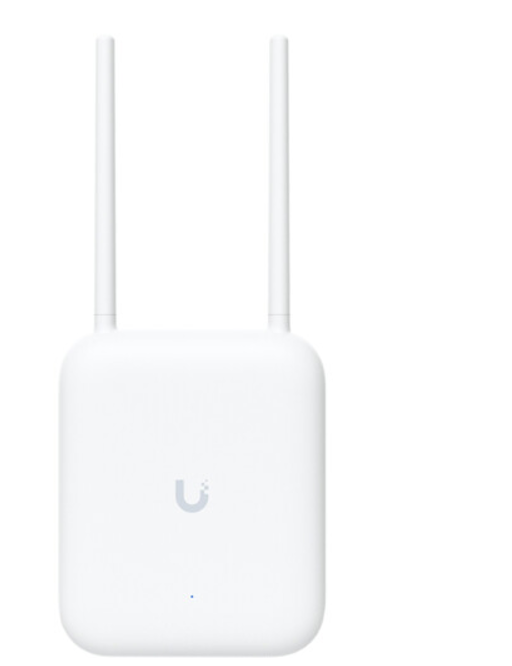

The Ubiquiti UniFi 7 Pro Outdoor (Model: U7-Outdoor) is an outdoor Wi-Fi 7 access point engineered to deliver high-capacity multi-gigabit connectivity in open-air environments. Built on the IEEE 802.11be standard, the U7-Outdoor leverages 320 MHz channel bandwidth on 6 GHz, 4096-QAM modulation, and Multi-Link Operation (MLO) to eliminate latency and maintain high client density across stadium seating, outdoor hospitality grounds, industrial yards, and municipal parks.
Designed with specialized RF architecture, the U7-Outdoor incorporates an internal high-gain directional antenna for long-range focused beam coverage, while including two external RP-SMA connectors paired with detachable omnidirectional antennas for flexible 360-degree coverage customization. Protected within a ruggedized, IPX6-rated weatherproof casing, the device resists driving rain, heavy dust, and extreme temperature shifts. Powered via 802.3at PoE+ through its single 2.5 GbE uplink port, it integrates seamlessly into the UniFi Network application for centralized remote monitoring, dynamic channel management, and guest portal control.
Comprehensive Key Features:
Next-Generation Outdoor Wi-Fi 7: Full tri-band performance (6 GHz, 5 GHz, and 2.4 GHz) providing aggregate wireless throughput up to 9.3 Gbps.
Dual-Antenna Architecture: Integrated directional software-switchable super antenna (45° beamwidth) plus included external omni-directional antennas.
320 MHz Channel Width & 4096-QAM: Utilizes ultra-wide 320 MHz spectrum on 6 GHz and 4K-QAM modulation for dense data transmission.
2.5 GbE High-Speed Uplink: Single 2.5 Gigabit Ethernet RJ45 port prevents wired backhaul bottlenecks.
IPX6 Weatherproof Enclosure: Heavy-duty, industrial UV-stabilized casing withstands extreme outdoor climates.
Powered via 802.3at PoE+: Runs on standard 802.3at Power over Ethernet, simplifying long outdoor cabling runs.

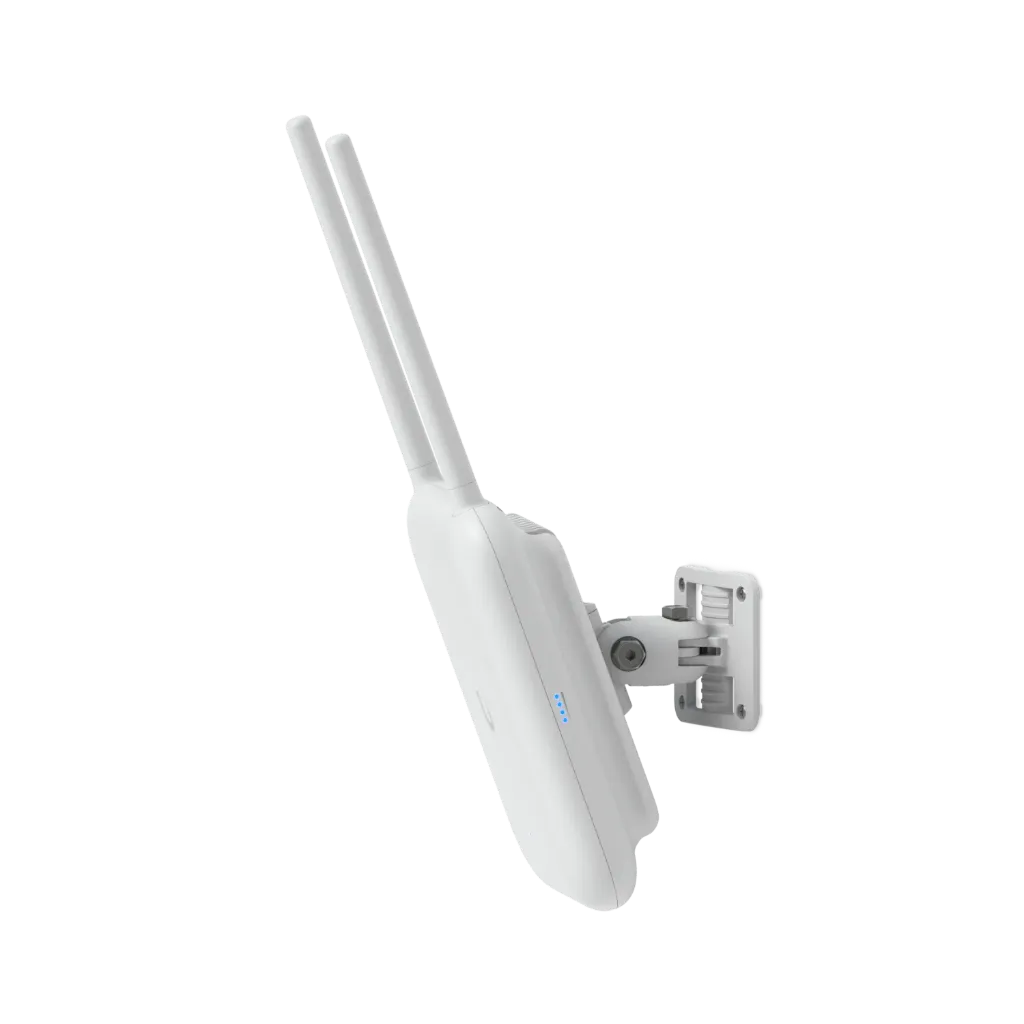

Versatile Mounting Options: Complete with wall and pole mounting hardware for flexible exterior installations.
Unified UniFi Network Management: Centralized provisioning, automated RF optimization, wireless meshing, and real-time topology mapping via UniFi Network.
Extended Technical Specifications:
1. Hardware & Wireless RF Architecture:
Model / SKU: U7-Outdoor (UniFi 7 Pro Outdoor)
Wi-Fi Standards: IEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)
Frequency Bands & Spatial Streams:
6 GHz Band: 2x2 802.11be (320 MHz Channel Width)
5 GHz Band: 2x2 802.11be (240 MHz / 160 MHz Channel Width)
2.4 GHz Band: 2x2 802.11be (40 MHz Channel Width)
Max. Data Throughput:
6 GHz Band: Up to 5.7 Gbps
5 GHz Band: Up to 2.8 Gbps
2.4 GHz Band: Up to 688 Mbps
Antenna Gain (Internal Directional):
6 GHz: 8.0 dBi
5 GHz: 8.0 dBi
2.4 GHz: 6.0 dBi
Antenna Gain (External Omni-Antennas Included):
5 GHz: 4.0 dBi
2.4 GHz: 3.0 dBi
Max. TX Transmit Power:
6 GHz: 23 dBm
5 GHz: 26 dBm
2.4 GHz: 23 dBm
Concurrent Clients: 500+ Active Clients
2. Physical Interfaces, Power & Environmental:
Networking Interface: (1) 2.5 GbE RJ45 Port (2.5G/1G/100M)
RF Connectors: (2) RP-SMA Female Connectors for optional/included omni antennas
Power Method: 802.3at PoE+ (44–57V DC)
Power Supply: UniFi PoE Switch or 48V, 0.5A 2.5G PoE Adapter (Not Included)
Max. Power Consumption: 21 W
Enclosure Materials: UV-Stabilized Polycarbonate, Aluminum Alloy
Weatherproofing Rating: IPX6 Rated
Operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Humidity: 5% to 95% non-condensing
Certifications: CE, FCC, IC
