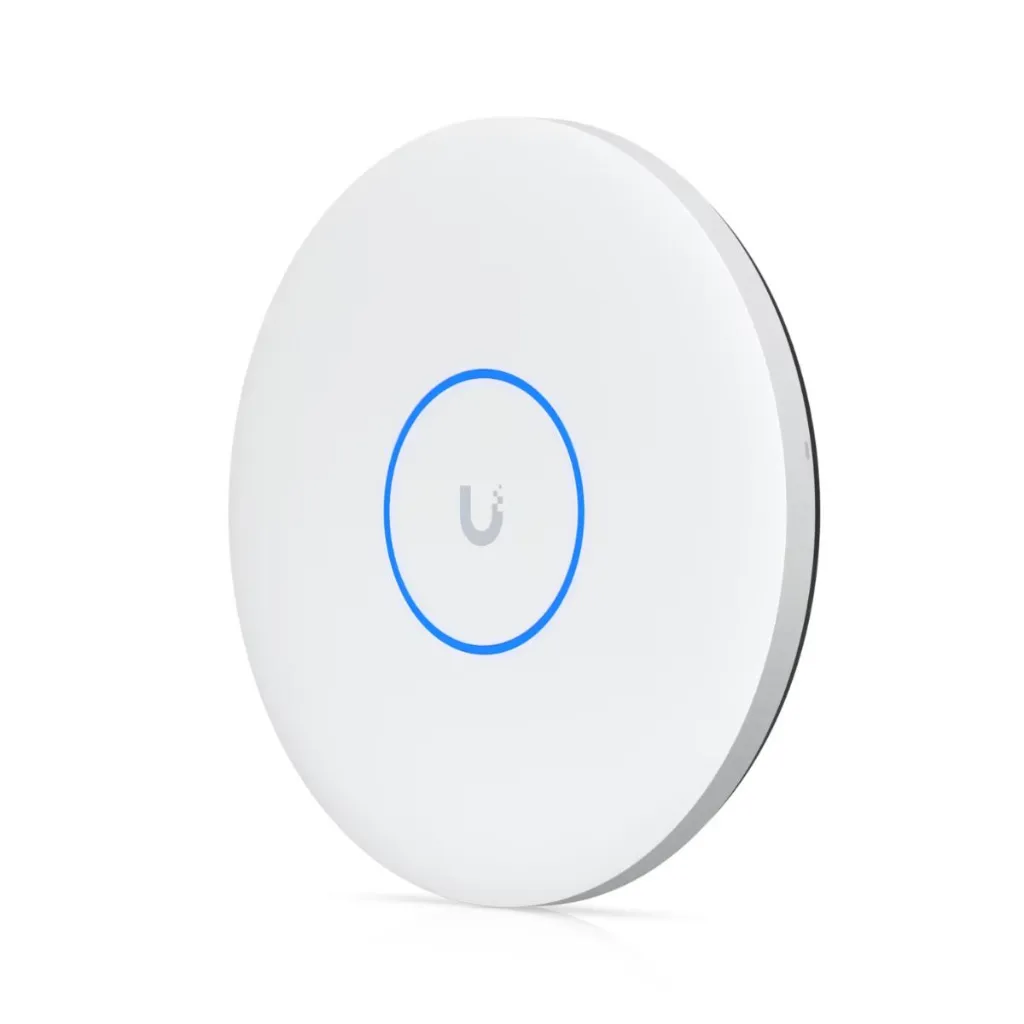

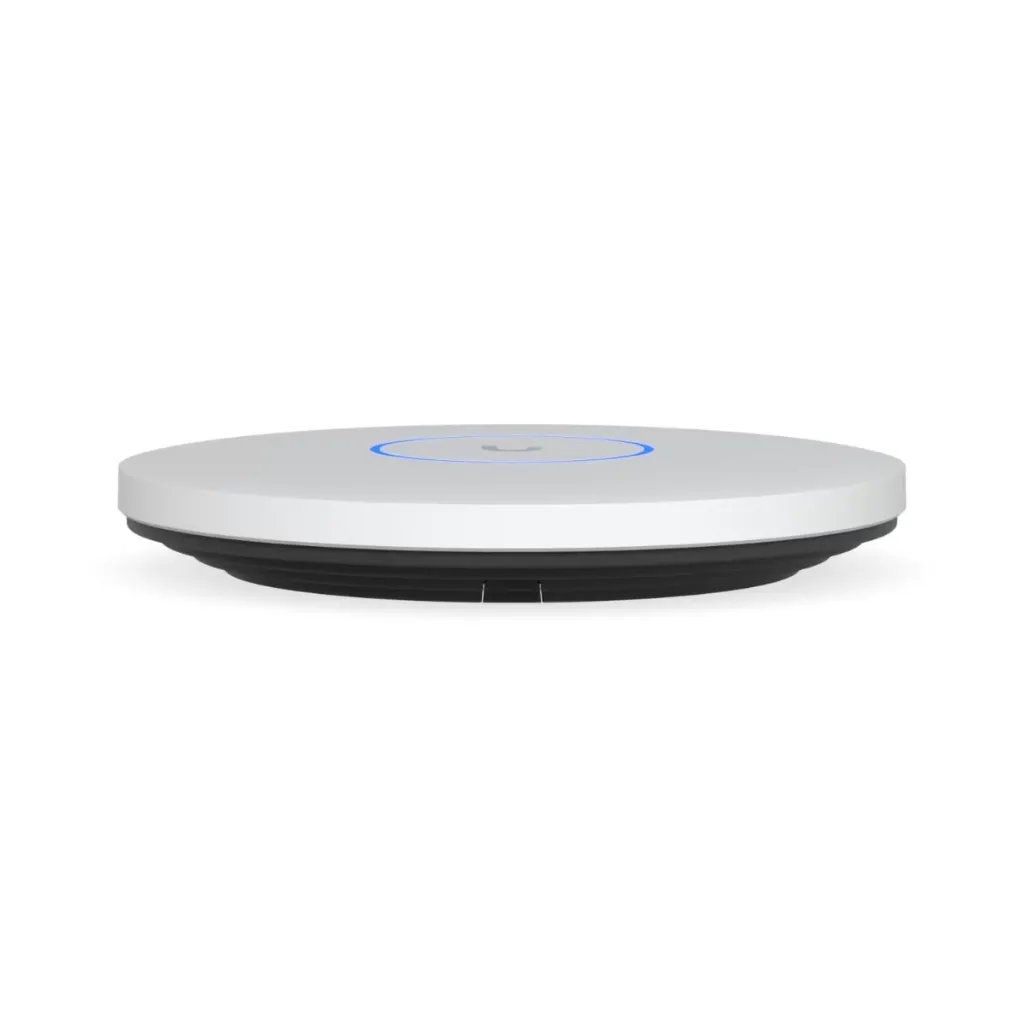

The Ubiquiti UniFi Access Point U7 Pro XGS (Model: U7-Pro-XGS) represents the flagship tier of UniFi Wi-Fi 7 networking, built specifically for high-capacity enterprise networks, university campuses, and dense venue deployments. Operating across 2.4\text{ GHz}, 5\text{ GHz}, and 6\text{ GHz} bands, the access point utilizes 4096-QAM (4K-QAM) modulation and Multi-Link Operation (MLO) to maximize wireless throughput and significantly minimize latency for next-generation wireless endpoints.
The U7 Pro XGS is engineered with an 8\text{ spatial stream} architecture—highlighted by a 4\times 4 MIMO configuration on the high-demand 5\text{ GHz} band to deliver peak data rates of up to 8.6\text{ Gbps} on 240\text{ MHz} channel widths. To fully eliminate backhaul switching bottlenecks, the unit features a ultra-fast 10\text{ GbE} Ethernet uplink port powered by 802.3\text{bt PoE++}. Additionally, an integrated real-time spectral analysis engine continuously scans surrounding RF activity to automatically optimize channel selection, mitigate interference, and enforce zero-wait DFS performance without interrupting active client connections.
Comprehensive Key Features:
Tri-Band Wi-Fi 7 Architecture: Simultaneous 2.4\text{ GHz}, 5\text{ GHz}, and 6\text{ GHz} radio operation supporting Multi-Link Operation (MLO) and 4096-QAM.
8 Spatial Stream Performance: 2.4\text{ GHz } (2\times 2), 5\text{ GHz } (4\times 4), and 6\text{ GHz } (2\times 2) spatial stream distribution for heavy client density.
Dedicated Spectral Scanning Radio: Integrated auxiliary radio provides real-time, non-disruptive RF environment monitoring and dynamic channel management.
10 GbE Multi-Gigabit Uplink: High-speed 10\text{ GbE} RJ45 Ethernet port ensures non-blocking wired backhaul for full Wi-Fi 7 throughput potential.
High Client Capacity: Designed to effortlessly maintain reliable connections for over 500+ simultaneous active devices across a 160\text{ m}^2 (1,750\text{ ft}^2) coverage zone.
Advanced Enterprise Security: Native support for WPA3 Enterprise, PPSK (Private Pre-Shared Keys), RADIUS over TLS (RadSec), dynamic VLAN assignment, and guest isolation.
Extended Technical Specifications:
1. Hardware & Physical Security:
Model / SKU: U7-Pro-XGS (White) / U7-Pro-XGS-B (Black)
Form Factor / Mounting: Low-Profile Ceiling / Wall Mount (Lite Mount Included)
Dimensions: \varnothing 215.0 \times 32.5\text{ mm} (\varnothing 8.5 \times 1.3\text{"})
Weight: 800 g (1.76 lbs)
Enclosure Material: UV-Stabilized Polycarbonate, Aluminum Alloy
Mounting Materials: Stainless Steel (SUS304), Galvanized Steel (SGCC)
2. Radio, Performance & Wi-Fi Specifications:
Wi-Fi Standards: 802.11be (Wi-Fi 7), 802.11ax (Wi-Fi 6/6E), 802.11ac (Wi-Fi 5), 802.11n/g/b/a
MIMO Configuration:
2.4 GHz: 2\times 2 (DL/UL MU-MIMO)
5 GHz: 4\times 4 (DL/UL MU-MIMO)
6 GHz: 2\times 2 (DL/UL MU-MIMO)
Max. Throughput Rates:
2.4 GHz: 688 Mbps (40 MHz)
5 GHz: 8.6 Gbps (240 MHz)
6 GHz: 5.8 Gbps (320 MHz)
Antenna Gain: 2.4 GHz: 4 dBi | 5 GHz: 6 dBi | 6 GHz: 6 dBi
Max. TX Power: 2.4 GHz: 23 dBm | 5 GHz: 29 dBm | 6 GHz: 24 dBm
Channel Bandwidths: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 MHz
BSSIDs: Up to 8 per Radio
3. Electrical, Environmental & Software Parameters:
Networking Interface: (1) 10 GbE RJ45 Ethernet Port
Power Method: 802.3bt PoE++
Supported Voltage Range: 42.5V DC to 57V DC
Max. Power Consumption: 29W
Operating Temperature: -30°C to 40°C (-22°F to 104°F)
Operating Humidity: 5% to 95% Non-condensing
Software Requirements: UniFi Network Version 9.0.114 (White) / Version 9.1.120 (Black) or later
Certifications: CE, FCC, IC, Anatel, NDAA Compliant
