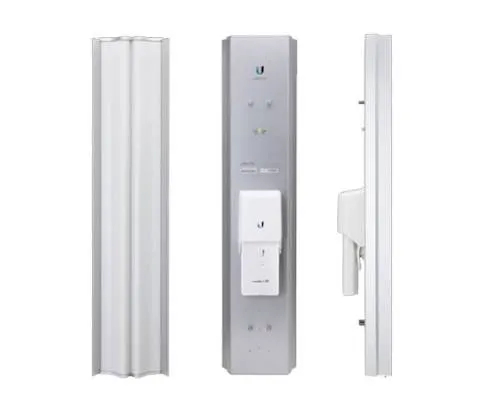

AIRMAX-AM-5AC21-60
 |
As the next generation of 2x2 MIMO sector antennas from Ubiquiti Networks, the airMAX® ac Sector Antennas feature significant advances in calability, noise isolation, and beam performance to complement the Rocket 5ac radios. They are also compatible with RocketM5 models; however, optimal performance requires the Rocket5ac.
The airMAX ac Sector Antennas are highly resistant to noise interference in co-location deployments. The innovative deflector design, together with the reduced sidelobes and backlobes, reject interference from other transmitters in the area - potentially on the same tower.
Improved Signa-to-Noise Ratio (S/N or SNR) allows a higher-order modulation to be used, for example, 256QAM rather than 16QAM. This increases the number of bits per second for a fixed bandwidth (or data rate). Due to innovative design, the airMAX ac Sector Antennas provide higher gain and superior beam performance for high-capacity, multipoint networks.
Technical Specification:
| Frequency Range | 5.10 - 5.85 GHz |
| Gain | 21dBi |
| Polarization | Dual Linear |
| Cross-pol Isolation | 25dB min. |
| Max VSWR | 1.5:1 |
| Hpol Beamwidth | (6dB) 60 deg. |
| Vpol Beamwidth | (6dB) 60 deg. |
| Electrical Downtilt | 2 deg. |
| Electrical Beamwidth | 4 deg. |
| ETSI Specification | EN 302 326 DN2 |
| Dimensions | 750 x 173 x 78 mm |
| Weight | 4.8 kg |
| Wind Survivability | 200 km/h |
