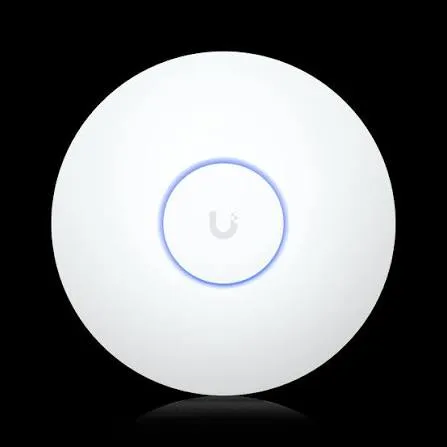

The Ubiquiti UniFi 7 Long-Range (Model: U7-LR) is a flagship Wi-Fi 7 access point designed to provide extended, high-capacity wireless coverage in demanding enterprise deployments. Built upon the IEEE 802.11be standard, the U7-LR takes full advantage of tri-band radio operation, Multi-Link Operation (MLO), and 4096-QAM modulation to dramatically reduce latency and increase throughput across crowded client environments.
Engineered with specialized high-gain antenna structures, the U7-LR optimizes RF beam patterns to penetrate wall obstacles and extend signal boundaries farther than standard indoor access points. It features a 2.5 GbE RJ45 uplink port to maximize backhaul performance and eliminate gigabit speed caps. Fully managed via the UniFi Network Controller, the U7-LR supports dynamic spectrum analysis, real-time client traffic monitoring, custom guest portals, and automated mesh configurations, providing robust centralized control for large-scale enterprise wireless networks.
Comprehensive Key Features:
Next-Generation Wi-Fi 7 Technology: Full tri-band support (6 GHz, 5 GHz, and 2.4 GHz) delivering aggregate wireless speeds up to 10.7 Gbps.
320 MHz Channel Width & 4096-QAM: Utilizes ultra-wide 320 MHz channels on the 6 GHz band and 4K-QAM modulation for maximum data density and minimal transmission latency.
Multi-Link Operation (MLO): Enables client devices to transmit and receive data across multiple frequency bands simultaneously for ultra-low latency.
Extended Range High-Gain Antennas: Specialized directional antenna patterns optimized for expanded physical footprint coverage.
2.5 GbE High-Speed Uplink: Equipped with a 2.5 GbE RJ45 port to ensure multi-gigabit wired backhaul throughput.
High Client Capacity: Designed to support 500+ concurrent client connections without speed degradation.
Powered via 802.3at PoE+: Runs on standard 802.3at Power over Ethernet, simplifying cable runs.
Centralized UniFi Integration: Complete remote configuration, automated RF optimization, guest isolation, and visual network topology mapping via UniFi Network.
Extended Technical Specifications:
1. Hardware & Wireless RF Architecture:
Model / SKU: U7-LR (UniFi 7 Long-Range)
Wi-Fi Standards: IEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)
Frequency Bands & Spatial Streams:
6 GHz Band: 2x2 802.11be (320 MHz Channel Width)
5 GHz Band: 2x2 802.11be (240 MHz / 160 MHz Channel Width)
2.4 GHz Band: 2x2 802.11be (40 MHz Channel Width)
Max. Data Rates:
6 GHz Band: Up to 5.7 Gbps
5 GHz Band: Up to 4.3 Gbps
2.4 GHz Band: Up to 688 Mbps
Antenna Gain:
6 GHz: 6.0 dBi
5 GHz: 5.5 dBi
2.4 GHz: 4.0 dBi
Max. TX Transmit Power:
6 GHz: 24 dBm
5 GHz: 26 dBm
2.4 GHz: 23 dBm
Concurrent Client Capacity: 500+ Active Clients
BSSID Support: Up to 8 SSIDs per radio
2. Physical Interfaces, Power & Environmental:
Networking Interface: (1) 2.5 GbE RJ45 Port (2.5G/1G/100M)
Management Interface: Ethernet / UniFi Network Software
Power Method: 802.3at PoE+ (Pins 1, 2+; 3, 6- or 4, 5+; 7, 8-)
Power Supply: UniFi PoE Switch or 48V, 0.5A 2.5G PoE Adapter (Not Included)
Max. Power Consumption: 21 W
Enclosure Materials: Polycarbonate, Aluminum Alloy Base

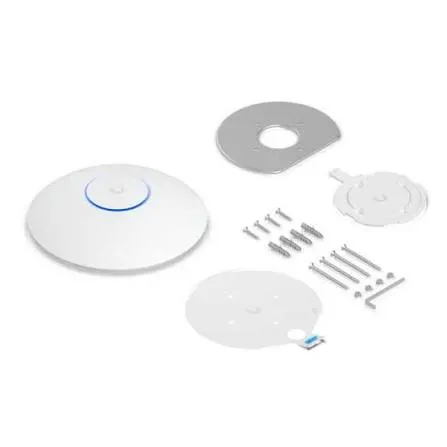

Mounting: Included Ceiling / Wall Mounting Kit
Operating Temperature: -30°C to 60°C (-22°F to 140°F)
Operating Humidity: 5% to 95% non-condensing
Certifications: CE, FCC, IC
