Mikrotik Chateau Pro ax H53UIG-5HaxQ2HaxQ

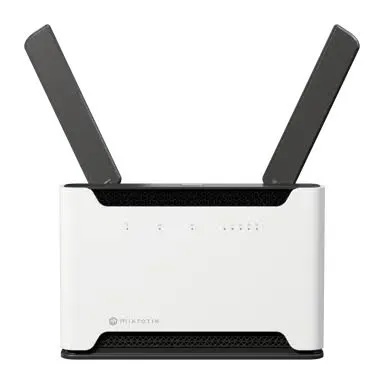

The MikroTik Chateau PRO ax (Model: H53UiG-5HaxQ2HaxQ) is a premium Wi-Fi 6 desktop router designed for demanding home networks, remote work setups, and small-to-medium offices requiring high throughput and wide wireless coverage without integrated cellular modems. Designed in a stylish white desktop enclosure with external high-gain antennas, it combines cutting-edge Wi-Fi 6 performance with flexible wired routing capabilities.

At its core, the router is powered by an IPQ-8072 quad-core ARM 64-bit CPU operating at 2.2 GHz, paired with 1 GB RAM and 128 MB NAND storage. Unlike standard 2x2 Wi-Fi models, the Chateau PRO ax incorporates full 4x4 MU-MIMO dual-band Wi-Fi 6 wireless radios. This quad-chain architecture delivers up to 1148 Mbps on the 2.4 GHz band and up to 2402 Mbps on the 5 GHz band, providing significant signal penetration through walls and maintaining stable low-latency performance across dozens of connected devices.

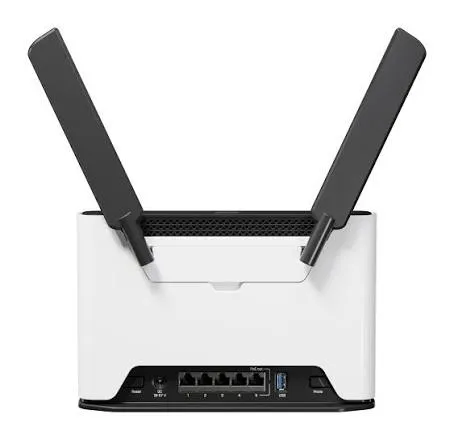

For high-speed wired connectivity, the device includes 4x Gigabit Ethernet RJ45 ports and 1x 2.5 Gigabit Ethernet port, where Port 1 supports Passive PoE-out to supply power to downstream network equipment. It also features a USB 3.0 port for external storage expansion or secondary 4G/5G USB modems. Driven by MikroTik RouterOS Level 4, it provides complete administrative control over dynamic routing, firewall security, VLAN segmentations, encrypted VPN tunnels, and CAPsMAN access point management.

Comprehensive Key Features

• 4x4 MU-MIMO Dual-Band Wi-Fi 6: Quad-chain radios on both 2.4 GHz (up to 1148 Mbps) and 5 GHz (up to 2402 Mbps) offer superior multi-device throughput and extended coverage.

• Quad-Core 2.2 GHz ARM Processor: High-frequency CPU engine effortlessly handles IPsec hardware encryption, traffic shaping, and containerized network apps.

• 2.5G Ethernet Uplink with PoE-Out: Features 1x 2.5 Gbps Ethernet port for ultra-fast WAN/NAS connections with Passive PoE-out capability alongside 4x Gigabit ports.

• USB 3.0 Interface: Enables external storage deployment, media sharing, or secondary cellular USB modem attachment for WAN failover.

• External High-Gain Antennas: Equipped with external dipoles to maximize RF efficiency and indoor signal penetration.

• RouterOS L4 Management Suite: Pre-installed with RouterOS Level 4, granting unrestricted access to enterprise firewall rules, VPN management, and bandwidth queues.

Extended Technical Specifications

1. Hardware & Physical Parameters

• Model / SKU: H53UiG-5HaxQ2HaxQ (Chateau PRO ax)

• Dimensions: 0.240 m × 0.156 m × 0.044 m (240 × 156 × 44 mm)

• Weight: 1.050 kg

• CPU: IPQ-8072 Quad-Core ARM 64-bit @ 2.2 GHz

• RAM: 1 GB

• Storage: 128 MB NAND

• USB Interface: 1× USB 3.0 Type-A Port

• Enclosure Material: Sleek White Desktop Plastic Casing

• Status LEDs: Power, User LED, Port Link/Activity Status Indicators

2. Wireless, Networking & Performance Parameters

• Wireless Standards: 2.4 GHz (802.11b/g/n/ax 4x4 quad-chain), 5 GHz (802.11a/n/ac/ax 4x4 quad-chain)

• Wi-Fi Speed: Up to 1148 Mbps (2.4 GHz) + 2402 Mbps (5 GHz)

• Antenna Gain: 2.4 GHz: 3 dBi; 5 GHz: 5.5 dBi

• Ethernet Ports: 1× 2.5 Gbps RJ45 Port + 4× 10/100/1000 Mbps RJ45 Ports

• PoE-Out: Passive PoE on Port 1 (Max output depending on input voltage)

• Operating System: MikroTik RouterOS (License Level 4)

• Architecture: ARM 64-bit

3. Electrical & Environmental Parameters

• Power Method: Direct DC Power Jack (12 – 28 V DC)

• Included Power Supply: 24 V DC / 1.2 A Power Adapter

• Max Power Consumption: 27 W (15 W without attachments/PoE-out)

• Cooling Type: Passive

• Operating Temperature: -40°C to 70°C (-40°F to 158°F)
