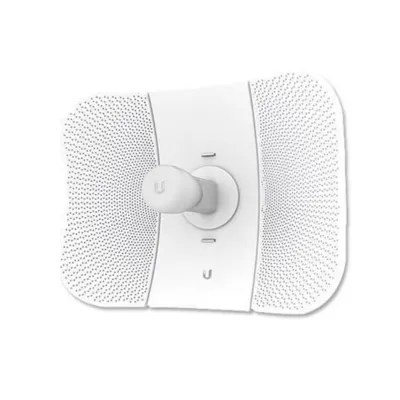

Ubiquiti airMAX LiteBeam 5AC (LBE-5ac-Gen2)
LiteBeam 5AC is the successor to the proven LBE-M5-23 device. It is an integrated client station (CPE - Customer Premises Equipment) operating in the unlicensed 5GHz band. The client station is compatible with airMAX - proprietary TDMA protocol replacing the standard 802.11ac. Thanks to the airMAX LiteBeam, it is perfect for PtP and PtMP radio links over long distances..
Thanks to the InnerFeed technology, all electronics, including the radio module, are enclosed in the antenna radiator. As a result, the LiteBeam station avoids unnecessary losses related to cables and connectors.
The integrated antenna with a gain of 23dBi is characterized by strong directionality - the beam has a small angle and is strongly directed - thanks to which it effectively eliminates noise and interference from other sources. This feature is especially important in areas with high density of radio networks. The whole thing is made of lightweight and weather-resistant plastic.
The radio module of the device works in the 2x2 MIMO technology, which allows you to achieve a bandwidth of 450Mbps and the maximum power of the module - 25dBm - allows you to set up a radio link even for several kilometers
LiteBeam runs on the airOS 8 operating system. The user interface is clear and intuitive and allows you to track a number of indicators in real time. A dedicated application is also available that allows you to configure and monitor the operation of the device using a smartphone, with the connection being made via a dedicated 2.4GHz radio interface.
Main features:
- lightweight compact design
- throughput up to 450Mbps
- 2x2 MIMO antenna, gain 23dBi
- Ubiquiti airOS 8 software
