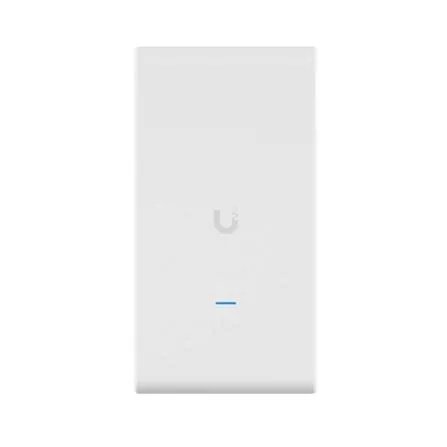

The Ubiquiti UniFi6 Mesh Pro (Model: U6-Mesh-Pro) is a high-performance outdoor dual-band Wi-Fi 6 access point built to provide extensive coverage and multi-gigabit throughput in demanding environment deployments. Engineered to bridge wide outdoor spaces, the U6-Mesh-Pro utilizes Ubiquiti’s proprietary high-gain internal super antenna array, optimizing signal directional pattern and transmission distance for open-air coverage across university campuses, outdoor hospitality resorts, industrial yards, and public parks.
Powered by advanced Wi-Fi 6 technology, the U6-Mesh-Pro supports 4x4 spatial streams with 160 MHz channel support on the 5 GHz frequency band—achieving data rates up to 4.8 Gbps—alongside a 2x2 MIMO configuration on the 2.4 GHz band reaching up to 573.5 Mbps. Designed to withstand harsh outdoor weather conditions, the access point is housed in a ruggedized, IPX6-rated weatherproof casing that resists heavy rain, dust, and extreme temperature fluctuations. The unit features two Gigabit Ethernet ports (Primary GbE with PoE+ input and Secondary GbE for bridged wired expansion) and can be easily mounted on poles or exterior walls using the included industrial hardware. Managed centrally via the UniFi Network suite, administrators can execute mesh node connections, manage dynamic VLANs, and optimize wireless client roaming without physical site intervention.
Comprehensive Key Features:
High-Capacity Outdoor Wi-Fi 6: Delivers dual-band Wi-Fi 6 coverage with an aggregate data rate of up to 5.3 Gbps.
4x4 MU-MIMO & 160 MHz Channel Width: Provides 4x4 spatial streams on the 5 GHz band for high client density and long-range high-bandwidth transmission.
Integrated High-Gain Super Antenna: Optimized internal antenna array pattern delivers extended line-of-sight outdoor coverage.
IPX6 Weatherproof Enclosure: Heavy-duty, outdoor-rated industrial casing protects internal radio electronics against driving rain, dust, and harsh ambient elements.
Dual Gigabit Ethernet Ports: Includes (1) Primary 1 GbE RJ45 port for power/data and (1) Secondary 1 GbE RJ45 port for daisy-chaining or local wired device connection.
Powered via 802.3at PoE+: Operates using standard 802.3at Power over Ethernet, eliminating the need for local outdoor AC outlets.
Flexible Mounting Solutions: Comes complete with heavy-duty mounting hardware for wall or vertical pole deployments.
Unified UniFi Management: Centralized remote configuration, automated RF optimization, wireless meshing, and real-time network topology mapping via UniFi Network.
Extended Technical Specifications:
1. Hardware & Wireless RF Architecture:
Model / SKU: U6-Mesh-Pro (UniFi6 Mesh Pro)
Wi-Fi Standards: IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
Spatial Streams / MIMO:
5 GHz Band: 4x4 MU-MIMO and OFDMA (160 MHz Bandwidth)
2.4 GHz Band: 2x2 MU-MIMO and OFDMA
Max. Throughput Rates:
5 GHz Frequency Band: Up to 4.8 Gbps
2.4 GHz Frequency Band: Up to 573.5 Mbps
Integrated Antenna Gain:
5 GHz: 8 dBi
2.4 GHz: 3 dBi
Max. TX Transmit Power:
5 GHz: 27 dBm
2.4 GHz: 22 dBm
Concurrent Client Capacity: 350+ Active Clients
BSSID Support: Up to 8 SSIDs per radio
2. Physical Interfaces, Power & Environmental:
Networking Interfaces:
(1) 10/100/1000 Mbps RJ45 Primary Ethernet Port (PoE In)
(1) 10/100/1000 Mbps RJ45 Secondary Ethernet Port (Data Bridging)
Power Method: 802.3at PoE+ (Pins 1, 2+; 3, 6- or 4, 5+; 7, 8-)
Power Supply: 48V, 0.5A PoE Gigabit Adapter (Included in single-pack models)
Max. Power Consumption: 16 W
Enclosure Material: UV-Stabilized Polycarbonate, Aluminum Alloy
Weatherproofing Rating: IPX6 Rated
Operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Humidity: 5% to 95% non-condensing
Certifications: CE, FCC, IC
