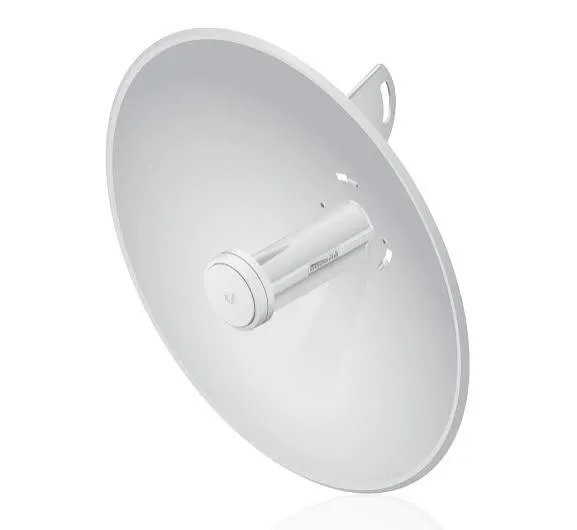

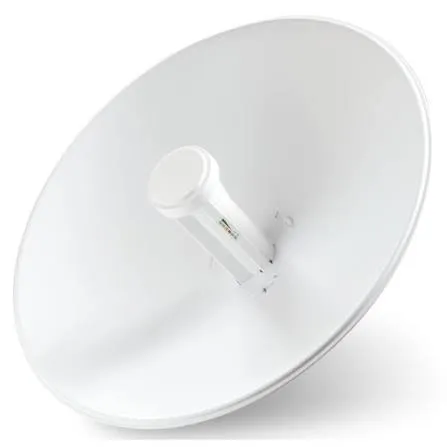

The Ubiquiti PowerBeam M5 400mm (Model: PBE-M5-400) specification description follows:
The Ubiquiti PowerBeam M5 400mm (Model: PBE-M5-400) is a high-performance airMAX Wireless Bridge purpose-built for long-range Point-to-Point (PtP) links and Point-to-MultiPoint (PtMP) CPE deployments. Operating in the 5 GHz frequency band, the device integrates InnerFeed technology with a 400 mm parabolic dish reflector to deliver 25 dBi antenna gain, superior directional beamwidth, and optimal noise immunity across challenging RF environments.
Powered by airOS software and a high-speed Atheros processor, the PBE-M5-400 delivers real TCP/IP throughput exceeding 150+ Mbps with exceptional link range reaching over 25+ km. Featuring a UV-stabilized plastic enclosure with a geomet-coated mechanical bracket, it incorporates a Gigabit Ethernet interface, 24V Passive PoE support, and precision pole-mounting alignment controls for quick, robust outdoor installation.
Comprehensive Key Features:
Integrated InnerFeed Technology: Integrates the radio directly into the antenna feed horn, eliminating coaxial cable losses and maximizing RF efficiency.
High Gain Parabolic Reflector: Features a 400 mm dish reflector delivering 25 dBi gain with tight beam directivity for long-distance wireless links.
High Noise Immunity: Directs RF energy in a tighter beamwidth to reject co-location noise and improve signal quality in crowded spectrums.
Advanced airOS Operating System: Built-in airOS software supporting airMAX TDMA protocol, real-time airView spectrum analysis, and advanced network diagnostic tools.
Gigabit Ethernet Performance: Equipped with a 10/100/1000 Mbps RJ45 port to prevent wired throughput bottlenecks on high-speed wireless links.
Tool-Free Ball-Joint Assembly: Designed for rapid field assembly and precise 3-axis alignment using a heavy-duty pole-mounting bracket.
Durable Outdoor Construction: GEOMET-coated fasteners and powder-coated steel mounting components provide enhanced corrosion resistance against severe outdoor environments.
Extended Technical Specifications:
Hardware & Physical Parameters:
Model / SKU: PBE-M5-400 (PowerBeam M5 400mm)
Dish Reflector Diameter: 400 mm (15.75")
Dimensions: 420 x 420 x 275 mm (16.54 x 16.54 x 10.83")
Weight: 1.753 kg (3.87 lb)
Enclosure Material: Outdoor UV-Stabilized Plastic, Powder-Coated Steel
Processor: Atheros MIPS 74Kc at 560 MHz
System Memory: 64 MB DDR2, 8 MB Flash
Mounting: Pole-Mount Kit Included (3-Axis Alignment Bracket)
Wireless, Networking & Performance Parameters:
Operating Frequency: Worldwide: 5170 – 5875 MHz (USA / FCC: 5725 – 5850 MHz)
Antenna Gain: 25 dBi
Max. Output Power: 26 dBm
Networking Interface: (1) 10/100/1000 Mbps Gigabit Ethernet RJ45 Port
Wireless Protocols: airMAX (TDMA Mode), 802.11a/n
Maximum Throughput: 150+ Mbps Real TCP/IP
Link Distance: 25+ km (Line-of-Sight)
Channel Bandwidths: 5 / 8 / 10 / 20 / 30 / 40 MHz
Electrical & Environmental Parameters:
Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
Max. Power Consumption: 8W
Supported Voltage Range: 20 to 26V DC
Wind Loading: 342.5 N at 200 km/h (77 lbf at 125 mph)
Wind Survivability: 200 km/h (125 mph)
ESD/EMP Protection: Air: ±24 kV, Contact: ±24 kV
Ambient Operating Temperature: -40 to 70° C (-40 to 158° F)
Ambient Operating Humidity: 5 to 95% noncondensing
Regulatory Certifications: CE, FCC, IC
