The Ubiquiti UniFi Switch Enterprise 48 PoE (Model: USW-Enterprise-48-PoE / USW-ENTERP-48POE-EU) specification description follows:

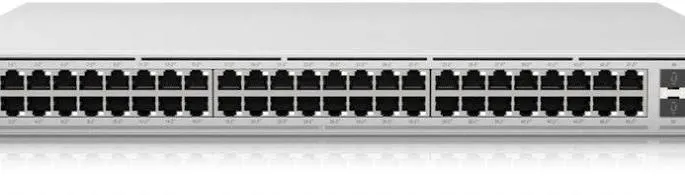

The Ubiquiti UniFi Switch Enterprise 48 PoE (Model: USW-Enterprise-48-PoE) is a high-density, Layer 3 managed enterprise switch purpose-built for high-bandwidth corporate, campus, and hospitality networks. Designed to maximize WiFi 6 and WiFi 6E/7 access point performance without wired bottlenecks, the switch provides a comprehensive mix of 2.5 GbE multi-gigabit interfaces, standard Gigabit Ethernet ports, and high-speed 10G SFP+ optical uplinks.
Featuring 48 total RJ45 PoE+ ports—comprising (24) 2.5 GbE ports and (24) 1 GbE ports—the switch delivers a massive 720W total PoE power budget to comfortably handle high-power network devices. Managed centrally via the UniFi Network Application, it offers advanced Layer 3 routing features, a 1.3" LCM color touchscreen for real-time monitoring, and a UniFi SmartPower DC input connection to ensure seamless power redundancy.
Comprehensive Key Features:
- High-Density Multi-Gigabit Ethernet: Features (24) 2.5 GbE RJ45 ports alongside (24) 1 GbE RJ45 ports to maximize throughput for WiFi 6/6E/7 access points and high-speed workstations.
- High-Capacity 720W PoE+ Budget: All 48 RJ45 ports support 802.3at PoE+ (up to 30W per port), delivering up to 720W of total available PoE power.
- 10G SFP+ Fiber Uplinks: Equipped with (4) 10G SFP+ ports for high-bandwidth optical backhaul to enterprise core switches or server infrastructure.
- Enterprise Layer 3 Routing: Supports Inter-VLAN routing, static routing, DHCP server management, and advanced network traffic isolation.
- DC Power Redundancy: Includes a UniFi SmartPower RPS DC input port to protect against internal AC power supply failures and maintain continuous uptime.
- Integrated Touchscreen Display: 1.3" LCM color touchscreen display provides instant visual telemetry, system status, and live port throughput monitoring.
- EU Power Specification: Includes standard European AC power cord (EU plug configuration) for immediate deployment in European power grids.
Extended Technical Specifications:
- Hardware & Physical Parameters:
- Model / SKU: USW-Enterprise-48-PoE / USW-ENTERP-48POE-EU
- Dimensions: 442.4 x 377 x 43.7 mm (17.42 x 14.84 x 1.72")
- Weight: 6.2 kg (13.67 lb) | With Mounting Brackets: 6.3 kg (13.89 lb)
- Enclosure Material: SGCC Steel
- Mount Material: SGCC Steel Rack Mount (1U Rackmount Brackets Included)
- Display: 1.3" Color Touchscreen LCM
- System Status LEDs: Ethernet, Power, Link / Activity
- Wireless, Networking & Performance Parameters:
- Total RJ45 Ports: (24) 2.5 GbE Ports, (24) 1 GbE Ports
- Uplink Interfaces: (4) 10G SFP+ Ports
- PoE Interfaces: (48) 802.3af/at PoE/PoE+ Ports (Pairs 1, 2+; 3, 6-)
- Max. PoE Wattage per Port: 30W (802.3at PoE+)
- Total Available PoE Budget: 720W
- Non-Blocking Throughput: 110 Gbps
- Switching Capacity: 220 Gbps
- Forwarding Rate: 163.68 Mpps
- Management Interface: Ethernet, Bluetooth
- Electrical & Environmental Parameters:
- Power Method: (1) Universal AC Input 100–240V AC, 10A Max., 50/60 Hz; (1) USP-RPS DC Input 52V DC, 14.5A / 11.5V DC, 2.61A
- Power Supply: Internal AC/DC 800W
- Max. Power Consumption: 80W (excluding PoE output)
- ESD/EMP Protection: Air: ±16 kV, Contact: ±12 kV
- Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
- Ambient Operating Humidity: 10 to 90% noncondensing
- Regulatory Certifications: CE, FCC, IC
