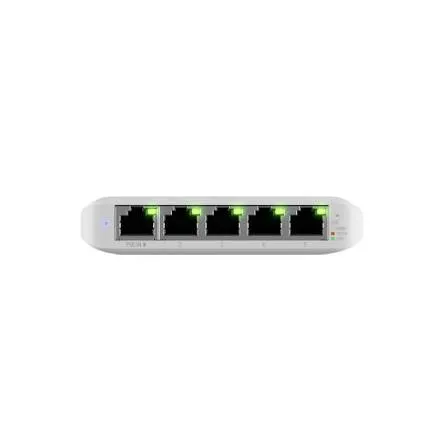

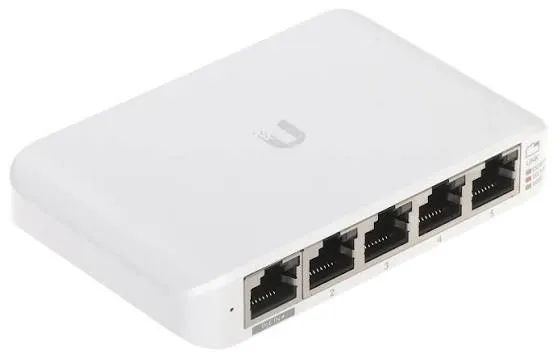

USW-Flex-Mini
5-Port managed Gigabit Ethernet switch powered by 802.3af/at PoE or 5V, 1A USB-C power adapter.
The USW-Flex-Mini is a Compact 5-Port Gigabit Switch. Build and expand your network with the UniFi® Switch, part of the Ubiquiti Networks® UniFi Enterprise System. The UniFi Switch, model USW-Flex-Mini, is a smart managed Gigabit switch. It offers 5 RJ45 Ethernet ports, providing 1 Gigabit links to your devices. Power up the USW-Flex-Mini with the included USB Type-C power adapter or with 802.3af PoE Ethernet in port 1.
Specifications:
| Dimensions | 107.16 x 70.15 x 21.17 mm (4.22 x 2.76 x 0.83") |
| Weight | 150 g (5,29 oz) |
| Networking Interfaces | (5) 10/100/1000 Mbps RJ45 Ports |
| PoE In Interface | 802.3af/at PoE (Pins 1, 2+; 3, 6-) |
| Power Method | USB Type C, 5V 802.3af/at PoE (44 - 57VDC, 0.05 - 0.04A) |
| Power Supply | 5V, 1A Power Adapter |
| Max Power Consumption | 2,5W |
| Voltage Range USB Type C 802.3af/at PoE | 4.7 - 5.2VDC 44 - 57VDC |
| LEDs System RJ45 Data Ports | Status Link/Speed/Activity |
| ESD/EMP Protection | ± 16kV Air, ± 12kV Contact |
| Operating Temperature | -5 to 45° C (-23 to 113° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
