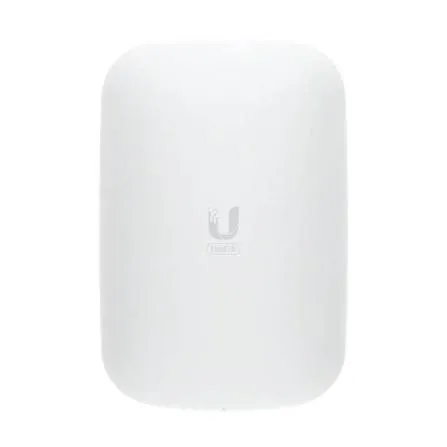

The Ubiquiti UniFi6 Extender (U6-Extender) is a powerful, dual-band Wi-Fi 6 (802.11ax) range extender engineered to effortlessly eliminate dead zones in home, enterprise, and hospitality environments. Designed for direct wall-outlet installation, it extends signal coverage without requiring dedicated Ethernet runs. With high-performance 4x4 MU-MIMO and OFDMA technology on the 5 GHz band, the U6-Extender delivers an aggregate throughput of up to 5.3 Gbps across its dual bands, supporting over 300 concurrently connected devices. Managed via the centralized UniFi Network Application, it integrates seamlessly into existing UniFi wireless systems to create a unified, high-speed mesh network.
Key Features:
High-Speed Wi-Fi 6 Performance: Delivers up to 5.3 Gbps aggregate over-the-air speed (4.8 Gbps on 5 GHz and 573.5 Mbps on 2.4 GHz).
Wire-Free Expansion: Meshes wirelessly with any in-range UniFi Access Point to seamlessly extend network coverage.
4x4 MU-MIMO & OFDMA: Provides high-density multi-user capacity and low-latency connectivity for voice, video, and data traffic.
Direct Wall-Plug Design: Plugs straight into a standard US AC wall socket for clean, toolless deployment.
High Device Density: Supports 300+ concurrent client connections without compromising performance.
Centralized Management: Full configuration, monitoring, and mesh topology management via the UniFi Network Controller.
Technical Specifications:
Model: U6-Extender
Wi-Fi Standard: Wi-Fi 6 (802.11ax) / Compatible with 802.11a/b/g/n/ac
Operating Frequencies: Dual-Band 2.4 GHz & 5 GHz
MIMO Configuration: 2x2 (2.4 GHz) / 4x4 (5 GHz)
Max Throughput Rate: 2.4 GHz: 573.5 Mbps / 5 GHz: 4.8 Gbps
Antenna Gain: 2.4 GHz: 5 dBi / 5 GHz: 6 dBi
Max Concurrent Clients: 300+
Power Method: AC Power Socket (100–240V AC, 50/60 Hz)
Max Power Consumption: 11 W
Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
