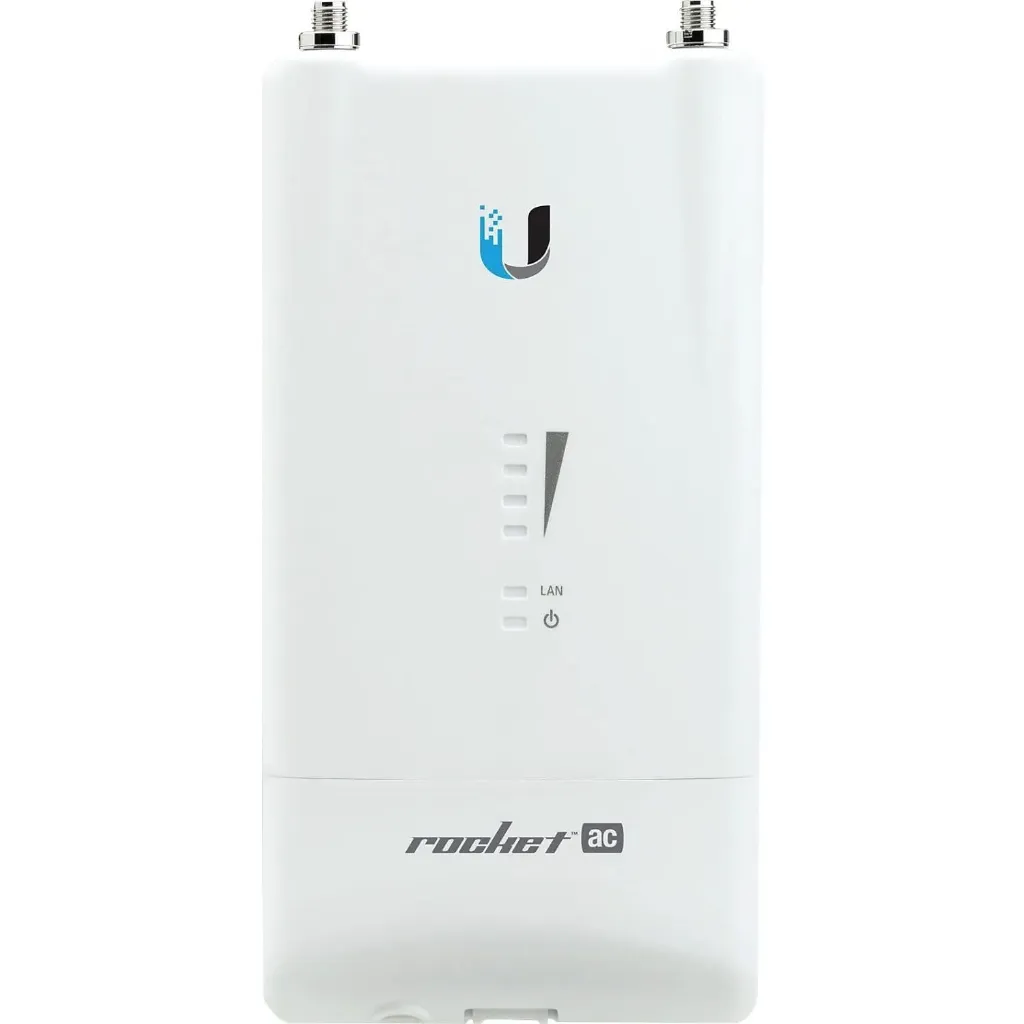

The Ubiquiti Rocket 5AC Lite (Model: R5AC-Lite) specification description follows:
The Ubiquiti Rocket 5AC Lite (Model: R5AC-Lite) is a high-performance, outdoor airMAX ac BaseStation radio designed for Point-to-Point (PtP) bridging and Point-to-MultiPoint (PtMP) wireless networking. Operating in the 5 GHz frequency band, the device leverages proprietary airMAX ac technology and airOS v7 software to deliver exceptional throughput up to 500+ Mbps, ultra-low latency, and enhanced spectral efficiency for long-range wireless backhauls.
Featuring a weather-resistant outdoor enclosure, the R5AC-Lite incorporates (2) waterproof RP-SMA connectors for seamless integration with airMAX ac Sector or RocketDish antennas. Engineered for high-power long-distance deployments, it includes Gigabit Ethernet connectivity, passive 24V PoE input, and co-location spectrum optimization, making it an ideal choice for ISP network expansion, remote video surveillance backhaul, and enterprise wireless bridging.
Comprehensive Key Features:
High-Throughput airMAX ac Technology: Delivers real TCP/IP throughput exceeding 500+ Mbps utilizing proprietary airMAX ac (802.11ac) protocol with TDMA architecture.
5 GHz Full-Band Coverage: Operates across the full 5 GHz spectrum (5150 – 5875 MHz) supporting channel bandwidth flexibility from 10 MHz to 80 MHz.
Flexible Antenna Compatibility: Equipped with (2) waterproof RP-SMA connectors designed to seamlessly mount onto airMAX Sector, RocketDish, and Omni antennas.
High RF Output Power: Delivers high-power RF transmission up to 27 dBm (500 mW) for long-range links reaching distances over 50+ km (antenna dependent).
Advanced airOS Operating System: Built-in airOS 7 operating system featuring real-time airView spectrum analyzer, dynamic channel selection, and advanced wireless security.
Passive Gigabit PoE Support: Powered via 24V Passive PoE over the Gigabit Ethernet interface, enabling clean single-cable deployments.
Durable Weatherproof Housing: UV-stabilized plastic enclosure built to withstand extreme environmental conditions, outdoor temperatures, and high wind loading.
Extended Technical Specifications:
Hardware & Physical Parameters:
Model / SKU: R5AC-Lite (Rocket 5AC Lite)
Dimensions: 162 x 84 x 37 mm (6.38 x 3.31 x 1.46")
Weight: 250 g (8.81 oz)
Enclosure Material: Outdoor UV-Stabilized Plastic
Processor: Atheros MIPS 74Kc at 720 MHz
System Memory: 128 MB DDR2 SDRAM
Flash Storage: 16 MB NOR Flash
RF Connectors: (2) Waterproof RP-SMA (Female)
Wireless, Networking & Performance Parameters:
Operating Frequency: Worldwide: 5150 – 5875 MHz (USA / FCC: 5725 – 5850 MHz)
Protocol / Technology: airMAX ac (802.11ac)
Maximum Throughput: 500+ Mbps (80 MHz channel width)
Supported Channel Bandwidths: PtP Mode: 10/20/30/40/50/60/80 MHz | PtMP Mode: 10/20/30/40 MHz
Maximum Output Power: 27 dBm (500 mW)
Networking Interface: (1) 10/100/1000 Mbps Gigabit Ethernet RJ45 Port
Wireless Encryption: WPA2-PSK (AES)
Link Distance: 50+ km (Line-of-Sight, paired with airMAX RocketDish)
Electrical & Environmental Parameters:
Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
Max. Power Consumption: 8.5W
Supported Voltage Range: 20 to 26V DC
ESD/EMP Protection: Air: ±24 kV, Contact: ±24 kV
Ambient Operating Temperature: -40 to 80° C (-40 to 176° F)
Ambient Operating Humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC
