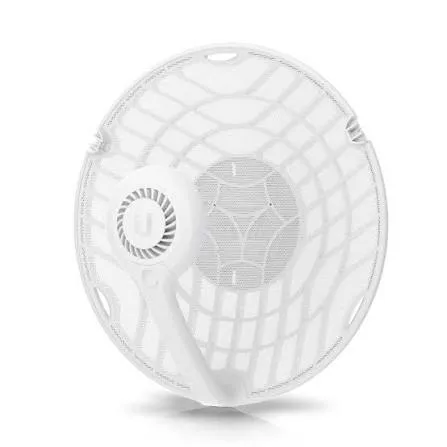

The Ubiquiti airFiber 60 Long Range (Model: AF60-LR) is a high-capacity 60 GHz wireless bridging unit purpose-built for enterprise backhaul, ISP network expansion, and long-range building-to-building connectivity. Operating in the 60 GHz millimeter-wave spectrum, the device avoids crowded sub-6 GHz frequencies to deliver high-speed, interference-free transmission with near-zero latency.
Featuring an integrated 38 dBi parabolic dish antenna, the AF60-LR is engineered to maintain high-throughput link margins across long distances reaching over 12 kilometers. The unit includes a 5 GHz radio operating as an automated failover backup to ensure continuous link availability during extreme weather conditions. Managed centrally through the Ubiquiti Internet Service Provider (UISP) platform, it features a Gigabit Ethernet port, integrated GPS for synchronization, and a precision pole-mounting bracket with elevation and azimuth fine-tuning controls.
Comprehensive Key Features:
60 GHz Millimeter-Wave Spectrum: Delivers low-interference, high-capacity PtP links up to 1.95 Gbps.
Extended Range Performance: High-gain 38 dBi reflector dish enables operational PtP link distances exceeding 12 km (7.4 miles).
Automated 5 GHz Failover Radio: Built-in 5 GHz radio acts as an automatic backup link to maintain uptime during atmospheric attenuation.
Integrated GPS Synchronization: GPS timing synchronization allows clean co-location deployment and optimized spectrum efficiency.
UISP Mobile App Alignment: Dedicated Bluetooth radio enables fast setup and optical antenna alignment using the UISP app.
Precision Pole Mount Included: Heavy-duty mount with micro-adjustment controls for precise long-range beam alignment.
Extended Technical Specifications:
1. Hardware & Physical Security:
Model / SKU: AF60-LR (airFiber 60 Long Range)
Dimensions: Ø413.0 x 320.0 mm (Ø16.26 x 12.60")
Weight: Without Mount: 1.80 kg (3.97 lbs) | With Mount: 2.70 kg (5.95 lbs)
Enclosure Material: UV-Stabilized Polycarbonate, SGCC Steel
Mounting: Precision Alignment Pole Mount (Included)
Wind Loading: 420 N at 200 km/h (94.4 lbf at 125 mph)
Color: White
2. Wireless, Networking & Performance Parameters:
Operating Frequency (60 GHz): 57.0 to 71.0 GHz (Regional Dependent)
Operating Frequency (5 GHz Failover): 5.15 to 5.85 GHz
Max. Data Rates: 60 GHz: 1.95 Gbps | 5 GHz Failover: 866 Mbps
Uplink Interface: (1) GbE RJ45 Port
Management Interface: Bluetooth / UISP Network
Antenna Gain: 60 GHz: 38 dBi | 5 GHz: 11 dBi
Channel Bandwidths (60 GHz): 2160 MHz / 1080 MHz
3. Electrical & Environmental Parameters:
Power Method: 48V Passive PoE (Pairs 4, 5+; 7, 8-)
Power Supply: 48V DC, 0.65A Gigabit PoE Adapter (Included)
Max. Power Consumption: 18W
Ambient Operating Temperature: -40°C to 60°C (-40°F to 140°F)
Ambient Operating Humidity: 5% to 95% Non-condensing
Certifications: CE, FCC, IC
