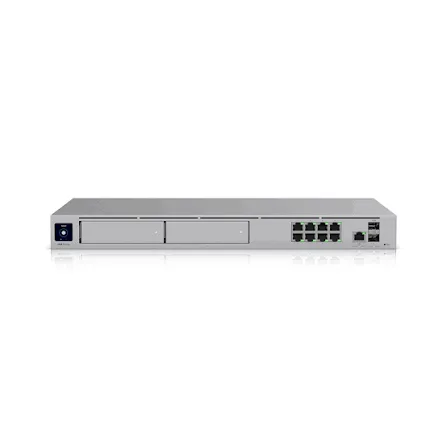

The Ubiquiti UniFi Dream Machine Pro Max (Model: UDM-Pro-Max) specification description follows:
The Ubiquiti UniFi Dream Machine Pro Max (Model: UDM-Pro-Max) is an enterprise-grade, high-capacity 10G Cloud Gateway engineered to power large-scale enterprises, campus environments, and high-density deployments. Powered by an upgraded quad-core processor and dual NVR hard drive bays with RAID protection, this gateway delivers exceptional performance, complete network application hosting, and advanced multi-gigabit routing without throughput bottlenecks.
Featuring dual-WAN capability with 10G SFP+ and 2.5 GbE interfaces for seamless multi-gigabit failover and load balancing, the UDM-Pro-Max incorporates a built-in 8-port GbE switch alongside a 10G SFP+ LAN interface. It runs the entire UniFi Application Suite (Network, Protect, Access, Talk, and Connect), offers full 5 Gbps IDS/IPS threat inspection throughput, and features a 1.3" touchscreen status display and USP-RPS support for ultimate power redundancy.
Comprehensive Key Features:
High-Capacity Enterprise Gateway: Capable of managing 200+ UniFi network devices and over 2,000 connected clients with enterprise-grade routing throughput.
Enhanced Threat Protection: Integrated Layer 7 application-aware firewall with full Intrusion Detection and Prevention Systems (IDS/IPS) delivering up to 5 Gbps throughput.
Dual 3.5" NVR Drive Bays: Features two 3.5" SATA HDD bays with automated RAID 1/RAID 5 configuration support for scalable UniFi Protect video surveillance recording.
Multi-Gigabit Dual-WAN Support: Equipped with (1) 10G SFP+ WAN port and (1) 2.5 GbE RJ45 WAN port supporting automatic failover and ISP load balancing.
High-Speed Local Connectivity: Includes (1) 10G SFP+ LAN port for high-speed downlink to core switches alongside an integrated 8-port 1 GbE RJ45 LAN switch.
DC Power Redundancy: Includes a UniFi Smart Power RPS DC input port to protect against internal AC power supply failure.
Integrated Touchscreen Display: 1.3" LCM color touchscreen provides instant real-time telemetry, bandwidth usage, and hardware diagnostic monitoring.
Extended Technical Specifications:
Hardware & Physical Parameters:
Model / SKU: UDM-Pro-Max (UniFi Dream Machine Pro Max)
Dimensions: 442.4 x 43.7 x 285.6 mm (17.42 x 1.72 x 11.24")
Weight: 5.2 kg (11.46 lb)
Enclosure Material: Aluminium CNC, SGCC Steel
Mount Material: SGCC Steel Rack Mount (1U Rackmount Included)
Processor: Quad-Core ARM® Cortex®-A57 at 2.0 GHz
System Memory: 8 GB DDR4
On-Board Storage: 32 GB eMMC + Integrated 128 GB SSD
Storage Interfaces: (2) 3.5" SATA HDD Bays (2.5" Drive Support)
Display: 1.3" Color Touchscreen LCM
Wireless, Networking & Performance Parameters:
WAN Interfaces: (1) 10G SFP+ Port, (1) 2.5 GbE RJ45 Port
LAN Interfaces: (1) 10G SFP+ Port, (8) 1 GbE RJ45 Ports
IDS/IPS Throughput: 5 Gbps (measured with iPerf3)
Managed Devices: 200+ UniFi Devices
Managed Clients: 2,000+ Concurrent Users
Management Interfaces: Ethernet, Bluetooth
Electrical & Environmental Parameters:
Power Method: (1) Universal AC Input 100–240V AC, 2A Max., 50/60 Hz; (1) USP-RPS DC Input 11.5V DC, 8.7A
Power Supply: Internal AC/DC 100W
Max. Power Consumption: 60W (excluding HDDs)
Supported Voltage Range: 100 to 240V AC
ESD/EMP Protection: Air: ±15 kV, Contact: ±8 kV
Ambient Operating Temperature: -10 to 40° C (14 to 104° F)
Ambient Operating Humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC
