The Ubiquiti NanoBeam 5AC Gen2 (Model: NBE-5AC-Gen2) is an all-in-one 5 GHz wireless bridge engineered for high-density, high-throughput outdoor broadband deployments. Integrating a high-gain 19 dBi antenna into a compact dish design, the NanoBeam maximizes RF performance while minimizing physical footprint and wind load. Powered by airMAX ac technology, it delivers low latency, high noise immunity, and proprietary TDMA protocol efficiency, achieving over 450 Mbps of real TCP/IP throughput.
Designed for simplified installation, the NBE-5AC-Gen2 incorporates a dedicated 2.4 GHz Wi-Fi management radio, allowing installers to quickly configure and align the device using the UISP / UNMS mobile application. Built with high-strength UV-stabilized plastic and featuring enhanced ESD protection, the unit provides reliable continuous operation in harsh environmental conditions.
Comprehensive Key Features:
High-Throughput airMAX AC Engine: Delivers up to 450+ Mbps real TCP/IP throughput using 5 GHz airMAX ac technology.
Integrated 19 dBi Directional Antenna: High-gain reflector design focuses RF energy to improve signal strength and immunity against co-location noise.
Dedicated Wi-Fi Management Radio: Built-in 2.4 GHz management radio enables fast, wireless setup using the mobile app.
Superior Noise Immunity: Directs RF energy in a tighter beamwidth to block and filter out surrounding RF noise.
Enhanced Protection & Durability: Improved ESD/EMP protection and a UV-resistant outdoor casing ensure long-term durability.
Flexible 3-Axis Alignment Mounting: Included pole and wall mount kit allows full 3-axis movement for precise alignment.
Extended Technical Specifications:
1. Hardware & Physical Security:
Model / SKU: NBE-5AC-Gen2 (NanoBeam 5AC Gen2)
Dimensions: 189 x 189 x 125 mm (7.4 x 7.4 x 4.9")
Weight: 530 g (1.17 lb)
Enclosure Material: Outdoor UV-Stabilized Plastic
Mounting: Pole Mount (Included), Wall Mount Kit
Status LEDs: Power, LAN, (4) Signal Strength LEDs
2. Networking & Wireless Parameters:

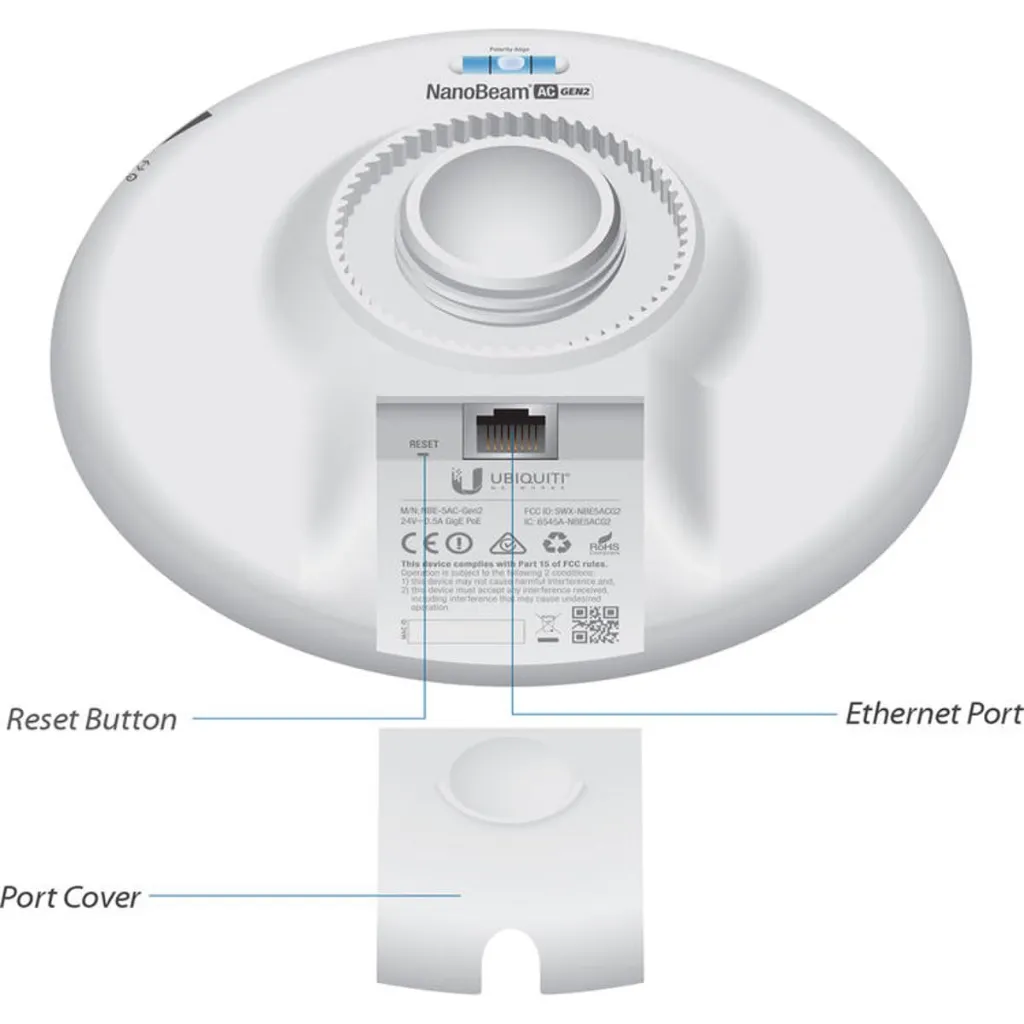

Network Interface: (1) 10/100/1000 Mbps RJ45 Ethernet Port
Management Interface: Dedicated 2.4 GHz Wi-Fi Radio
Operating Frequency: 5150 – 5875 MHz (Region Dependent)
Antenna Gain: 19 dBi
Throughput: 450+ Mbps
Max. Power Output: 25 dBm
3. Electrical & Operational Parameters:
Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
Supported Input Voltage: 20 to 26V DC
Max. Power Consumption: 8.5W
Operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Humidity: 5% to 95% Non-condensing
Certifications: CE, FCC, IC
