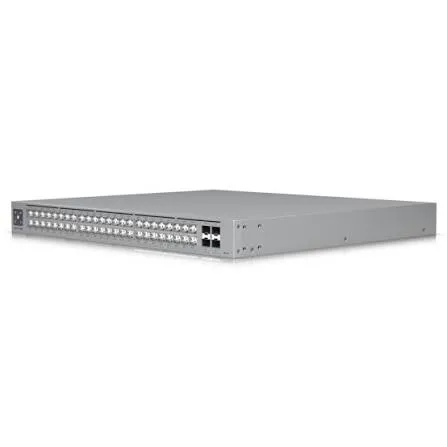

The Ubiquiti UniFi Switch Pro Max 48 PoE (Model: USW-Pro-Max-48-PoE) represents the pinnacle of multi-gigabit Layer 3 edge-to-distribution switching within the UniFi ecosystem. Purpose-built to support high-density corporate environments, high-capacity Wi-Fi 6E/Wi-Fi 7 access point deployments, and demanding Pro AV setups, the USW-Pro-Max-48-PoE delivers ultra-high data throughput alongside an impressive 720W total Power over Ethernet (PoE) capacity.
Engineered with flexible port architecture, the switch integrates 16 x 2.5 GbE RJ45 ports alongside 32 x 1 GbE RJ45 ports and 4 x 10G SFP+ fiber ports for high-bandwidth uplinks to core network infrastructure. Its PoE power delivery is highly versatile, featuring 32 x 802.3at PoE+ ports and 16 x 802.3bt 60W PoE++ ports to easily power high-draw hardware such as pan-tilt-zoom (PTZ) security cameras, door access hubs, and multi-radio access points. Designed with Ubiquiti’s innovative Etherlighting™ technology, each port housing illuminates with customizable colors to signal link speed, location, native VLAN assignment, or Pro AV profile configurations at a glance. Furthermore, Layer 3 capabilities—such as inter-VLAN routing, static routing, and DHCP server setup—ensure high-efficiency local packet switching, while redundant USP-RPS DC power input support guarantees operational continuity.
Comprehensive Key Features:
High-Density Multi-Gigabit Port Layout: Features (16) 2.5 GbE RJ45 ports, (32) 1 GbE RJ45 ports, and (4) 10G SFP+ optical uplink ports.
Massive 720W PoE Power Availability: Equipped with (32) 802.3af/at PoE+ ports (up to 32W per port) and (16) 802.3bt PoE++ ports (up to 60W per port).
Etherlighting™ Visual Port Management: Bright, customizable multi-color LED port illumination clearly displays link speeds, VLAN states, and system events visually.
Advanced Layer 3 Switching Capabilities: Supports inter-VLAN routing, static routing, local network DHCP server/relay hosting, and advanced IGMP multicast configurations.
Pro AV Optimized Profiles: Built-in hardware optimization for Pro AV protocols including Dante, Q-SYS, NDI, SDVoE, Shure, and AES67.
224 Gbps Total Switching Capacity: Non-blocking 112 Gbps throughput architecture processing up to 167 Mpps (million packets per second).
USP-RPS DC Power Redundancy: SmartPower DC input port enables failover power protection in the event of internal AC power supply failure.
1.3" LCM Color Touchscreen: Integrated front-panel status screen provides live network traffic graphs, active PoE usage, and hardware diagnostic details.
Extended Technical Specifications:
Model / SKU: USW-Pro-Max-48-PoE (UniFi Switch Pro Max 48 PoE)
Rack Form Factor: 1U Standard 19" Rack Mount
Networking Interfaces:
(16) 100M/1G/2.5 GbE RJ45 Ports
(32) 10M/100M/1 GbE RJ45 Ports
(4) 1G/10G SFP+ Optical Ports
PoE Interfaces & Output:
(32) PoE / PoE+ Ports (Ports 1–24 GbE, Ports 33–40 2.5 GbE)
(16) 60W PoE++ Ports (Ports 25–32 GbE, Ports 41–48 2.5 GbE)
Total Available PoE Budget: 720 W
Performance Metrics:
Switching Capacity: 224 Gbps
Total Non-Blocking Throughput: 112 Gbps
Forwarding Rate: 167 Mpps
MAC Address Table Size: 32,000 entries
Power Method:
(1) Universal AC Input 100–240V AC, 50/60 Hz
(1) USP-RPS DC Backup Input
Power Supply: Internal 870W AC/DC Power Supply
Max. Power Consumption: 100 W (Excluding PoE Output) / 820 W (Full Load with PoE)
Display: 1.3" Color Touchscreen LCM
ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV
Enclosure Material: SGCC Industrial Steel Casing
Operating Temperature: -5°C to 40°C (23°F to 104°F)
Operating Humidity: 10% to 90% non-condensing
