The Ubiquiti UniFi Switch Pro Max 16 PoE (Model: USW-Pro-Max-16-PoE) specification description follows:

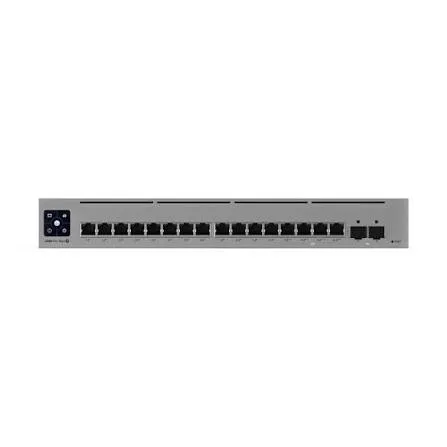

The Ubiquiti UniFi Switch Pro Max 16 PoE (Model: USW-Pro-Max-16-PoE) is a high-performance Layer 3 managed enterprise switch purpose-built for high-density multi-gigabit access networks, desktop installations, and compact rack environments. Featuring Ubiquiti's Etherlighting technology for visual port status monitoring and cable management, the switch integrates high-speed multi-gigabit RJ45 interfaces with dynamic Power over Ethernet (PoE+ and PoE++) output alongside high-capacity 10G SFP+ optical uplinks.
Equipped with 16 total RJ45 ports—including (4) 2.5 GbE PoE++ ports and (12) 1 GbE ports with PoE+ and PoE++ output—the USW-Pro-Max-16-PoE delivers a 180W total PoE power budget. Managed centrally through the UniFi Network Application, it provides enterprise Layer 3 switching capabilities, flexible desktop or rack-mounting options with optional accessories, silent thermal operation, and a 1.3" LCM color touchscreen display for real-time visual diagnostics.
Comprehensive Key Features:
- Etherlighting Technology: Patented illuminated RJ45 ports visually display port location, speed/duplex, native VLAN, and custom network status on the front panel.
- Multi-Gigabit Ethernet Connectivity: Features (4) 2.5 GbE RJ45 ports alongside (12) 1 GbE RJ45 ports to unleash full throughput for WiFi 6E/7 access points and multi-gigabit clients.
- High-Capacity PoE+ / PoE++ Budget: Supplies up to 180W total PoE availability across (4) 802.3bt PoE++ ports (up to 60W per port) and (12) 802.3at PoE+ / 802.3bt PoE++ ports.
- 10G SFP+ Optical Uplinks: Equipped with (2) 10G SFP+ ports for high-bandwidth fiber backhaul to core switches or network storage infrastructure.
- Advanced Enterprise Layer 3 Switching: Supports Inter-VLAN routing, static routing, DHCP server capabilities, and advanced traffic isolation policy enforcement.
- Integrated Touchscreen Display: 1.3" LCM color touchscreen display provides instant visual telemetry, system status, and live port throughput monitoring.
- Flexible Mounting Options: Supports clean desktop placement or standard 1U rack-mounting with optional rack-mount accessory hardware.
Extended Technical Specifications:
- Hardware & Physical Parameters:
- Model / SKU: USW-Pro-Max-16-PoE (UniFi Switch Pro Max 16 PoE)
- Dimensions: 325.1 x 160 x 43.7 mm (12.80 x 6.30 x 1.72")
- Weight: 2.1 kg (4.63 lb)
- Enclosure Material: SGCC Steel
- Mounting Options: Desktop, Wall-Mount, or 1U Rack-Mount (Rack Mount Kit Sold Separately)
- Display: 1.3" Color Touchscreen LCM
- System Status LEDs: Etherlighting Port Illumination, System Telemetry
- Wireless, Networking & Performance Parameters:
- Total RJ45 Ports: (4) 2.5 GbE Ports, (12) 1 GbE Ports
- Uplink Interfaces: (2) 10G SFP+ Ports
- PoE Interfaces: (4) 802.3bt PoE++ Ports (Pairs A 1, 2+; 3, 6- / Pairs B 4, 5+; 7, 8-), (12) 802.3at/bt PoE+/PoE++ Ports
- Max. PoE Wattage per Port: 802.3at (PoE+): 30W | 802.3bt (PoE++): 60W
- Total Available PoE Budget: 180W
- Non-Blocking Throughput: 21 Gbps
- Switching Capacity: 42 Gbps
- Forwarding Rate: 31.248 Mpps
- Management Interfaces: Ethernet, Bluetooth
- Electrical & Environmental Parameters:
- Power Method: Universal AC Input 100–240V AC, 3.2A Max., 50/60 Hz
- Power Supply: Internal AC/DC 200W Power Supply
- Max. Power Consumption: 20W (excluding PoE output)
- ESD/EMP Protection: Air: ±16 kV, Contact: ±12 kV
- Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
- Ambient Operating Humidity: 10 to 90% noncondensing
- Regulatory Certifications: CE, FCC, IC
