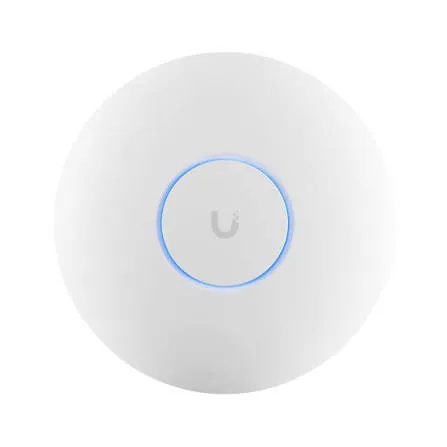

The Ubiquiti UniFi Access Point U7 Pro Max (Model: U7-Pro-Max) specification description follows:
The Ubiquiti UniFi Access Point U7 Pro Max (Model: U7-Pro-Max) is a flagship, high-density Wi-Fi 7 (802.11be) access point engineered to deliver multi-gigabit wireless performance, massive client capacity, and real-time spectral intelligence for enterprise networks, auditoriums, and high-concurrency environments. Powered by quad-radio Wi-Fi 7 architecture with a dedicated spectral analysis engine, the access point provides low-latency, high-speed wireless connectivity across 2.4 GHz, 5 GHz, and 6 GHz spectrum bands.
Featuring 8 spatial streams—comprising 2x2 MIMO on 2.4 GHz, 4x4 MIMO on 5 GHz, and 2x2 MIMO on 6 GHz—the U7 Pro Max delivers an aggregated wireless throughput of up to 14.7 Gbps. Equipped with a high-speed 2.5 GbE uplink port with PoE+ input, it incorporates multi-link operation (MLO), 320 MHz channel support on 6 GHz, integrated directional antenna design with real-time Spectral Scan capabilities, and seamless integration into the UniFi Network Application.
Comprehensive Key Features:
- Quad-Radio Wi-Fi 7 Enterprise Performance: Operates simultaneous radios across 2.4 GHz, 5 GHz, and 6 GHz bands alongside a dedicated spectral analysis radio.
- 14.7 Gbps Aggregate Wireless Throughput: Delivers 688 Mbps on 2.4 GHz, 8648 Mbps on 5 GHz, and 5765 Mbps on 6 GHz for high-bandwidth application demands.
- 8 Spatial Stream MIMO Architecture: Features 2x2 MIMO on 2.4 GHz, 4x4 MIMO on 5 GHz, and 2x2 MIMO on 6 GHz to serve over 500 concurrent client devices.
- Ultra-Wide 320 MHz Channels & 4K-QAM: Utilizes 320 MHz channel widths on the 6 GHz spectrum and 4096-QAM modulation for maximum data throughput.
- Dedicated Spectral Scan Engine: Built-in dedicated radio continuously analyzes RF interference and optimizes channel selection in real time without interrupting client traffic.
- Multi-Link Operation (MLO) Support: Enables client devices to transmit and receive data concurrently across multiple frequency bands for ultra-low latency and higher reliability.
- 2.5 GbE Multi-Gigabit PoE+ Uplink: Equipped with (1) 2.5 GbE RJ45 port supporting 802.3at PoE+ input to eliminate wired backhaul bottlenecks.
Extended Technical Specifications:
- Hardware & Physical Parameters:
- Model / SKU: U7-Pro-Max (UniFi Access Point U7 Pro Max)
- Dimensions: Ø206 x 46 mm (Ø8.11 x 1.81")
- Weight: 680 g (1.50 lb) | With Mounting Bracket: 800 g (1.76 lb)
- Enclosure Material: Polycarbonate, Aluminum Alloy
- Mount Material: SGCC Steel Wall / Ceiling Mounting Plate (Included)
- Status LEDs: System Status Ring (RGB)
- Buttons: Factory Reset
- Wireless, Networking & Performance Parameters:
- Wi-Fi Standards: 802.11a/b/g/n/ac/ax/be (Wi-Fi 6/6E/7)
- Spatial Streams: 8 Total Streams | 2.4 GHz: 2x2 | 5 GHz: 4x4 | 6 GHz: 2x2
- Radio Bands & Max. Rates: 2.4 GHz: 688 Mbps | 5 GHz: 8648 Mbps | 6 GHz: 5765 Mbps
- Antenna Gain: 2.4 GHz: 4 dBi | 5 GHz: 6 dBi | 6 GHz: 5.8 dBi
- Max. TX Power: 2.4 GHz: 22 dBm | 5 GHz: 26 dBm | 6 GHz: 23 dBm
- Concurrent Clients: 500+ Active Clients
- Networking Interface: (1) 1/2.5 Gbps Ethernet RJ45 Port
- Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
- Electrical & Environmental Parameters:
- Power Method: 802.3at PoE+ (Pairs 1, 2+; 3, 6- or Pairs 4, 5+; 7, 8-)
- Power Supply: 48V PoE+ Switch or 2.5G PoE Injector (Not Included)
- Max. Power Consumption: 22W
- Supported Voltage Range: 44 to 57V DC
- ESD/EMP Protection: Air: ±16 kV, Contact: ±12 kV
- Ambient Operating Temperature: -30 to 60° C (-22 to 140° F)
- Ambient Operating Humidity: 5 to 95% noncondensing
- Regulatory Certifications: CE, FCC, IC
| brand | Ubiquiti |
