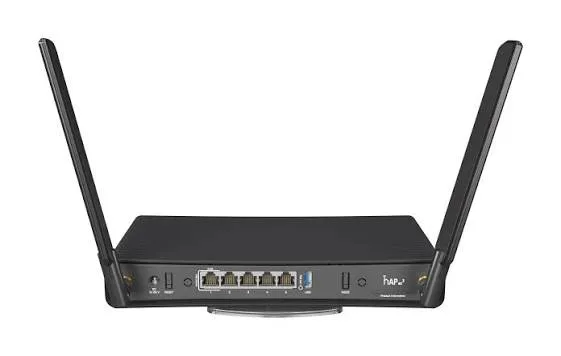

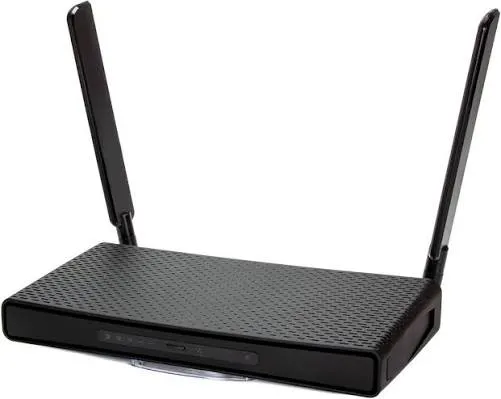

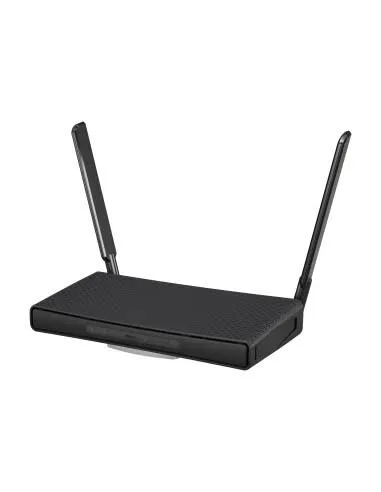

The MikroTik hAP ax³ (Model: C53UiG+5HPaxD2HPaxD) stands as the top-tier flagship device in the hAP series, combining high-power Wi-Fi 6 wireless architecture with multi-gigabit wired performance. Designed for homes with dozens of active devices, remote office power users, and small business networks, it easily outperforms previous generations by offering up to 128% higher wireless speeds in the 5 GHz band and up to 90% higher speeds in the 2.4 GHz band.
At its core, the hAP ax³ is powered by an IPQ-6010 quad-core ARM 64-bit processor running at 1.8 GHz, paired with 1 GB RAM and 128 MB NAND storage. This high-frequency processing core easily handles heavy IPsec hardware encryption, container deployments, and complex firewall policies. The Wi-Fi 6 dual-chain radio setup includes powerful external omnidirectional antennas (up to 5.5 dBi on 5 GHz) that support WPA3 security, 1024-QAM, and OFDMA, ensuring long-range coverage through thick walls and complex indoor layouts.
For wired infrastructure, the router features 1x 2.5 Gigabit Ethernet RJ45 port for ultra-fast WAN or high-speed NAS connectivity, alongside 4x Gigabit Ethernet RJ45 ports. Power input options include a standard DC barrel jack or PoE-in on Port 1 (18–28 V DC), while Port 1 also provides PoE-out to supply power to downstream network hardware. It includes a USB 3.0 Type-A port for fast external storage expansion, container files, or secondary 4G/5G cellular modem attachments. Designed for versatile positioning, it can be mounted vertically, horizontally, or on a wall using the included multi-position base. Driven by MikroTik RouterOS Level 6, it offers unrestricted administrative control over advanced routing protocols, VPN gateways, and CAPsMAN access point management.
Comprehensive Key Features
High-Power Dual-Band Wi-Fi 6 (802.11ax): Dual-chain high-power wireless radios delivering combined speeds up to 1775 Mbps with external high-gain antennas for maximum indoor coverage.
Quad-Core 1.8 GHz ARM 64-bit CPU: High-performance processing engine backed by 1 GB RAM effortlessly manages BGP routing, VPN tunnels, and containerized network apps.
2.5G Multi-Gigabit Ethernet Uplink: Includes 1x 2.5 Gbps Ethernet port for high-speed WAN or NAS interfaces alongside 4x Gigabit RJ45 copper ports.
PoE-In & PoE-Out Versatility: Accepts PoE-in on Port 1 and offers Passive PoE-out on Port 1 to power external access points, IP cameras, or client devices.
Full-Size USB 3.0 Interface: Enables high-speed external storage sharing, container log storage, or secondary cellular USB modem attachment for automatic failover.
RouterOS L6 Enterprise License: Pre-installed with RouterOS Level 6, granting unlimited VLAN configuration, advanced firewall rules, bandwidth queues, and VPN gateway services.
Extended Technical Specifications
1. Hardware & Physical Parameters
Model / SKU: C53UiG+5HPaxD2HPaxD (hAP ax³)
Dimensions: 0.251 m × 0.130 m × 0.039 m (251 × 130 × 39 mm)
Weight: 0.620 kg (620 g)
CPU: IPQ-6010 Quad-Core ARM 64-bit @ 1.8 GHz
RAM: 1 GB
Storage: 128 MB NAND
USB Interface: 1× USB 3.0 Type-A Port
Enclosure Material: Durable Black Desktop Plastic Casing (Multi-position base bracket included)
Status LEDs: Power, User LED, Port Link/Activity Indicators
2. Wireless, Networking & Performance Parameters
Wireless Standards: 2.4 GHz (802.11b/g/n/ax dual-chain high-power), 5 GHz (802.11a/n/ac/ax dual-chain high-power)
Antenna Gain: 2.4 GHz: 3.3 dBi; 5 GHz: 5.5 dBi (External Omnidirectional Antennas)
Max Wireless Data Rate: Up to 574 Mbps (2.4 GHz) + 1201 Mbps (5 GHz)
Ethernet Ports: 1× 2.5 Gbps RJ45 Port + 4× 10/100/1000 Mbps RJ45 Ports
PoE-In: Passive PoE on Port 1 (18 – 28 V DC)
PoE-Out: Passive PoE on Port 1 (Max output up to 0.625 A, matches input voltage)
Operating System: MikroTik RouterOS (License Level 6)
Architecture: ARM 64-bit
3. Electrical & Environmental Parameters
Power Method: Direct DC Power Jack (12 – 28 V DC) or Passive PoE-in on Port 1
Included Power Supply: 24 V DC / 1.5 A Power Adapter
Max Power Consumption: 38 W (15 W without attached PoE devices)
Cooling Type: Passive (Fanless)
Operating Temperature: -40°C to 70°C (-40°F to 158°F)
