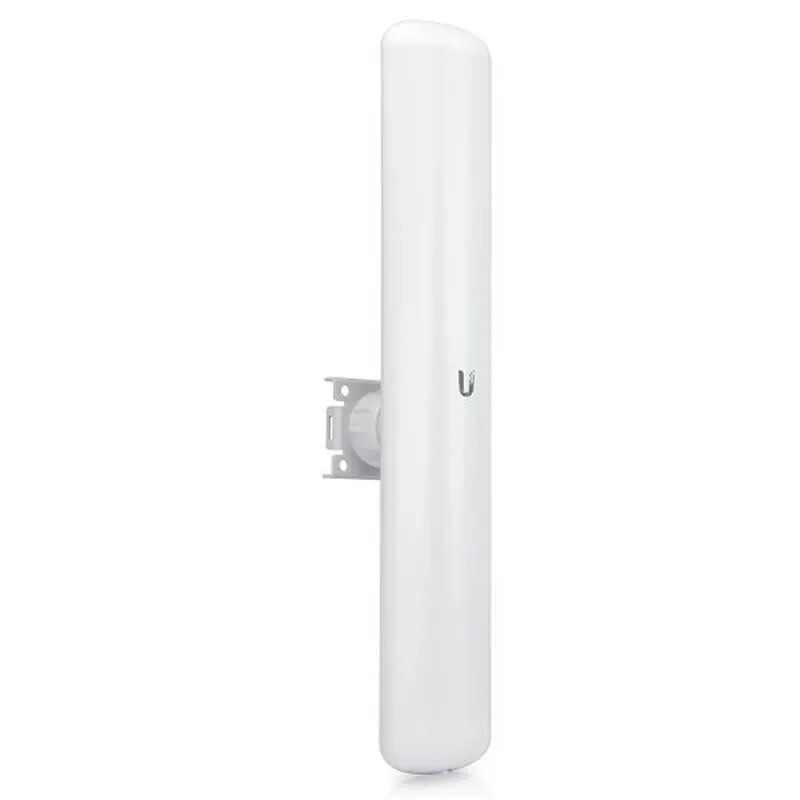

BNT-LAP-120
Ubiquiti LAP-120 is a complete radio system designed for 5GHz band working at 802.11ac standard. The LiteBeam features a unique ball joint mount that provides adjustment flexibility along three axes for versatile mounting options.
The device is equipped with integrated 25dBm radio module, 16dBi antenna and one Gigabit Ethernet port (10/100/1000Mbps). LAP-120 is designed to be a high performance and long range (up to 30km) device. It is powered by Passive PoE (PoE adapter included).
| Technical specification | |
| Processor | MIPS 74K |
| Memory | 64 MB |
| Networking interface | 1x 10/100/1000 Ethernet |
| Operating frequency | 5150 - 5875 MHz |
| Max. output power | 25dBm |
| Max. power consumption | 7 W |
| Power method | 24V, 0.3A PoE |
| Dimensions | (without mount) 452.3 x 78.7 x 54.4 mm |
| Weight | (without mount) 420 g |
| Wireless Approvals | FCC, IC, CE |
| RoHS Compliance | Tak |
| Operating temperature | -40 do 70 °C |
| Operating humidity | 5 do 95% (noncondensing) |
| Antenna specification | |
| Max. VSWR | 1.5:1 |
| Gain | 16dBi |
