The Fortinet FortiGate 40F provides an integrated, end-to-end security solution designed for enterprise branch offices, small businesses, and retail environments. Driven by Fortinet's purpose-built System-on-a-Chip 4 (SoC4) security processor, it delivers fast security inspection, hardware-accelerated SD-WAN performance, and ultra-low latency.
Designed for noise-sensitive and space-constrained environments, the FG-40F features a fanless chassis for silent operation while integrating seamlessly into the Fortinet Security Fabric ecosystem to provide multi-layered threat protection, unified visibility, and zero-trust edge protection.
Comprehensive Key Features
System-on-a-Chip Acceleration: Driven by Fortinet’s SoC4 processor combining SPU security acceleration and high-performance routing into a single hardware architecture.
Advanced Threat Defense: Delivers 1 Gbps IPS throughput, 800 Mbps NGFW performance, and 600 Mbps Threat Protection throughput.

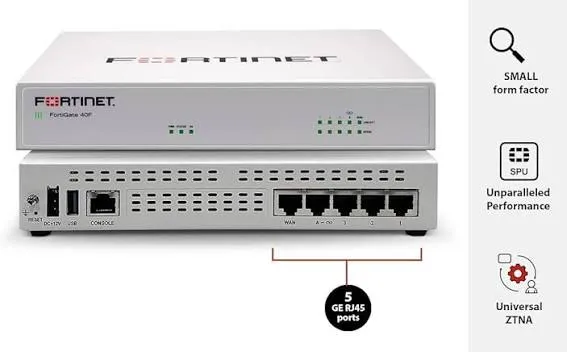

Flexible Interfaces: Features 5 GE RJ45 ports logically designated for WAN connectivity, internal LAN switching, and FortiLink switch integration.
Fanless & Silent Operation: Engineered with a fanless cooling architecture for completely silent 0 dBA operation in office environments.
Integrated Secure SD-WAN: Offers application-aware traffic steering, dynamic WAN path control, and self-healing cloud connectivity.
1. Wireless, Networking & Performance Parameters

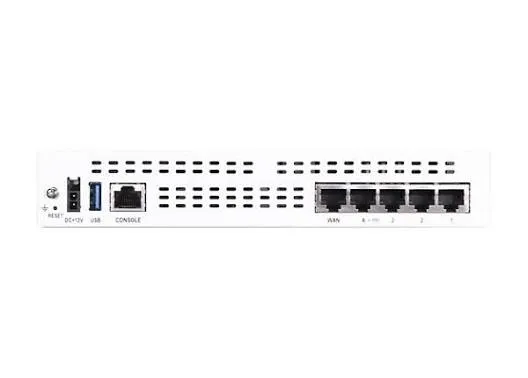

Ethernet Ports: 5 × GE RJ45 Ports (1 × WAN Port, 1 × FortiLink Port, 3 × Internal Switch Ports)
USB Ports: 1 × USB 3.0 Port
Firewall Throughput: 5 Gbps (1518 / 512 / 64 byte UDP packets)
IPS Throughput: 1 Gbps
NGFW Throughput: 800 Mbps
Threat Protection Throughput: 600 Mbps
Concurrent Sessions (TCP): 700,000
New Sessions / Second: 35,000
IPsec VPN Throughput: 4.4 Gbps
2. Electrical & Environmental Parameters
Power Method: External DC Power Adapter (100–240V AC, 50–60 Hz)
Power Rating: 12VDC, 3A
Max Power Consumption: 12.4 W
Heat Dissipation: 42.31 BTU/hr
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Operating Humidity: 10% to 90% non-condensing
| Lisence | Lisence 1 Year UTP or Lisence 2 Year UTP or Lisence 3Year UTP |
| brand | Fortinet |
