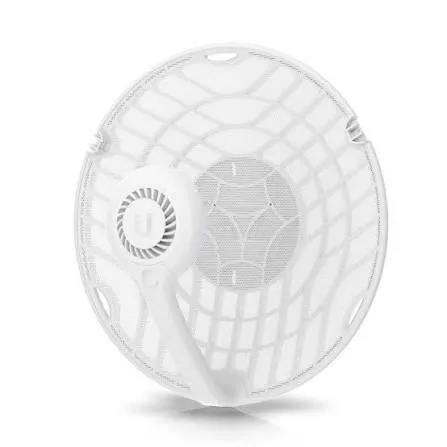

The Ubiquiti airFiber 60 Long Range (Model: AF60-LR) is a high-capacity 60 GHz wireless bridging unit purpose-built for enterprise backhaul, ISP network expansion, and long-range building-to-building connectivity. Operating in the 60 GHz millimeter-wave spectrum, the device avoids crowded sub-6 GHz frequencies to deliver high-speed, interference-free transmission with near-zero latency.
Featuring an integrated 38 dBi parabolic dish antenna, the AF60-LR is engineered to maintain high-throughput link margins across long distances reaching over 12 kilometers. The unit includes a 5 GHz radio operating as an automated failover backup to ensure continuous link availability during extreme weather conditions. Managed centrally through the Ubiquiti Internet Service Provider (UISP) platform, it features a Gigabit Ethernet port, integrated GPS for synchronization, and a precision pole-mounting bracket with elevation and azimuth fine-tuning controls.
Comprehensive Key Features:
60 GHz Millimeter-Wave Spectrum: Delivers low-interference, high-capacity PtP links up to 1.95 Gbps.
Extended Range Performance: High-gain 38 dBi reflector dish enables operational PtP link distances exceeding 12 km (7.4 miles).
Automated 5 GHz Failover Radio: Built-in 5 GHz radio acts as an automatic backup link to maintain uptime during atmospheric attenuation.
Integrated GPS Synchronization: GPS timing synchronization allows clean co-location deployment and optimized spectrum efficiency.
UISP Mobile App Alignment: Dedicated Bluetooth radio enables fast setup and optical antenna alignment using the UISP app.

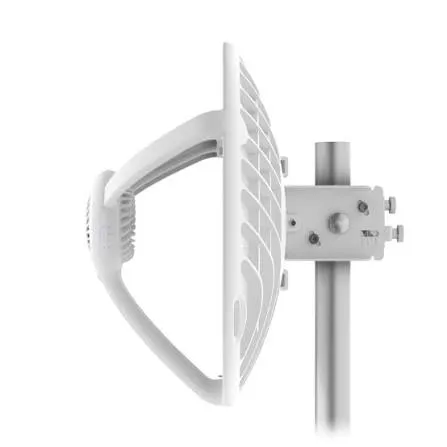

Precision Pole Mount Included: Heavy-duty mount with micro-adjustment controls for precise long-range beam alignment.
Extended Technical Specifications:
1. Hardware & Physical Security:
Model / SKU: AF60-LR (airFiber 60 Long Range)
Dimensions: Ø413.0 x 320.0 mm (Ø16.26 x 12.60")
Weight: Without Mount: 1.80 kg (3.97 lbs) | With Mount: 2.70 kg (5.95 lbs)
Enclosure Material: UV-Stabilized Polycarbonate, SGCC Steel
Mounting: Precision Alignment Pole Mount (Included)
Wind Loading: 420 N at 200 km/h (94.4 lbf at 125 mph)
Color: White
2. Wireless, Networking & Performance Parameters:
Operating Frequency (60 GHz): 57.0 to 71.0 GHz (Regional Dependent)
Operating Frequency (5 GHz Failover): 5.15 to 5.85 GHz
Max. Data Rates: 60 GHz: 1.95 Gbps | 5 GHz Failover: 866 Mbps
Uplink Interface: (1) GbE RJ45 Port
Management Interface: Bluetooth / UISP Network
Antenna Gain: 60 GHz: 38 dBi | 5 GHz: 11 dBi
Channel Bandwidths (60 GHz): 2160 MHz / 1080 MHz
3. Electrical & Environmental Parameters:
Power Method: 48V Passive PoE (Pairs 4, 5+; 7, 8-)
Power Supply: 48V DC, 0.65A Gigabit PoE Adapter (Included)
Max. Power Consumption: 18W
Ambient Operating Temperature: -40°C to 60°C (-40°F to 140°F)
Ambient Operating Humidity: 5% to 95% Non-condensing
Certifications: CE, FCC, IC
| brand | Ubiquiti |
The Apple MacBook Pro (Retina, 15-inch, Mid 2017 - A1707) delivers exceptional computing power and ultra-fast storage in a sleek, precision-milled aluminum unibody enclosure. Engineered for creative professionals, developers, and power users, it features a stunning 15.4-inch Retina display with LED backlighting, IPS technology, and P3 wide color gamut support, offering remarkable detail and color accuracy for photos and high-resolution video content.
At its core, this configuration is driven by a high-tier Quad-Core 3.1 GHz Intel Core i7 processor (Kaby Lake) with Turbo Boost speeds reaching up to 4.1 GHz. Equipped with dual graphics processing—Radeon Pro discrete graphics alongside integrated Intel HD Graphics 630—it automatically switches between processors to balance performance and battery efficiency. Packed with 16 GB of 2133 MHz LPDDR3 memory and an ultra-fast 1 TB PCIe-based onboard flash storage module, it delivers fluid multitasking and instant file access. The innovative Touch Bar with integrated Touch ID replaces the traditional function keys with dynamic, context-aware controls for maximum productivity.
Comprehensive Key Features:
Pro-Grade Quad-Core Performance: Powered by a 3.1 GHz Quad-Core Intel Core i7 processor (Turbo Boost up to 4.1 GHz) with 8 MB shared L3 cache.
Brilliant Retina Display with P3 Color: 15.4-inch IPS display featuring 500 nits brightness and P3 wide color gamut for true-to-life visual fidelity.
Interactive Touch Bar & Touch ID: Multi-Touch glass strip providing context-sensitive shortcuts alongside quick, secure Touch ID biometric authentication.
Dual Graphics Architecture: Combines discrete Radeon Pro graphics with integrated Intel HD Graphics 630 for efficient graphic rendering and power optimization.
Massive High-Speed Storage: Includes a large 1 TB PCIe-based onboard SSD delivering read/write speeds up to 3.2 GB/s.
Versatile Thunderbolt 3 Connectivity: Four high-speed USB-C / Thunderbolt 3 ports supporting power charging, DisplayPort output, and data transfers up to 40 Gbps.
Expansive Trackpad & Audio: Oversized Force Touch trackpad paired with high-fidelity stereo speakers featuring wide dynamic range and deep bass.
Extended Technical Specifications:
Model / SKU: MacBook Pro (15-inch, Mid 2017) / Model Identifier: MacBookPro14,3 / Model Number: A1707
Processor: 3.1 GHz Quad-Core Intel Core i7 (7700HQ "Kaby Lake", Turbo Boost up to 4.1 GHz) with 8 MB L3 cache
Graphics:
Discrete Graphics: AMD Radeon Pro 560 with 4 GB of GDDR5 memory (or Radeon Pro 555)
Integrated Graphics: Intel HD Graphics 630
Display: 15.4-inch (diagonal) LED-backlit IPS Retina display (2880 x 1800 native resolution at 220 ppi, 500 nits, P3 color)
Memory: 16 GB of 2133 MHz LPDDR3 onboard memory
Storage: 1 TB PCIe-based onboard flash storage
Wireless & Connectivity:
Wi-Fi: 802.11ac Wi-Fi wireless networking; IEEE 802.11a/b/g/n compatible
Bluetooth: Bluetooth 4.2 wireless technology
I/O Ports:
(4) Thunderbolt 3 (USB-C) ports (Supports Charging, DisplayPort, Thunderbolt 40 Gbps, USB 3.1 Gen 2 up to 10 Gbps)
(1) 3.5 mm headphone jack
Audio & Camera:
Stereo speakers with high dynamic range and 3 microphones
720p FaceTime HD camera
Keyboard & Input: Full-size backlit keyboard with Touch Bar and integrated Touch ID sensor; Force Touch trackpad
Battery & Power: Built-in 76.0-watt-hour lithium-polymer battery; 85W USB-C Power Adapter
