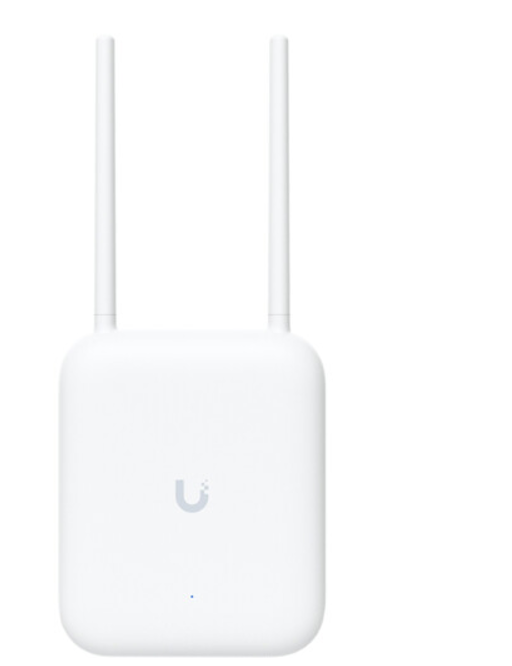

The Ubiquiti UniFi 7 Pro Outdoor (Model: U7-Outdoor) is an outdoor Wi-Fi 7 access point engineered to deliver high-capacity multi-gigabit connectivity in open-air environments. Built on the IEEE 802.11be standard, the U7-Outdoor leverages 320 MHz channel bandwidth on 6 GHz, 4096-QAM modulation, and Multi-Link Operation (MLO) to eliminate latency and maintain high client density across stadium seating, outdoor hospitality grounds, industrial yards, and municipal parks.
Designed with specialized RF architecture, the U7-Outdoor incorporates an internal high-gain directional antenna for long-range focused beam coverage, while including two external RP-SMA connectors paired with detachable omnidirectional antennas for flexible 360-degree coverage customization. Protected within a ruggedized, IPX6-rated weatherproof casing, the device resists driving rain, heavy dust, and extreme temperature shifts. Powered via 802.3at PoE+ through its single 2.5 GbE uplink port, it integrates seamlessly into the UniFi Network application for centralized remote monitoring, dynamic channel management, and guest portal control.
Comprehensive Key Features:
Next-Generation Outdoor Wi-Fi 7: Full tri-band performance (6 GHz, 5 GHz, and 2.4 GHz) providing aggregate wireless throughput up to 9.3 Gbps.
Dual-Antenna Architecture: Integrated directional software-switchable super antenna (45° beamwidth) plus included external omni-directional antennas.
320 MHz Channel Width & 4096-QAM: Utilizes ultra-wide 320 MHz spectrum on 6 GHz and 4K-QAM modulation for dense data transmission.
2.5 GbE High-Speed Uplink: Single 2.5 Gigabit Ethernet RJ45 port prevents wired backhaul bottlenecks.
IPX6 Weatherproof Enclosure: Heavy-duty, industrial UV-stabilized casing withstands extreme outdoor climates.
Powered via 802.3at PoE+: Runs on standard 802.3at Power over Ethernet, simplifying long outdoor cabling runs.
Versatile Mounting Options: Complete with wall and pole mounting hardware for flexible exterior installations.
Unified UniFi Network Management: Centralized provisioning, automated RF optimization, wireless meshing, and real-time topology mapping via UniFi Network.
Extended Technical Specifications:
1. Hardware & Wireless RF Architecture:
Model / SKU: U7-Outdoor (UniFi 7 Pro Outdoor)
Wi-Fi Standards: IEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)
Frequency Bands & Spatial Streams:
6 GHz Band: 2x2 802.11be (320 MHz Channel Width)
5 GHz Band: 2x2 802.11be (240 MHz / 160 MHz Channel Width)
2.4 GHz Band: 2x2 802.11be (40 MHz Channel Width)
Max. Data Throughput:
6 GHz Band: Up to 5.7 Gbps
5 GHz Band: Up to 2.8 Gbps
2.4 GHz Band: Up to 688 Mbps
Antenna Gain (Internal Directional):
6 GHz: 8.0 dBi
5 GHz: 8.0 dBi
2.4 GHz: 6.0 dBi
Antenna Gain (External Omni-Antennas Included):
5 GHz: 4.0 dBi
2.4 GHz: 3.0 dBi
Max. TX Transmit Power:
6 GHz: 23 dBm
5 GHz: 26 dBm
2.4 GHz: 23 dBm
Concurrent Clients: 500+ Active Clients
2. Physical Interfaces, Power & Environmental:
Networking Interface: (1) 2.5 GbE RJ45 Port (2.5G/1G/100M)
RF Connectors: (2) RP-SMA Female Connectors for optional/included omni antennas
Power Method: 802.3at PoE+ (44–57V DC)
Power Supply: UniFi PoE Switch or 48V, 0.5A 2.5G PoE Adapter (Not Included)
Max. Power Consumption: 21 W
Enclosure Materials: UV-Stabilized Polycarbonate, Aluminum Alloy
Weatherproofing Rating: IPX6 Rated
Operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Humidity: 5% to 95% non-condensing
Certifications: CE, FCC, IC
| brand | Ubiquiti |
The Apple MacBook Pro (Retina, 15-inch, Mid 2017 - A1707) delivers exceptional computing power and ultra-fast storage in a sleek, precision-milled aluminum unibody enclosure. Engineered for creative professionals, developers, and power users, it features a stunning 15.4-inch Retina display with LED backlighting, IPS technology, and P3 wide color gamut support, offering remarkable detail and color accuracy for photos and high-resolution video content.
At its core, this configuration is driven by a high-tier Quad-Core 3.1 GHz Intel Core i7 processor (Kaby Lake) with Turbo Boost speeds reaching up to 4.1 GHz. Equipped with dual graphics processing—Radeon Pro discrete graphics alongside integrated Intel HD Graphics 630—it automatically switches between processors to balance performance and battery efficiency. Packed with 16 GB of 2133 MHz LPDDR3 memory and an ultra-fast 1 TB PCIe-based onboard flash storage module, it delivers fluid multitasking and instant file access. The innovative Touch Bar with integrated Touch ID replaces the traditional function keys with dynamic, context-aware controls for maximum productivity.
Comprehensive Key Features:
Pro-Grade Quad-Core Performance: Powered by a 3.1 GHz Quad-Core Intel Core i7 processor (Turbo Boost up to 4.1 GHz) with 8 MB shared L3 cache.
Brilliant Retina Display with P3 Color: 15.4-inch IPS display featuring 500 nits brightness and P3 wide color gamut for true-to-life visual fidelity.
Interactive Touch Bar & Touch ID: Multi-Touch glass strip providing context-sensitive shortcuts alongside quick, secure Touch ID biometric authentication.
Dual Graphics Architecture: Combines discrete Radeon Pro graphics with integrated Intel HD Graphics 630 for efficient graphic rendering and power optimization.
Massive High-Speed Storage: Includes a large 1 TB PCIe-based onboard SSD delivering read/write speeds up to 3.2 GB/s.
Versatile Thunderbolt 3 Connectivity: Four high-speed USB-C / Thunderbolt 3 ports supporting power charging, DisplayPort output, and data transfers up to 40 Gbps.
Expansive Trackpad & Audio: Oversized Force Touch trackpad paired with high-fidelity stereo speakers featuring wide dynamic range and deep bass.
Extended Technical Specifications:
Model / SKU: MacBook Pro (15-inch, Mid 2017) / Model Identifier: MacBookPro14,3 / Model Number: A1707
Processor: 3.1 GHz Quad-Core Intel Core i7 (7700HQ "Kaby Lake", Turbo Boost up to 4.1 GHz) with 8 MB L3 cache
Graphics:
Discrete Graphics: AMD Radeon Pro 560 with 4 GB of GDDR5 memory (or Radeon Pro 555)
Integrated Graphics: Intel HD Graphics 630
Display: 15.4-inch (diagonal) LED-backlit IPS Retina display (2880 x 1800 native resolution at 220 ppi, 500 nits, P3 color)
Memory: 16 GB of 2133 MHz LPDDR3 onboard memory
Storage: 1 TB PCIe-based onboard flash storage
Wireless & Connectivity:
Wi-Fi: 802.11ac Wi-Fi wireless networking; IEEE 802.11a/b/g/n compatible
Bluetooth: Bluetooth 4.2 wireless technology
I/O Ports:
(4) Thunderbolt 3 (USB-C) ports (Supports Charging, DisplayPort, Thunderbolt 40 Gbps, USB 3.1 Gen 2 up to 10 Gbps)
(1) 3.5 mm headphone jack
Audio & Camera:
Stereo speakers with high dynamic range and 3 microphones
720p FaceTime HD camera
Keyboard & Input: Full-size backlit keyboard with Touch Bar and integrated Touch ID sensor; Force Touch trackpad
Battery & Power: Built-in 76.0-watt-hour lithium-polymer battery; 85W USB-C Power Adapter
