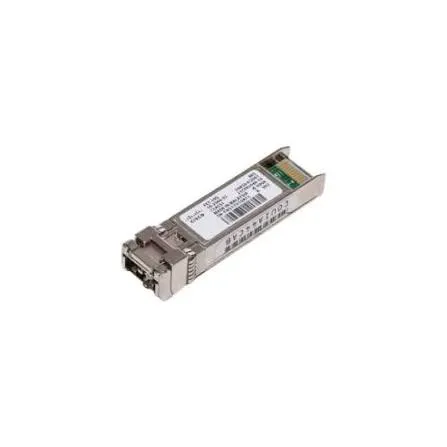

The Cisco 10GBASE-LR SFP+ Transceiver Module, Model SFP-10G-LR, is an enterprise-class, hot-swappable input/output device engineered to provide high-speed, reliable 10-Gigabit Ethernet connectivity across single-mode fiber (SMF) optical infrastructures. Operating at a nominal wavelength of 1310 nm, this module is capable of transmitting data over distances up to 10 kilometers on standard Single-Mode Fiber (G.652), making it the industry standard for high-capacity inter-switch links, enterprise data center interconnects, and campus core distribution backbones.
Equipped with Digital Optical Monitoring (DOM) support, the SFP-10G-LR provides real-time diagnostic monitoring of critical transceiver parameters—including optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage—enabling proactive network management. Designed for maximum compatibility and seamless operation, it features a standard dual LC/PC connector interface and complies fully with IEEE 802.3ae 10GBASE-LR standards, SFP+ Multi-Source Agreement (MSA), and Cisco quality controls.
Key Features & Advanced Capabilities:
High-Speed 10G Ethernet Connectivity: Delivers robust 10 Gbps data throughput optimized for high-performance enterprise networks and data center architectures.
1310 nm Long-Range Optics: Utilizes high-reliability Fabry-Perot or DFB laser optics operating at 1310 nm to achieve transmission spans up to 10 km over standard single-mode fiber.
Digital Optical Monitoring (DOM): Integrated diagnostic capabilities provide live operational telemetry for real-time tracking of optical power levels, voltage, and internal temperatures.
Hot-Swappable Architecture: Allows seamless installation, removal, or replacement in live Cisco switches, routers, and modular slots without causing network downtime.
Low Power Consumption & High Efficiency: Engineered for energy-efficient operation with minimal thermal dissipation, fitting standard high-density switch configurations.
Industry Standards Compliance: Fully compliant with SFP+ MSA, SFF-8431, and IEEE 802.3ae 10GBASE-LR specifications.
| brand | Cisco |
The Apple MacBook Pro (Retina, 15-inch, Mid 2017 - A1707) delivers exceptional computing power and ultra-fast storage in a sleek, precision-milled aluminum unibody enclosure. Engineered for creative professionals, developers, and power users, it features a stunning 15.4-inch Retina display with LED backlighting, IPS technology, and P3 wide color gamut support, offering remarkable detail and color accuracy for photos and high-resolution video content.
At its core, this configuration is driven by a high-tier Quad-Core 3.1 GHz Intel Core i7 processor (Kaby Lake) with Turbo Boost speeds reaching up to 4.1 GHz. Equipped with dual graphics processing—Radeon Pro discrete graphics alongside integrated Intel HD Graphics 630—it automatically switches between processors to balance performance and battery efficiency. Packed with 16 GB of 2133 MHz LPDDR3 memory and an ultra-fast 1 TB PCIe-based onboard flash storage module, it delivers fluid multitasking and instant file access. The innovative Touch Bar with integrated Touch ID replaces the traditional function keys with dynamic, context-aware controls for maximum productivity.
Comprehensive Key Features:
Pro-Grade Quad-Core Performance: Powered by a 3.1 GHz Quad-Core Intel Core i7 processor (Turbo Boost up to 4.1 GHz) with 8 MB shared L3 cache.
Brilliant Retina Display with P3 Color: 15.4-inch IPS display featuring 500 nits brightness and P3 wide color gamut for true-to-life visual fidelity.
Interactive Touch Bar & Touch ID: Multi-Touch glass strip providing context-sensitive shortcuts alongside quick, secure Touch ID biometric authentication.
Dual Graphics Architecture: Combines discrete Radeon Pro graphics with integrated Intel HD Graphics 630 for efficient graphic rendering and power optimization.
Massive High-Speed Storage: Includes a large 1 TB PCIe-based onboard SSD delivering read/write speeds up to 3.2 GB/s.
Versatile Thunderbolt 3 Connectivity: Four high-speed USB-C / Thunderbolt 3 ports supporting power charging, DisplayPort output, and data transfers up to 40 Gbps.
Expansive Trackpad & Audio: Oversized Force Touch trackpad paired with high-fidelity stereo speakers featuring wide dynamic range and deep bass.
Extended Technical Specifications:
Model / SKU: MacBook Pro (15-inch, Mid 2017) / Model Identifier: MacBookPro14,3 / Model Number: A1707
Processor: 3.1 GHz Quad-Core Intel Core i7 (7700HQ "Kaby Lake", Turbo Boost up to 4.1 GHz) with 8 MB L3 cache
Graphics:
Discrete Graphics: AMD Radeon Pro 560 with 4 GB of GDDR5 memory (or Radeon Pro 555)
Integrated Graphics: Intel HD Graphics 630
Display: 15.4-inch (diagonal) LED-backlit IPS Retina display (2880 x 1800 native resolution at 220 ppi, 500 nits, P3 color)
Memory: 16 GB of 2133 MHz LPDDR3 onboard memory
Storage: 1 TB PCIe-based onboard flash storage
Wireless & Connectivity:
Wi-Fi: 802.11ac Wi-Fi wireless networking; IEEE 802.11a/b/g/n compatible
Bluetooth: Bluetooth 4.2 wireless technology
I/O Ports:
(4) Thunderbolt 3 (USB-C) ports (Supports Charging, DisplayPort, Thunderbolt 40 Gbps, USB 3.1 Gen 2 up to 10 Gbps)
(1) 3.5 mm headphone jack
Audio & Camera:
Stereo speakers with high dynamic range and 3 microphones
720p FaceTime HD camera
Keyboard & Input: Full-size backlit keyboard with Touch Bar and integrated Touch ID sensor; Force Touch trackpad
Battery & Power: Built-in 76.0-watt-hour lithium-polymer battery; 85W USB-C Power Adapter
