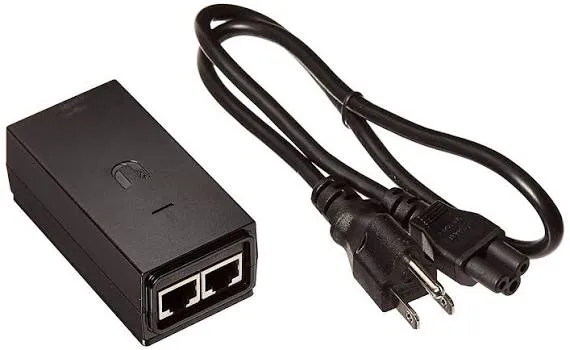

The Ubiquiti PoE Adapter 24V 12W Gigabit (Model: POE-24-12W-G / POE-24-12W-G-C) specification description follows:
The Ubiquiti PoE Adapter 24V 12W Gigabit (Model: POE-24-12W-G / POE-24-12W-G-C) is a high-reliability Power over Ethernet injector designed to supply power and data connectivity to 24V Passive PoE-powered devices. Purpose-built for Ubiquiti airMAX, airFiber, UniFi, and Building-to-Building Bridge customer premise equipment (CPE) and access points, it provides clean, stable power delivery alongside Gigabit Ethernet transmission speeds.
Equipped with dual Gigabit Ethernet ports (Data In and PoE/Data Out), the adapter incorporates advanced earth grounding, electrostatic discharge (ESD) protection, and surge suppression hardware to safeguard connected devices against power spikes and environmental electrical events. Featuring a compact physical housing, it includes a removable wall-mount bracket and an LED power indicator for easy deployment and status monitoring.
Comprehensive Key Features:
- 24V DC Passive PoE Power Delivery: Delivers reliable 24V DC power up to 12W (0.5A) via Ethernet cable pairs 4, 5+ and 7, 8-.
- Gigabit Ethernet Throughput: Features 10/100/1000 Mbps RJ45 ports to support high-speed network traffic without throughput bottlenecks.
- Advanced ESD & Surge Protection: Built-in surge protection and earth grounding protect sensitive connected network equipment from electrostatic discharge and electrical surges.
- Clamping Protection & Maximum Surge Discharge: Features specialized clamping protection and peak pulse current handling to mitigate high-voltage transient events.
- Integrated Status LED: Includes a front-panel LED indicator to provide instant visual verification of power status.
- Removable Wall-Mount Bracket: Comes equipped with a detachable mounting bracket for easy, secure mounting on walls or smooth surfaces.
- Seamless Device Compatibility: Fully compatible with Ubiquiti 24V passive PoE hardware, including airMAX AC, NanoStation, PowerBeam, and LiteBeam devices.
Extended Technical Specifications:
- Hardware & Physical Parameters:
- Model / SKU: POE-24-12W-G / POE-24-12W-G-C
- Dimensions: 87 x 44 x 29 mm (3.43 x 1.73 x 1.14")
- Weight: 99.4 g (3.51 oz)
- Enclosure Material: Polycarbonate
- Mounting Option: Wall-Mountable (Bracket Included)
- Status Indicator: Power LED
- AC Cable Input: IEC-320 C6 Input Interface (3-Pin Grounded)
- Wireless, Networking & Performance Parameters:
- LAN Interfaces: (1) 10/100/1000 Mbps Data In Port, (1) 10/100/1000 Mbps PoE / Data Out Port
- Output Voltage: 24V DC @ 0.5A
- Output Power Capacity: 12W Max.
- Efficiency: 75+%
- Switching Frequency: 50 kHz
- Response Time: <1 ns (Clamping Protection)
- Surge Protection: Difference and Common Mode Protection
- Electrical & Environmental Parameters:
- Input Voltage: 100–240V AC @ 50/60 Hz
- Input Current: 0.3A @ 120V AC, 0.2A @ 240V AC
- Inrush Current: <30A Peak @ 120V AC, <60A Peak @ 230V AC
- Peak Pulse Current: 36A (8/20 µs) Power, 20A (8/20 µs) Data
- Shunt Capacitance: <5 pF Data
- Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
- Ambient Operating Humidity: 35 to 95% noncondensing
- Regulatory Certifications: CE, FCC, IC, UL
- The Ubiquiti PoE Adapter 24V 12W Gigabit (Model: POE-24-12W-G / POE-24-12W-G-C) specification description follows:
- The Ubiquiti PoE Adapter 24V 12W Gigabit (Model: POE-24-12W-G / POE-24-12W-G-C) is a high-reliability Power over Ethernet injector designed to supply power and data connectivity to 24V Passive PoE-powered devices. Purpose-built for Ubiquiti airMAX, airFiber, UniFi, and Building-to-Building Bridge customer premise equipment (CPE) and access points, it provides clean, stable power delivery alongside Gigabit Ethernet transmission speeds.
- Equipped with dual Gigabit Ethernet ports (Data In and PoE/Data Out), the adapter incorporates advanced earth grounding, electrostatic discharge (ESD) protection, and surge suppression hardware to safeguard connected devices against power spikes and environmental electrical events. Featuring a compact physical housing, it includes a removable wall-mount bracket and an LED power indicator for easy deployment and status monitoring.
- Comprehensive Key Features:
- 24V DC Passive PoE Power Delivery: Delivers reliable 24V DC power up to 12W (0.5A) via Ethernet cable pairs 4, 5+ and 7, 8-.
- Gigabit Ethernet Throughput: Features 10/100/1000 Mbps RJ45 ports to support high-speed network traffic without throughput bottlenecks.
- Advanced ESD & Surge Protection: Built-in surge protection and earth grounding protect sensitive connected network equipment from electrostatic discharge and electrical surges.
- Clamping Protection & Maximum Surge Discharge: Features specialized clamping protection and peak pulse current handling to mitigate high-voltage transient events.
- Integrated Status LED: Includes a front-panel LED indicator to provide instant visual verification of power status.
- Removable Wall-Mount Bracket: Comes equipped with a detachable mounting bracket for easy, secure mounting on walls or smooth surfaces.
- Seamless Device Compatibility: Fully compatible with Ubiquiti 24V passive PoE hardware, including airMAX AC, NanoStation, PowerBeam, and LiteBeam devices.
- 24V DC Passive PoE Power Delivery: Delivers reliable 24V DC power up to 12W (0.5A) via Ethernet cable pairs 4, 5+ and 7, 8-.
- Hardware & Physical Parameters:
- Model / SKU: POE-24-12W-G / POE-24-12W-G-C
- Dimensions: 87 x 44 x 29 mm (3.43 x 1.73 x 1.14")
- Weight: 99.4 g (3.51 oz)
- Enclosure Material: Polycarbonate
- Mounting Option: Wall-Mountable (Bracket Included)
- Status Indicator: Power LED
- AC Cable Input: IEC-320 C6 Input Interface (3-Pin Grounded)
- Wireless, Networking & Performance Parameters:
- LAN Interfaces: (1) 10/100/1000 Mbps Data In Port, (1) 10/100/1000 Mbps PoE / Data Out Port
- Output Voltage: 24V DC @ 0.5A
- Output Power Capacity: 12W Max.
- Efficiency: 75+%
- Switching Frequency: 50 kHz
- Response Time: <1 ns (Clamping Protection)
- Surge Protection: Difference and Common Mode Protection
- Electrical & Environmental Parameters:
- Hardware & Physical Parameters:
- Input Voltage: 100–240V AC @ 50/60 Hz
- Input Current: 0.3A @ 120V AC, 0.2A @ 240V AC
- Inrush Current: <30A Peak @ 120V AC, <60A Peak @ 230V AC
- Peak Pulse Current: 36A (8/20 µs) Power, 20A (8/20 µs) Data
- Shunt Capacitance: <5 pF Data
- Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
- Ambient Operating Humidity: 35 to 95% noncondensing
- Regulatory Certifications: CE, FCC, IC, UL
Extended Technical Specifications:
