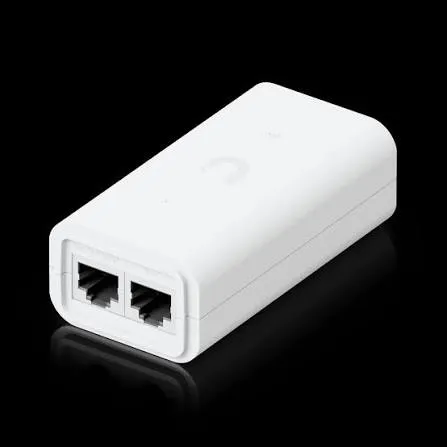

The Ubiquiti 24V 12W Passive PoE Adapter (Model: POE-24-12W / POE-24-12W-G) specification description follows:
The Ubiquiti 24V 12W Passive PoE Adapter (Model: POE-24-12W / POE-24-12W-G) is a compact power injection device engineered to deliver continuous operational power and data transmission to Ubiquiti wireless devices, including airMAX, airMesh, and UniFi CPE hardware. Designed to protect network infrastructure against localized electrical hazards, the adapter provides regulated 24V DC power over standard Ethernet cabling.
Featuring integrated electrostatic discharge (ESD) mitigation, transient surge protection, and peak current clamping, the POE-24-12W safeguards outdoor radio equipment against atmospheric discharge and voltage spikes. Available in Gigabit (POE-24-12W-G) and Fast Ethernet configurations, the adapter incorporates an LED status indicator, a grounded IEC-320 C6 AC connection, and optional wall-mounting bracket compatibility.
Comprehensive Key Features:
- Regulated 24V DC Power Output: Supplies up to 12W (24V DC @ 0.5A) of continuous passive Power over Ethernet to power wireless radios and customer premise equipment.
- Earth Grounding & ESD Protection: Features built-in surge protection, ESD suppression, and clamping mechanisms to protect sensitive wireless equipment from electrical damage.
- Universal AC Power Input: Supports auto-sensing 100–240V AC power input for seamless global deployments.
- Real-Time LED Telemetry: Features a front-panel LED indicator providing instant visual confirmation of operational power status.
- High-Speed Ethernet Pass-Through: Delivers transparent Gigabit (10/100/1000 Mbps) or Fast Ethernet (10/100 Mbps) data pass-through without throughput degradation.
- High Efficiency Design: Engineered for low standby power consumption and maximum operating thermal efficiency.
- Compact Wall-Mountable Housing: Lightweight, space-saving form factor supports desktop placement or clean wall mounting via an optional mounting bracket.
Extended Technical Specifications:
- Hardware & Physical Parameters:
- Model / SKU: POE-24-12W / POE-24-12W-G (24V 12W PoE Adapter)
- Dimensions: 87 x 44 x 29 mm (3.43 x 1.73 x 1.14")
- Weight: 99.3 g (3.50 oz)
- Enclosure Material: Polycarbonate
- AC Connector / Inlet: IEC-320 C6 (3-Prong Grounded)
- Status LEDs: Power LED Indicator (Green)
- Mounting Options: Desktop, Wall Mount (Bracket Optional)
- Wireless, Networking & Performance Parameters:
- Data In / LAN Interface: (1) 10/100/1000 Mbps Gigabit RJ45 Port (POE-24-12W-G) or (1) 10/100 Mbps RJ45 Port (POE-24-12W)
- Power Out / PoE Interface: (1) 10/100/1000 Mbps Gigabit RJ45 Port (POE-24-12W-G) or (1) 10/100 Mbps RJ45 Port (POE-24-12W)
- Output Voltage: 24V DC @ 0.5A
- Rated Output Power: 12W
- Passive PoE Pinout: Pins 4, 5+ (Positive) / Pins 7, 8- (Return)
- Dynamic Efficiency: 75+%
- Electrical & Environmental Parameters:
- Input Voltage Range: 100–240V AC @ 50/60 Hz
- Input Current: 0.3A @ 120V AC / 0.2A @ 240V AC
- Inrush Current: <30A Peak @ 120V AC / <60A Peak @ 230V AC
- Surge Protection: Difference and Common Mode
- Clamping Protection: 11V Data, 60V Power
- Max. Surge Discharge: 1500A (8/20 µs) Power
- ESD/EMP Protection: Air: ±16 kV, Contact: ±8 kV
- Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
- Ambient Operating Humidity: 35 to 95% noncondensing
- Regulatory Certifications: CE, FCC, IC, UL, GS, RoHS
