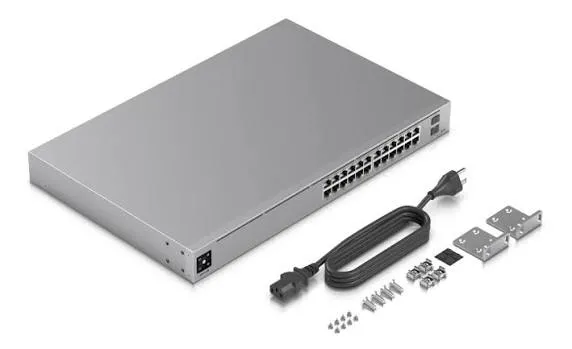

The Ubiquiti UniFi Switch Pro HD 24 PoE 600W (Model: USW-Pro-HD-24-PoE) is an enterprise-class 1U rack-mountable Layer 3 managed switch engineered to deliver high-density multi-gigabit connectivity and power distribution for modern infrastructure. Positioned as a high-performance solution within the UniFi family, it eliminates network bottlenecks by pairing 2.5 GbE and 10 GbE client interfaces directly with high-wattage 802.3bt PoE++ power delivery.
Featuring 24 total Ethernet ports—including 22 x 2.5 GbE RJ45 ports and 2 x 10 GbE RJ45 ports—the USW-Pro-HD-24-PoE supports high-bandwidth endpoints such as multi-radio Wi-Fi 7 access points, HD IP cameras, and Pro AV encoders. Every RJ45 port supplies auto-sensing PoE++ (up to 64W per port) backed by a 600W internal PoE power budget. Four 10G SFP+ optical ports provide high-speed uplinks to core switches and gateways. Equipped with Ubiquiti's Etherlighting™ technology, each port illuminates with customizable multi-color LEDs indicating link speed, native VLAN, or Pro AV profile configurations at a glance. Built-in Layer 3 routing capabilities, redundant USP-RPS DC power backup, and a front-panel 1.3" LCM color touchscreen ensure seamless operation and monitoring.
Comprehensive Key Features:
Full Multi-Gigabit Port Density: Equipped with (22) 2.5 GbE RJ45 ports, (2) 10 GbE RJ45 ports, and (4) 10G SFP+ fiber uplink ports.
600W PoE++ Power Capacity: All 24 RJ45 ports support 802.3bt PoE++ (up to 64W per port) with a total available PoE budget of 600W.
Etherlighting™ Visual Port Identification: Multi-color LED illuminated ports clearly indicate link speeds, active VLAN states, and Pro AV profiles.
Advanced Layer 3 Managed Features: Supports inter-VLAN routing, static routing, local DHCP server hosting, DHCP relay, and advanced IGMP multicast routing.
Pro AV Hardware Optimizations: Pre-configured optimization profiles for Dante, Q-SYS, NDI, SDVoE, Shure, AES67, and Crestron deployments.
230 Gbps Total Switching Capacity: Non-blocking 115 Gbps throughput architecture processing up to 171 Mpps (million packets per second).
USP-RPS DC Power Failover: Dedicated SmartPower DC backup input provides seamless power redundancy in case of primary AC source disruption.
1.3" Color Touchscreen LCM: Provides real-time network traffic graphs, active PoE wattage draw, link statuses, and system diagnostics.
Extended Technical Specifications:
Model / SKU: USW-Pro-HD-24-PoE (UniFi Switch Pro HD 24 PoE 600W)
Rack Form Factor: 1U Standard 19" Rack Mount
Networking Interfaces:
(22) 2.5 GbE RJ45 Ports (2.5G/1G/100M/10M)
(2) 10 GbE RJ45 Ports (10G/5G/2.5G/1G/100M)
(4) 10G SFP+ Optical Ports (10G/1G)
PoE Interfaces & Output:
(24) All PoE++ Ports (802.3af/at/bt)
Total Available PoE Budget: 600 W
Max. PoE Wattage per Port: 64 W (802.3bt PoE++)
Performance Metrics:
Switching Capacity: 230 Gbps
Total Non-Blocking Throughput: 115 Gbps
Forwarding Rate: 171.12 Mpps
MAC Address Table Size: 32,000 entries
Packet Buffer Size: 2 MB
Power Method:
(1) Universal AC Input 100–240V AC, 50/60 Hz
(1) USP-RPS DC Backup Input
Power Supply: Internal AC/DC 660W Power Supply
Max. Power Consumption: 60 W (Excluding PoE Output) / 660 W (Full Load with PoE Output)
Display: 1.3" Color Touchscreen LCM
ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV
Enclosure Material: SGCC Industrial Steel
Operating Temperature: -5°C to 40°C (23°F to 104°F)
Operating Humidity: 10% to 90% non-condensing
