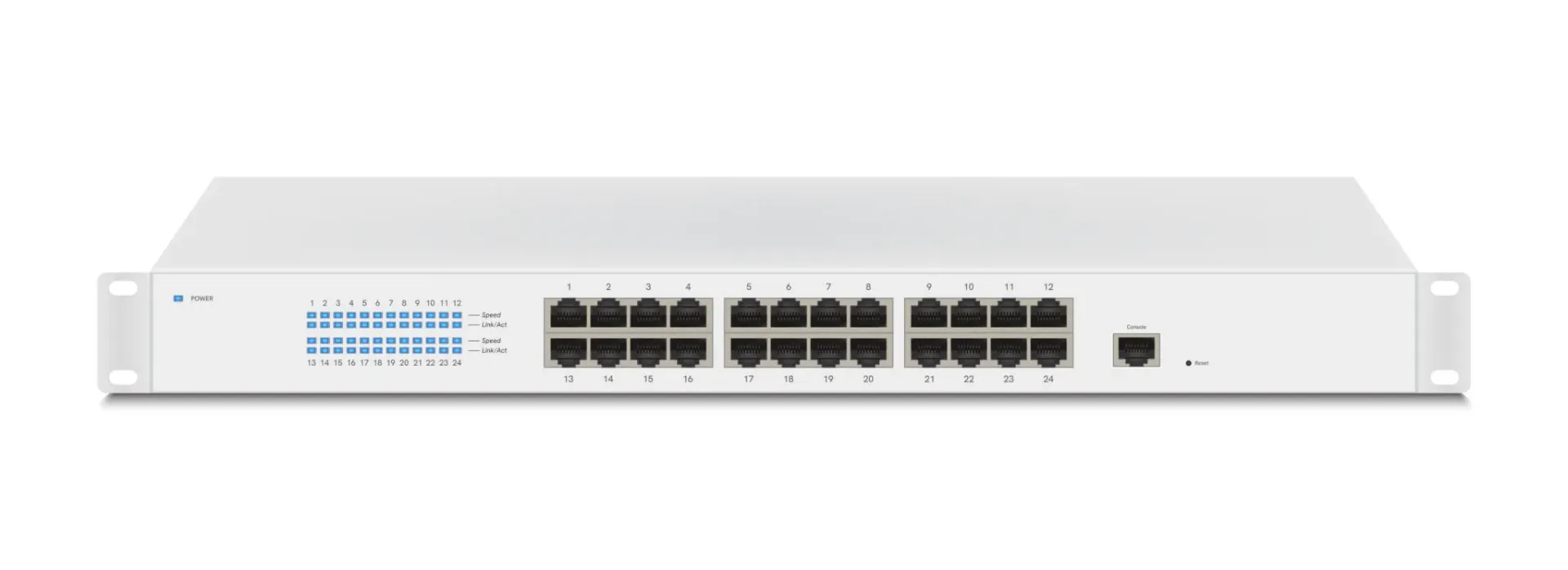

UNIFI SWITCH 24 POE GEN2 USW-PRO-24-POE-EU

The Ubiquiti UniFi Switch Pro Max 24 PoE (Model: USW-Pro-Max-24-PoE) specification description follows:

The Ubiquiti UniFi Switch Pro Max 24 PoE (Model: USW-Pro-Max-24-PoE) is a high-performance Layer 3 managed switch engineered for high-density enterprise, campus, and multi-gigabit access networks. Featuring Ubiquiti's Etherlighting technology for visual port status monitoring and cable management, the switch integrates multi-gigabit RJ45 interfaces with high-capacity Power over Ethernet (PoE+ and PoE++) output alongside high-speed 10G SFP+ uplink ports.

Equipped with 24 total RJ45 ports—including (8) 2.5 GbE PoE++ ports and (16) 1 GbE ports with PoE+ and PoE++ output—the switch delivers a massive 400W total PoE availability. Managed centrally via the UniFi Network Application, it features advanced Layer 3 routing capabilities, a 1.3" LCM color touchscreen display, and a UniFi SmartPower DC input port for uninterrupted power supply redundancy.

Comprehensive Key Features:

• Etherlighting Technology: Patented illuminated ports indicate port location, speed/duplex, native VLAN, and custom network status visually on the front panel.

• Multi-Gigabit Ethernet Ports: Features (8) 2.5 GbE RJ45 ports alongside (16) 1 GbE RJ45 ports to eliminate network bottlenecks for WiFi 6E/7 access points.

• High-Capacity PoE+ / PoE++ Budget: Delivers up to 400W total PoE budget with (8) 802.3bt PoE++ ports (up to 60W per port) and (16) 802.3at PoE+ ports (up to 30W per port).

• 10G SFP+ Optical Uplinks: Equipped with (2) 10G SFP+ ports for high-bandwidth fiber backhaul to core switches or storage servers.

• Enterprise Layer 3 Switching: Supports Inter-VLAN routing, static routing, DHCP server capabilities, and advanced traffic isolation management.

• DC Power Redundancy: Features a UniFi SmartPower RPS DC input connection to protect against internal AC power supply failures.

• Integrated Touchscreen Display: 1.3" LCM color touchscreen provides instant system monitoring, real-time bandwidth usage, and hardware diagnostic reporting.


Extended Technical Specifications:

1. Hardware & Physical Parameters:


• Model / SKU: USW-Pro-Max-24-PoE (UniFi Switch Pro Max 24 PoE)

• Dimensions: 442.4 x 325 x 43.7 mm (17.42 x 12.80 x 1.72")

• Weight: 5.1 kg (11.24 lb) | With Mounting Brackets: 5.2 kg (11.46 lb)

• Enclosure Material: SGCC Steel

• Mount Material: SGCC Steel Rack Mount (1U Rackmount Included)

• Display: 1.3" Color Touchscreen LCM

• Status LEDs: Etherlighting Port Illumination, System Status


1. Wireless, Networking & Performance Parameters:


• Total RJ45 Ports: (8) 2.5 GbE Ports, (16) 1 GbE Ports

• Uplink Interfaces: (2) 10G SFP+ Ports

• PoE Interfaces: (8) 802.3bt PoE++ Ports (Pairs A 1, 2+; 3, 6- / Pairs B 4, 5+; 7, 8-), (16) 802.3at PoE+ Ports

• Max. PoE Wattage per Port: 802.3at (PoE+): 30W | 802.3bt (PoE++): 60W

• Total Available PoE Budget: 400W

• Non-Blocking Throughput: 56 Gbps

• Switching Capacity: 112 Gbps

• Forwarding Rate: 83.328 Mpps

• Management Interface: Ethernet, Bluetooth


1. Electrical & Environmental Parameters:


• Power Method: (1) Universal AC Input 100–240V AC, 6A Max., 50/60 Hz; (1) USP-RPS DC Input 52V DC, 7.7A / 11.5V DC, 2.61A

• Power Supply: Internal AC/DC 450W

• Max. Power Consumption: 50W (excluding PoE output)

• ESD/EMP Protection: Air: ±16 kV, Contact: ±12 kV

• Ambient Operating Temperature: -5 to 40° C (23 to 104° F)

• Ambient Operating Humidity: 10 to 90% noncondensing

• Regulatory Certifications: CE, FCC, IC
