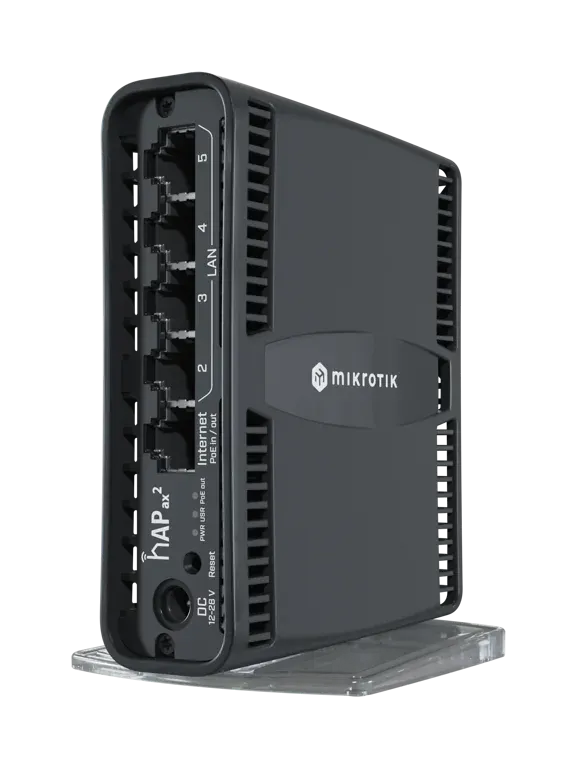

The MikroTik hAP ax² (Model: C52iG-5HaxD2HaxD-TC) brings generation-6 Wi-Fi technology to MikroTik’s flagship hAP series. Designed as an all-in-one main home or branch office gateway, it combines modern ARM 64-bit hardware, high-gain dual-band wireless, and extensive wired networking capabilities into an elegant, matte-black enclosure.
At its core, the hAP ax² is driven by an IPQ-6010 quad-core ARM 64-bit processor operating at 864 MHz, backed by 1 GB RAM and 128 MB NAND storage. This modern hardware setup provides up to 40% higher wireless speeds in the 5 GHz band and up to 90% higher speeds in the 2.4 GHz band compared to previous-generation hAP ac² models. The dual-chain 802.11ax radio architecture supports advanced features including 1024-QAM, WPA3 encryption, and OFDMA for smooth performance in dense client environments.
For wired infrastructure, the router features 5x Gigabit Ethernet RJ45 ports connected to a high-speed Marvell switch chip. Powering options are exceptionally flexible: the device accepts power via a standard DC jack or Passive/802.3af/at PoE-in on Port 1, while Port 5 provides Passive PoE-out to supply power to downstream hardware like IP cameras or secondary access points. Its versatile design allows for vertical desktop placement, horizontal flat laying, or wall mounting using the included multi-position base bracket. Operating on MikroTik RouterOS Level 4, it provides complete administrative control over firewall policies, encrypted VPN gateways, bandwidth queues, and CAPsMAN controller integration.
Comprehensive Key Features
Dual-Band Wi-Fi 6 (802.11ax) Performance: Dual-chain radios deliver combined speeds up to 1775 Mbps (574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz) with WPA3 encryption support.
Quad-Core 864 MHz ARM Processor: Enterprise-grade ARM 64-bit CPU paired with 1 GB RAM effortlessly handles IPsec hardware encryption, containerized applications, and complex routing rules.
5x Gigabit Ethernet Ports: Full Gigabit copper port layout ensuring wire-speed local LAN connectivity without bottlenecking WAN inputs.
PoE-In & PoE-Out Versatility: Accepts 802.3af/at or Passive PoE-in on Port 1 and delivers Passive PoE-out on Port 5 to power remote network hardware.
Multi-Position Enclosure & Base Bracket: Supports vertical desktop standing, flat horizontal orientation, or wall-mount deployment for clean installations.
RouterOS L4 Enterprise Suite: Pre-installed with RouterOS Level 4, offering comprehensive firewall rules, VLAN isolation, traffic queues, and dynamic routing capabilities.
Extended Technical Specifications
1. Hardware & Physical Parameters
Model / SKU: C52iG-5HaxD2HaxD-TC (hAP ax²)
Dimensions: 0.120 m × 0.101 m × 0.037 m (120 × 101 × 37 mm)
Weight: 0.350 kg (350 g)
CPU: IPQ-6010 Quad-Core ARM 64-bit @ 864 MHz
RAM: 1 GB
Storage: 128 MB NAND
Enclosure Material: Black Matte Desktop Plastic Casing (Multi-position base bracket included)
Status LEDs: Power, User LED, 5x Ethernet Port Link/Activity Indicators
2. Wireless, Networking & Performance Parameters
Wireless Standards: 2.4 GHz (802.11b/g/n/ax dual-chain), 5 GHz (802.11a/n/ac/ax dual-chain)
Antenna Gain: 2.4 GHz: 4.5 dBi; 5 GHz: 4 dBi
Max Wireless Data Rate: Up to 574 Mbps (2.4 GHz) + 1201 Mbps (5 GHz)
Ethernet Ports: 5× 10/100/1000 Mbps RJ45 Ports
PoE-In: 802.3af/at or Passive PoE on Port 1 (18 – 28 V DC)
PoE-Out: Passive PoE on Port 5 (Max output up to 600 mA, matches input voltage)
Operating System: MikroTik RouterOS (License Level 4)
Architecture: ARM 64-bit
3. Electrical & Environmental Parameters
Power Method: Direct DC Power Jack (12 – 28 V DC) or PoE-in on Port 1
Included Power Supply: 24 V DC / 1.2 A Power Adapter
Max Power Consumption: 27 W (12 W without attached PoE devices)
Cooling Type: Passive (Fanless)
Operating Temperature: -40°C to 70°C (-40°F to 158°F)
