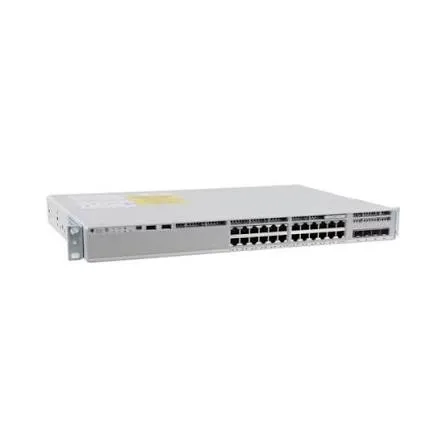

The Cisco Catalyst 9200L Series Switch, Model C9200L-24P-4X-E, extends the power of intent-based networking and Catalyst 9000 hardware and software innovation to enterprise access deployments. Engineered for secure, resilient, and simplified branch and campus access layer operations, this fixed-configuration managed switch features (24) 10/100/1000 Mbps RJ45 PoE+ ports supported by a standard 370W default PoE budget (expandable up to 740W with a secondary power supply unit) delivering up to 30W per port (IEEE 802.3at PoE+) to power high-density endpoints like Wi-Fi 6 wireless access points, high-definition IP cameras, and IP phones. It is equipped with (4) high-speed 10-Gigabit SFP+ optical uplink ports for high-bandwidth backbone integration.
Powered by Cisco’s Unified Access Data Plane (UADP 2.0 Mini) ASIC and running the open, programmable Cisco IOS XE operating system, the C9200L-24P-4X-E delivers non-blocking switching with a switching capacity of 128 Gbps and a forwarding rate of 95.23 Mpps. It supports advanced Layer 3 capabilities, including static routing, OSPF, EIGRP stub, and RIP. It natively supports StackWise-80 stacking technology (up to 80 Gbps stacking bandwidth), allowing multiple switches to be managed as a single logical unit. Bundled with the Network Essentials feature set and a 3-Year Cisco DNA Essentials license, this switch offers foundational automation, monitoring, and security capabilities via Cisco Catalyst Center (formerly Cisco DNA Center).
Key Features & Advanced Capabilities:
High-Density Gigabit PoE+ Delivery (370W Budget): Features (24) PoE+ ports supplying IEEE 802.3at power, ideal for powering IP cameras, VoIP phones, and wireless access points.
10G SFP+ High-Speed Uplinks: Features (4) built-in 10G SFP+ optical slots supporting high-speed 10G fiber transceivers and Direct Attach Copper (DAC) cables for high-capacity backbone integration.
StackWise-80 Architecture: Enables true hardware stacking for up to 8 units with 80 Gbps of stacking bandwidth, providing simplified single-IP management and resilient full-duplex backhaul connectivity.
UADP 2.0 Mini ASIC & Open IOS XE: Advanced hardware architecture offering programmable pipeline capabilities, enterprise Layer 3 features, and robust operational telemetry.
Cisco DNA Essentials Automation & Analytics: Includes a 3-Year Cisco DNA Essentials software subscription enabling centralized management, automated image deployment, and network health monitoring via Cisco Catalyst Center.
Enterprise Security Architecture: Integrated MACsec 128-bit encryption readiness, IEEE 802.1X, AAA with RADIUS/TACACS+, Trust Anchor module, Secure Boot, and protection against unauthorized hardware tampering.
| brand | Cisco |
The Apple MacBook Pro (Retina, 15-inch, Mid 2017 - A1707) delivers exceptional computing power and ultra-fast storage in a sleek, precision-milled aluminum unibody enclosure. Engineered for creative professionals, developers, and power users, it features a stunning 15.4-inch Retina display with LED backlighting, IPS technology, and P3 wide color gamut support, offering remarkable detail and color accuracy for photos and high-resolution video content.
At its core, this configuration is driven by a high-tier Quad-Core 3.1 GHz Intel Core i7 processor (Kaby Lake) with Turbo Boost speeds reaching up to 4.1 GHz. Equipped with dual graphics processing—Radeon Pro discrete graphics alongside integrated Intel HD Graphics 630—it automatically switches between processors to balance performance and battery efficiency. Packed with 16 GB of 2133 MHz LPDDR3 memory and an ultra-fast 1 TB PCIe-based onboard flash storage module, it delivers fluid multitasking and instant file access. The innovative Touch Bar with integrated Touch ID replaces the traditional function keys with dynamic, context-aware controls for maximum productivity.
Comprehensive Key Features:
Pro-Grade Quad-Core Performance: Powered by a 3.1 GHz Quad-Core Intel Core i7 processor (Turbo Boost up to 4.1 GHz) with 8 MB shared L3 cache.
Brilliant Retina Display with P3 Color: 15.4-inch IPS display featuring 500 nits brightness and P3 wide color gamut for true-to-life visual fidelity.
Interactive Touch Bar & Touch ID: Multi-Touch glass strip providing context-sensitive shortcuts alongside quick, secure Touch ID biometric authentication.
Dual Graphics Architecture: Combines discrete Radeon Pro graphics with integrated Intel HD Graphics 630 for efficient graphic rendering and power optimization.
Massive High-Speed Storage: Includes a large 1 TB PCIe-based onboard SSD delivering read/write speeds up to 3.2 GB/s.
Versatile Thunderbolt 3 Connectivity: Four high-speed USB-C / Thunderbolt 3 ports supporting power charging, DisplayPort output, and data transfers up to 40 Gbps.
Expansive Trackpad & Audio: Oversized Force Touch trackpad paired with high-fidelity stereo speakers featuring wide dynamic range and deep bass.
Extended Technical Specifications:
Model / SKU: MacBook Pro (15-inch, Mid 2017) / Model Identifier: MacBookPro14,3 / Model Number: A1707
Processor: 3.1 GHz Quad-Core Intel Core i7 (7700HQ "Kaby Lake", Turbo Boost up to 4.1 GHz) with 8 MB L3 cache
Graphics:
Discrete Graphics: AMD Radeon Pro 560 with 4 GB of GDDR5 memory (or Radeon Pro 555)
Integrated Graphics: Intel HD Graphics 630
Display: 15.4-inch (diagonal) LED-backlit IPS Retina display (2880 x 1800 native resolution at 220 ppi, 500 nits, P3 color)
Memory: 16 GB of 2133 MHz LPDDR3 onboard memory
Storage: 1 TB PCIe-based onboard flash storage
Wireless & Connectivity:
Wi-Fi: 802.11ac Wi-Fi wireless networking; IEEE 802.11a/b/g/n compatible
Bluetooth: Bluetooth 4.2 wireless technology
I/O Ports:
(4) Thunderbolt 3 (USB-C) ports (Supports Charging, DisplayPort, Thunderbolt 40 Gbps, USB 3.1 Gen 2 up to 10 Gbps)
(1) 3.5 mm headphone jack
Audio & Camera:
Stereo speakers with high dynamic range and 3 microphones
720p FaceTime HD camera
Keyboard & Input: Full-size backlit keyboard with Touch Bar and integrated Touch ID sensor; Force Touch trackpad
Battery & Power: Built-in 76.0-watt-hour lithium-polymer battery; 85W USB-C Power Adapter
