The Ubiquiti UniFi Switch Aggregation (Model: USW-Aggregation) specification description follows:

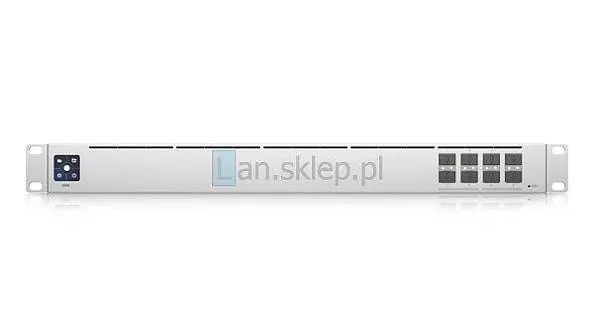

The Ubiquiti UniFi Switch Aggregation (Model: USW-Aggregation) is a compact, managed Layer 2 optical aggregation switch designed to serve as a high-bandwidth central interconnect for enterprise networks, server pools, and distribution switches. Engineered to eliminate network bottlenecks, the switch provides high-speed 10G SFP+ fiber connectivity in a fanless, short-depth 1U rackmount form factor.
Equipped with 8 total 10G SFP+ optical ports, the USW-Aggregation delivers a massive 160 Gbps switching capacity to handle intensive data backhaul, high-density inter-switch links, and storage network traffic. Fully integrated into the UniFi Network Application, it features silent fanless operation, advanced Layer 2 switching protocols, and a 1.3" LCM color touchscreen display for real-time hardware telemetry and diagnostic reporting.
Comprehensive Key Features:
- High-Density 10G Optical Connectivity: Features (8) 10G SFP+ ports to aggregate fiber links from access switches, network-attached storage (NAS), and core infrastructure.
- 160 Gbps Switching Capacity: Delivers 80 Gbps non-blocking line-rate throughput to ensure zero packet loss and low latency across optical backhaul links.
- Silent Fanless Thermal Design: Operates completely silently without internal cooling fans, making it suitable for quiet office racks and desktop installations.
- Compact Short-Depth Enclosure: Features a shallow 4.7" depth for easy installation in space-constrained network racks and wall-mount enclosures.
- Integrated Touchscreen Telemetry: 1.3" LCM color touchscreen display provides instant visual metrics, port status, optical link diagnostics, and real-time usage.
- Broad Transceiver & Module Compatibility: Fully supports 1G SFP and 10G SFP+ optical transceivers, as well as Direct Attach Copper (DAC) and Active Optical Cables (AOC).
- Centralized UniFi Network Management: Managed through the UniFi Network Application for centralized link aggregation (LAG) configuration, port mirroring, 802.1Q VLAN management, and remote firmware updates.
Extended Technical Specifications:
- Hardware & Physical Parameters:
- Model / SKU: USW-Aggregation (UniFi Switch Aggregation)
- Dimensions: 442.4 x 120 x 43.7 mm (17.42 x 4.72 x 1.72")
- Weight: 2.65 kg (5.84 lb) | With Mounting Brackets: 2.74 kg (6.04 lb)
- Enclosure Material: SGCC Steel
- Mount Material: SGCC Steel Rack Mount (1U Rackmount Brackets Included)
- Display: 1.3" Color Touchscreen LCM
- Acoustic Noise Level: 0 dB(A) (Fanless Cooling)
- Wireless, Networking & Performance Parameters:
- Total SFP Ports: (8) 10G SFP+ Ports
- Supported Speeds: 1 Gbps, 10 Gbps
- Non-Blocking Throughput: 80 Gbps
- Switching Capacity: 160 Gbps
- Forwarding Rate: 119.04 Mpps
- Management Interfaces: Ethernet, Bluetooth
- Layer Features: Layer 2 Managed Switching
- Electrical & Environmental Parameters:
- Power Method: Universal AC Input 100–240V AC, 36W Max., 50/60 Hz
- Power Supply: Internal AC/DC 36W Power Supply
- Max. Power Consumption: 30W (excluding SFP transceiver power draw)
- ESD/EMP Protection: Air: ±16 kV, Contact: ±12 kV
- Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
- Ambient Operating Humidity: 10 to 90% noncondensing
- Regulatory Certifications: CE, FCC, IC
| brand | Ubiquiti |
The Apple MacBook Pro (Retina, 15-inch, Mid 2017 - A1707) delivers exceptional computing power and ultra-fast storage in a sleek, precision-milled aluminum unibody enclosure. Engineered for creative professionals, developers, and power users, it features a stunning 15.4-inch Retina display with LED backlighting, IPS technology, and P3 wide color gamut support, offering remarkable detail and color accuracy for photos and high-resolution video content.
At its core, this configuration is driven by a high-tier Quad-Core 3.1 GHz Intel Core i7 processor (Kaby Lake) with Turbo Boost speeds reaching up to 4.1 GHz. Equipped with dual graphics processing—Radeon Pro discrete graphics alongside integrated Intel HD Graphics 630—it automatically switches between processors to balance performance and battery efficiency. Packed with 16 GB of 2133 MHz LPDDR3 memory and an ultra-fast 1 TB PCIe-based onboard flash storage module, it delivers fluid multitasking and instant file access. The innovative Touch Bar with integrated Touch ID replaces the traditional function keys with dynamic, context-aware controls for maximum productivity.
Comprehensive Key Features:
Pro-Grade Quad-Core Performance: Powered by a 3.1 GHz Quad-Core Intel Core i7 processor (Turbo Boost up to 4.1 GHz) with 8 MB shared L3 cache.
Brilliant Retina Display with P3 Color: 15.4-inch IPS display featuring 500 nits brightness and P3 wide color gamut for true-to-life visual fidelity.
Interactive Touch Bar & Touch ID: Multi-Touch glass strip providing context-sensitive shortcuts alongside quick, secure Touch ID biometric authentication.
Dual Graphics Architecture: Combines discrete Radeon Pro graphics with integrated Intel HD Graphics 630 for efficient graphic rendering and power optimization.
Massive High-Speed Storage: Includes a large 1 TB PCIe-based onboard SSD delivering read/write speeds up to 3.2 GB/s.
Versatile Thunderbolt 3 Connectivity: Four high-speed USB-C / Thunderbolt 3 ports supporting power charging, DisplayPort output, and data transfers up to 40 Gbps.
Expansive Trackpad & Audio: Oversized Force Touch trackpad paired with high-fidelity stereo speakers featuring wide dynamic range and deep bass.
Extended Technical Specifications:
Model / SKU: MacBook Pro (15-inch, Mid 2017) / Model Identifier: MacBookPro14,3 / Model Number: A1707
Processor: 3.1 GHz Quad-Core Intel Core i7 (7700HQ "Kaby Lake", Turbo Boost up to 4.1 GHz) with 8 MB L3 cache
Graphics:
Discrete Graphics: AMD Radeon Pro 560 with 4 GB of GDDR5 memory (or Radeon Pro 555)
Integrated Graphics: Intel HD Graphics 630
Display: 15.4-inch (diagonal) LED-backlit IPS Retina display (2880 x 1800 native resolution at 220 ppi, 500 nits, P3 color)
Memory: 16 GB of 2133 MHz LPDDR3 onboard memory
Storage: 1 TB PCIe-based onboard flash storage
Wireless & Connectivity:
Wi-Fi: 802.11ac Wi-Fi wireless networking; IEEE 802.11a/b/g/n compatible
Bluetooth: Bluetooth 4.2 wireless technology
I/O Ports:
(4) Thunderbolt 3 (USB-C) ports (Supports Charging, DisplayPort, Thunderbolt 40 Gbps, USB 3.1 Gen 2 up to 10 Gbps)
(1) 3.5 mm headphone jack
Audio & Camera:
Stereo speakers with high dynamic range and 3 microphones
720p FaceTime HD camera
Keyboard & Input: Full-size backlit keyboard with Touch Bar and integrated Touch ID sensor; Force Touch trackpad
Battery & Power: Built-in 76.0-watt-hour lithium-polymer battery; 85W USB-C Power Adapter
