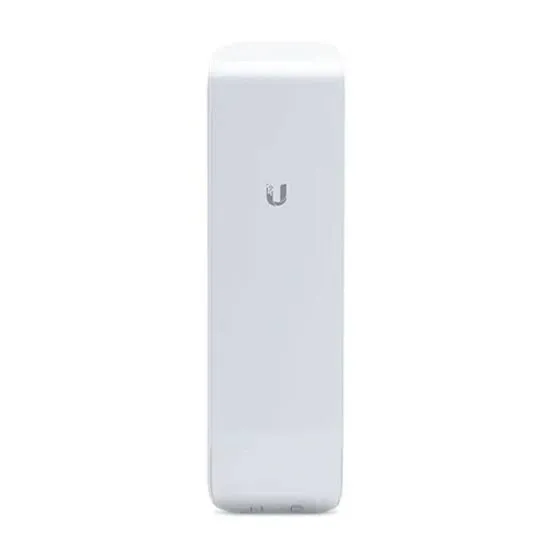

UBIQUITI NSM5 NANOSTATION M5

The Ubiquiti NanoStation M5 (Model: NSM5) specification description follows:

The Ubiquiti NanoStation M5 (Model: NSM5) is a high-performance, weather-resistant 5 GHz Wireless CPE (Customer Premises Equipment) and Point-to-Point / Point-to-MultiPoint (PtP / PtMP) bridge designed for long-range broadband networking. Incorporating Ubiquiti’s airMAX TDMA protocol alongside an integrated high-gain dual-polarization panel antenna, the device delivers reliable high-throughput wireless links across extended outdoor distances.

Equipped with dual 10/100 Mbps Ethernet ports with software-configurable 24V Passive PoE output pass-through on the secondary port, the NSM5 allows seamless integration of secondary devices such as IP security cameras. Managed centrally via airOS, it provides comprehensive wireless configuration options, real-time link diagnostics, advanced networking tools, and durable weatherproof housing for demanding outdoor site installations.

Comprehensive Key Features:

• High-Gain Integrated Antenna: Features a built-in 16 dBi dual-polarization panel antenna operating in the 5 GHz frequency band for high-directivity long-distance links.

• proprietary airMAX TDMA Protocol: Utilizes airMAX Time Division Multiple Access to eliminate hidden node collisions and maximize airtime efficiency, throughput, and network scalability.

• Dual Ethernet Connectivity with PoE Pass-Through: Features (2) 10/100 Mbps Ethernet ports with software-enabled 24V Passive PoE pass-through on Port 2 to power secondary equipment.

• Long-Range Point-to-Point / PtMP Operation: Engineered for high-speed long-distance wireless bridging, wireless ISP (WISP) subscriber connections, and remote video backhaul.

• Rugged Weatherproof Enclosure: UV-stabilized outdoor plastic housing built to withstand severe environmental weather conditions, extreme temperatures, and wind-driven rain.

• Advanced airOS Operating System: Powered by airOS, providing comprehensive traffic shaping, airView real-time spectrum analysis, channel width selection, and link alignment metrics.

• Versatile Pole Mount Architecture: Includes integrated mounting straps and hardware for fast pole attachment and directional alignment.


Extended Technical Specifications:

1. Hardware & Physical Parameters:


• Model / SKU: NSM5 (NanoStation M5)

• Dimensions: 294 x 80 x 31 mm (11.57 x 3.15 x 1.22")

• Weight: 400 g (0.88 lb)

• Enclosure Material: Outdoor UV Stabilized Plastic

• Mounting: Pole Mounting (Kit Included)

• Status LEDs: Power, LAN1, LAN2, (4) Signal Strength LEDs

• System Memory: 32 MB SDRAM, 8 MB Flash


1. Wireless, Networking & Performance Parameters:


• Operating Frequency: 5170–5875 MHz (Region Dependent)

• Gain: 16 dBi

• Antenna Polarization: Dual-Linear (Horizontal and Vertical)

• Cross-Pol Isolation: 20 dB Minimum

• Beamwidth: 43° (Horizontal) / 43° (Vertical) / 41° (Elevation)

• Networking Interfaces: (2) 10/100 Mbps RJ45 Ethernet Ports

• Maximum TX Power: 27 dBm

• Maximum Throughput: 150+ Mbps Real TCP/IP Throughput

• Management Interface: airOS Local Web UI, UISP Software Platform


1. Electrical & Environmental Parameters:


• Power Method: 24V, 0.5A Passive PoE (Pairs 4, 5+; 7, 8- Return)

• Power Supply: 24V, 0.5A PoE Adapter (Included)

• Max. Power Consumption: 8W

• Supported Voltage Range: 16 to 24V DC

• ESD/EMP Protection: Air: ±24 kV, Contact: ±24 kV

• Ambient Operating Temperature: -30 to 75° C (-22 to 167° F)

• Ambient Operating Humidity: 5 to 95% noncondensing

• Regulatory Certifications: CE, FCC, IC
