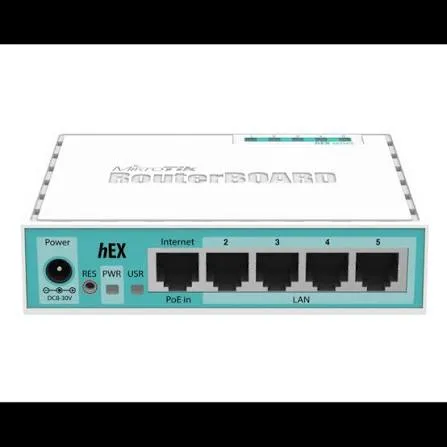

The MikroTik hEX (Model: RB750Gr3) is an affordable, ultra-compact desktop router designed for small office, home office (SOHO), and managed wired network environments. Driven by a dual-core MediaTek MT7621A processor running at 880 MHz with 4 CPU threads and 256 MB RAM, this router easily handles demanding packet filtering, dynamic routing policies, and bandwidth management queues.
Equipped with 5x Gigabit Ethernet ports, the RB750Gr3 stands out with dedicated IPsec hardware acceleration, capable of reaching hardware-encrypted throughputs of up to ~470 Mbps. Furthermore, it includes a full-size USB 2.0 port alongside an onboard microSD slot to enhance read/write speeds for database storage or running local utility packages like The Dude server.
Comprehensive Key Features
Dual-Core Processing with IPsec Hardware Engine: Powered by an MT7621A 880 MHz dual-core CPU with IPsec hardware encryption support for secure, high-speed VPN tunnels.
Full Gigabit Connectivity: Includes 5x 10/100/1000 Mbps RJ45 ports providing uncompromised wired line-rate performance.
MicroSD & USB Expansion: Features an integrated microSD card slot and a full-size USB Type-A port for external storage or cellular 3G/4G modem attachments.
Passive PoE-In Functionality: Supports Passive PoE input (8–30V DC) on Port 1 for clean single-cable network deployments.
RouterOS L4 Enterprise Suite: Operating on RouterOS Level 4, granting full control over network segmentation, firewall rules, user access management, and VPN protocols.
Ultra-Compact Desktop Chassis: Durable white plastic casing designed for silent, low-profile operation in any environment.
Extended Technical Specifications
1. Hardware & Physical Parameters
Model / SKU: RB750Gr3 (hEX)
Dimensions: 0.113 m × 0.089 m × 0.028 m (113 × 89 × 28 mm)
Weight: 0.280 kg (280 g)
CPU: Dual-Core MT7621A @ 880 MHz (4 Threads)
RAM: 256 MB DDR3
Storage: 16 MB Flash + MicroSD Slot
Enclosure Material: Durable Desktop Plastic Casing
Status LEDs: Power, User LED, Ethernet Port Status Indicators
2. Wireless, Networking & Performance Parameters
Ethernet Ports: 5× 10/100/1000 Mbps RJ45 Ports
USB Interface: 1× USB 2.0 Type-A
Memory Card Slot: 1× MicroSD Slot
IPsec Hardware Acceleration: Supported (~470 Mbps throughput)
Operating System: MikroTik RouterOS (License Level 4)
3. Electrical & Environmental Parameters
Power Method: DC Power Jack (8 – 30V DC) or Passive PoE-In on Port 1 (8 – 30V DC)
Included Power Supply: 24V DC / 0.38A Power Adapter
Max Power Consumption: 10 W (5 W without attachments)
Cooling Type: Passive / Fanless
Operating Temperature: -40°C to 60°C (-40°F to 140°F)
| brand | Mikrotik |
The Apple MacBook Pro (Retina, 15-inch, Mid 2017 - A1707) delivers exceptional computing power and ultra-fast storage in a sleek, precision-milled aluminum unibody enclosure. Engineered for creative professionals, developers, and power users, it features a stunning 15.4-inch Retina display with LED backlighting, IPS technology, and P3 wide color gamut support, offering remarkable detail and color accuracy for photos and high-resolution video content.
At its core, this configuration is driven by a high-tier Quad-Core 3.1 GHz Intel Core i7 processor (Kaby Lake) with Turbo Boost speeds reaching up to 4.1 GHz. Equipped with dual graphics processing—Radeon Pro discrete graphics alongside integrated Intel HD Graphics 630—it automatically switches between processors to balance performance and battery efficiency. Packed with 16 GB of 2133 MHz LPDDR3 memory and an ultra-fast 1 TB PCIe-based onboard flash storage module, it delivers fluid multitasking and instant file access. The innovative Touch Bar with integrated Touch ID replaces the traditional function keys with dynamic, context-aware controls for maximum productivity.
Comprehensive Key Features:
Pro-Grade Quad-Core Performance: Powered by a 3.1 GHz Quad-Core Intel Core i7 processor (Turbo Boost up to 4.1 GHz) with 8 MB shared L3 cache.
Brilliant Retina Display with P3 Color: 15.4-inch IPS display featuring 500 nits brightness and P3 wide color gamut for true-to-life visual fidelity.
Interactive Touch Bar & Touch ID: Multi-Touch glass strip providing context-sensitive shortcuts alongside quick, secure Touch ID biometric authentication.
Dual Graphics Architecture: Combines discrete Radeon Pro graphics with integrated Intel HD Graphics 630 for efficient graphic rendering and power optimization.
Massive High-Speed Storage: Includes a large 1 TB PCIe-based onboard SSD delivering read/write speeds up to 3.2 GB/s.
Versatile Thunderbolt 3 Connectivity: Four high-speed USB-C / Thunderbolt 3 ports supporting power charging, DisplayPort output, and data transfers up to 40 Gbps.
Expansive Trackpad & Audio: Oversized Force Touch trackpad paired with high-fidelity stereo speakers featuring wide dynamic range and deep bass.
Extended Technical Specifications:
Model / SKU: MacBook Pro (15-inch, Mid 2017) / Model Identifier: MacBookPro14,3 / Model Number: A1707
Processor: 3.1 GHz Quad-Core Intel Core i7 (7700HQ "Kaby Lake", Turbo Boost up to 4.1 GHz) with 8 MB L3 cache
Graphics:
Discrete Graphics: AMD Radeon Pro 560 with 4 GB of GDDR5 memory (or Radeon Pro 555)
Integrated Graphics: Intel HD Graphics 630
Display: 15.4-inch (diagonal) LED-backlit IPS Retina display (2880 x 1800 native resolution at 220 ppi, 500 nits, P3 color)
Memory: 16 GB of 2133 MHz LPDDR3 onboard memory
Storage: 1 TB PCIe-based onboard flash storage
Wireless & Connectivity:
Wi-Fi: 802.11ac Wi-Fi wireless networking; IEEE 802.11a/b/g/n compatible
Bluetooth: Bluetooth 4.2 wireless technology
I/O Ports:
(4) Thunderbolt 3 (USB-C) ports (Supports Charging, DisplayPort, Thunderbolt 40 Gbps, USB 3.1 Gen 2 up to 10 Gbps)
(1) 3.5 mm headphone jack
Audio & Camera:
Stereo speakers with high dynamic range and 3 microphones
720p FaceTime HD camera
Keyboard & Input: Full-size backlit keyboard with Touch Bar and integrated Touch ID sensor; Force Touch trackpad
Battery & Power: Built-in 76.0-watt-hour lithium-polymer battery; 85W USB-C Power Adapter
