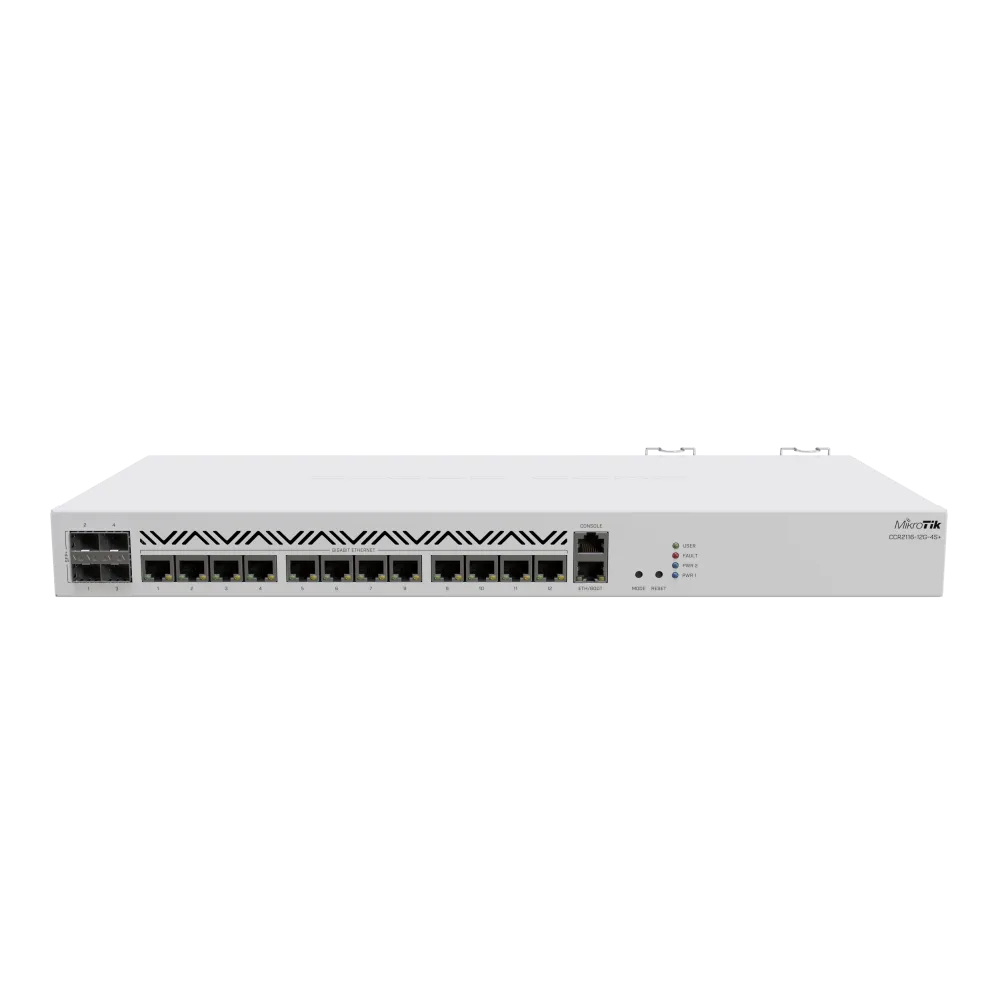

The MikroTik CCR2116-12G-4S+ is a flagship 1U rackmount core router engineered to eliminate performance bottlenecks in modern high-speed enterprise networks, telecommunication providers, and heavy-traffic server environments. Powered by an enterprise 16-core Amazon Annapurna Labs Alpine AL73400 ARM Cortex-A72 processor operating at 2.0 GHz and paired with 16 GB DDR4 RAM, this router sets a new benchmark for single-core execution speed and multi-core parallel routing capacity.
Designed with advanced hardware offloading capabilities, the CCR2116-12G-4S+ features 12x Gigabit Ethernet RJ45 ports divided into state-of-the-art Marvell Aldrin switch chips, along with 4x 10G SFP+ cages for high-bandwidth optical uplinks. To ensure uninterrupted network stability in mission-critical environments, the router integrates dual hot-swappable AC power supplies and dynamic active cooling inside a heavy-duty 1U steel chassis.
Comprehensive Key Features
16-Core Enterprise Processing: Driven by an Annapurna Labs AL73400 16-core ARM 64-bit CPU @ 2.0 GHz with 16 GB DDR4 RAM for ultra-fast BGP routing, dynamic queues, and firewall processing.
10G Optical Backhaul Connectivity: Equipped with 4x 10G SFP+ cages providing high-density fiber uplinks and high-speed inter-switch connectivity.
12x Dedicated Gigabit Copper Ports: Includes 12x 10/100/1000 Mbps RJ45 ports with direct switch-chip interconnection to maximize throughput and minimize latency.
M.2 PCIe Storage Slot: Features an integrated M.2 PCIe slot supporting high-speed NVMe SSDs for local logging, container hosting, and data storage.
Dual Redundant Hot-Swappable Power Supplies: Equipped with dual internal AC power supplies allowing live swap capability to guarantee zero downtime during power supply failures.
RouterOS L6 Enterprise License: Pre-installed with RouterOS v7 (Level 6), supporting complex BGP setups, MPLS, advanced IPsec hardware acceleration, VPN gateways, and traffic shaping.
Extended Technical Specifications
1. Hardware & Physical Parameters
Model / SKU: CCR2116-12G-4S+
Dimensions: 0.443 m × 0.199 m × 0.044 m (443 × 199 × 44 mm)
Weight: 2.830 kg
CPU: Annapurna Labs AL73400 16-Core ARM 64-bit @ 2.0 GHz
RAM: 16 GB DDR4
Storage: 128 MB NAND + M.2 PCIe NVMe Slot
Enclosure Material: 1U Rackmount Heavy-Duty Steel Casing
Status LEDs: Power 1, Power 2, User LED, Port Link/Activity Indicators
2. Wireless, Networking & Performance Parameters
Ethernet Ports: 12× 10/100/1000 Mbps RJ45 Ports
SFP+ Cages: 4× 10 Gbps SFP+ Ports
Console Port: 1× RJ45 Serial Console Port
Operating System: MikroTik RouterOS v7 (License Level 6)
Architecture: ARM 64-bit
3. Electrical & Environmental Parameters
Power Method: Dual Internal Redundant Power Supplies (100–240 V AC)
Max Power Consumption: 83 W (60 W without attachments)
Cooling Type: Active Cooling (4x redundant temperature-controlled fans)
Operating Temperature: -20°C to 60°C (-4°F to 140°F)
| brand | Mikrotik |
The Apple MacBook Pro (Retina, 15-inch, Mid 2017 - A1707) delivers exceptional computing power and ultra-fast storage in a sleek, precision-milled aluminum unibody enclosure. Engineered for creative professionals, developers, and power users, it features a stunning 15.4-inch Retina display with LED backlighting, IPS technology, and P3 wide color gamut support, offering remarkable detail and color accuracy for photos and high-resolution video content.
At its core, this configuration is driven by a high-tier Quad-Core 3.1 GHz Intel Core i7 processor (Kaby Lake) with Turbo Boost speeds reaching up to 4.1 GHz. Equipped with dual graphics processing—Radeon Pro discrete graphics alongside integrated Intel HD Graphics 630—it automatically switches between processors to balance performance and battery efficiency. Packed with 16 GB of 2133 MHz LPDDR3 memory and an ultra-fast 1 TB PCIe-based onboard flash storage module, it delivers fluid multitasking and instant file access. The innovative Touch Bar with integrated Touch ID replaces the traditional function keys with dynamic, context-aware controls for maximum productivity.
Comprehensive Key Features:
Pro-Grade Quad-Core Performance: Powered by a 3.1 GHz Quad-Core Intel Core i7 processor (Turbo Boost up to 4.1 GHz) with 8 MB shared L3 cache.
Brilliant Retina Display with P3 Color: 15.4-inch IPS display featuring 500 nits brightness and P3 wide color gamut for true-to-life visual fidelity.
Interactive Touch Bar & Touch ID: Multi-Touch glass strip providing context-sensitive shortcuts alongside quick, secure Touch ID biometric authentication.
Dual Graphics Architecture: Combines discrete Radeon Pro graphics with integrated Intel HD Graphics 630 for efficient graphic rendering and power optimization.
Massive High-Speed Storage: Includes a large 1 TB PCIe-based onboard SSD delivering read/write speeds up to 3.2 GB/s.
Versatile Thunderbolt 3 Connectivity: Four high-speed USB-C / Thunderbolt 3 ports supporting power charging, DisplayPort output, and data transfers up to 40 Gbps.
Expansive Trackpad & Audio: Oversized Force Touch trackpad paired with high-fidelity stereo speakers featuring wide dynamic range and deep bass.
Extended Technical Specifications:
Model / SKU: MacBook Pro (15-inch, Mid 2017) / Model Identifier: MacBookPro14,3 / Model Number: A1707
Processor: 3.1 GHz Quad-Core Intel Core i7 (7700HQ "Kaby Lake", Turbo Boost up to 4.1 GHz) with 8 MB L3 cache
Graphics:
Discrete Graphics: AMD Radeon Pro 560 with 4 GB of GDDR5 memory (or Radeon Pro 555)
Integrated Graphics: Intel HD Graphics 630
Display: 15.4-inch (diagonal) LED-backlit IPS Retina display (2880 x 1800 native resolution at 220 ppi, 500 nits, P3 color)
Memory: 16 GB of 2133 MHz LPDDR3 onboard memory
Storage: 1 TB PCIe-based onboard flash storage
Wireless & Connectivity:
Wi-Fi: 802.11ac Wi-Fi wireless networking; IEEE 802.11a/b/g/n compatible
Bluetooth: Bluetooth 4.2 wireless technology
I/O Ports:
(4) Thunderbolt 3 (USB-C) ports (Supports Charging, DisplayPort, Thunderbolt 40 Gbps, USB 3.1 Gen 2 up to 10 Gbps)
(1) 3.5 mm headphone jack
Audio & Camera:
Stereo speakers with high dynamic range and 3 microphones
720p FaceTime HD camera
Keyboard & Input: Full-size backlit keyboard with Touch Bar and integrated Touch ID sensor; Force Touch trackpad
Battery & Power: Built-in 76.0-watt-hour lithium-polymer battery; 85W USB-C Power Adapter
