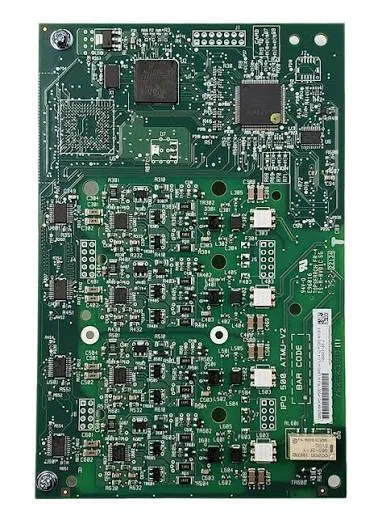

The Avaya IP Office IP500 Analog Trunk 4 Daughter Card V2 (Material Code: 700514262) is a specialized daughterboard designed to expand physical analog trunk connectivity on Avaya IP Office systems. Engineered to attach directly onto an IP500 base card—such as the Digital Station Base Card, Analog Phone Base Card, or VCM Card—without occupying an additional primary chassis slot, this V2 iteration delivers upgraded hardware circuitry, improved line impedance matching, and enhanced lightning/surge protection.
Providing 4 physical RJ45 ports for terminating loop-start analog Central Office (CO) PSTN lines, the ATM4U V2 card supports automatic line matching, DTMF signaling, and multi-format Caller ID detection (FSK and DTMF). To ensure continuous emergency communication during site power outages, port 1 of the card provides a power fail transfer (PFT) relay path when connected to an Analog Phone Base Card, automatically switching line 1 to an analog extension.
Comprehensive Key Features:
4-Port Analog CO Trunk Expansion: Adds 4 loop-start analog PSTN lines directly to an IP500 V2 / V2A system.
Daughter Card Architecture: Mounts onto IP500 base cards (Digital Station, Analog Phone, VCM) to conserve main system slots.
Built-In Caller ID & DTMF: Full hardware support for FSK and DTMF Caller ID formats and tone signaling on all 4 lines.
Power Fail Transfer (PFT) Support: Port 1 acts as a emergency lifeline relay during power outages when paired with an analog phone card.
Upgraded V2 Circuitry: Features improved electrical surge protection, thermal dissipation, and automatic line impedance matching.
Seamless Avaya IP Office Integration: Recognized automatically by IP Office core software for simplified trunk programming and routing.
Extended Technical Specifications:
Manufacturer / Brand: Avaya Inc.
Part Number / SKU: 700514262 (IPO IP500 TRNK ANLG 4U V2 / ATM4U V2)
Form Factor: Internal Daughterboard (Attaches to IP500 Base Cards)
Trunk Ports: (4) Analog Loop-Start CO Trunk Ports (RJ45 Interfaces)
Caller ID Support: FSK and DTMF Signal Decoding
Power Fail Ports: 1 Power Fail Line (Port 1)
Maximum Per Chassis: Up to 4 Daughter Cards (Maximum 16 Analog CO Lines per IP500 Control Unit)
Compatibility:
Avaya IP Office IP500 V2 / IP500 V2A Control Units
Compatible Base Cards: IP500 Digital Station, IP500 Analog Phone, IP500 VCM 32/64
Minimum Software Requirement: Avaya IP Office Core Software Release 10.1 or higher
| brand | Avaya |
The Apple MacBook Pro (Retina, 15-inch, Mid 2017 - A1707) delivers exceptional computing power and ultra-fast storage in a sleek, precision-milled aluminum unibody enclosure. Engineered for creative professionals, developers, and power users, it features a stunning 15.4-inch Retina display with LED backlighting, IPS technology, and P3 wide color gamut support, offering remarkable detail and color accuracy for photos and high-resolution video content.
At its core, this configuration is driven by a high-tier Quad-Core 3.1 GHz Intel Core i7 processor (Kaby Lake) with Turbo Boost speeds reaching up to 4.1 GHz. Equipped with dual graphics processing—Radeon Pro discrete graphics alongside integrated Intel HD Graphics 630—it automatically switches between processors to balance performance and battery efficiency. Packed with 16 GB of 2133 MHz LPDDR3 memory and an ultra-fast 1 TB PCIe-based onboard flash storage module, it delivers fluid multitasking and instant file access. The innovative Touch Bar with integrated Touch ID replaces the traditional function keys with dynamic, context-aware controls for maximum productivity.
Comprehensive Key Features:
Pro-Grade Quad-Core Performance: Powered by a 3.1 GHz Quad-Core Intel Core i7 processor (Turbo Boost up to 4.1 GHz) with 8 MB shared L3 cache.
Brilliant Retina Display with P3 Color: 15.4-inch IPS display featuring 500 nits brightness and P3 wide color gamut for true-to-life visual fidelity.
Interactive Touch Bar & Touch ID: Multi-Touch glass strip providing context-sensitive shortcuts alongside quick, secure Touch ID biometric authentication.
Dual Graphics Architecture: Combines discrete Radeon Pro graphics with integrated Intel HD Graphics 630 for efficient graphic rendering and power optimization.
Massive High-Speed Storage: Includes a large 1 TB PCIe-based onboard SSD delivering read/write speeds up to 3.2 GB/s.
Versatile Thunderbolt 3 Connectivity: Four high-speed USB-C / Thunderbolt 3 ports supporting power charging, DisplayPort output, and data transfers up to 40 Gbps.
Expansive Trackpad & Audio: Oversized Force Touch trackpad paired with high-fidelity stereo speakers featuring wide dynamic range and deep bass.
Extended Technical Specifications:
Model / SKU: MacBook Pro (15-inch, Mid 2017) / Model Identifier: MacBookPro14,3 / Model Number: A1707
Processor: 3.1 GHz Quad-Core Intel Core i7 (7700HQ "Kaby Lake", Turbo Boost up to 4.1 GHz) with 8 MB L3 cache
Graphics:
Discrete Graphics: AMD Radeon Pro 560 with 4 GB of GDDR5 memory (or Radeon Pro 555)
Integrated Graphics: Intel HD Graphics 630
Display: 15.4-inch (diagonal) LED-backlit IPS Retina display (2880 x 1800 native resolution at 220 ppi, 500 nits, P3 color)
Memory: 16 GB of 2133 MHz LPDDR3 onboard memory
Storage: 1 TB PCIe-based onboard flash storage
Wireless & Connectivity:
Wi-Fi: 802.11ac Wi-Fi wireless networking; IEEE 802.11a/b/g/n compatible
Bluetooth: Bluetooth 4.2 wireless technology
I/O Ports:
(4) Thunderbolt 3 (USB-C) ports (Supports Charging, DisplayPort, Thunderbolt 40 Gbps, USB 3.1 Gen 2 up to 10 Gbps)
(1) 3.5 mm headphone jack
Audio & Camera:
Stereo speakers with high dynamic range and 3 microphones
720p FaceTime HD camera
Keyboard & Input: Full-size backlit keyboard with Touch Bar and integrated Touch ID sensor; Force Touch trackpad
Battery & Power: Built-in 76.0-watt-hour lithium-polymer battery; 85W USB-C Power Adapter
